This listing is for a Kristel 32" LCD Display Panel. We think this is for a WMS Gaming slot machine, but obviously could be used in many other products

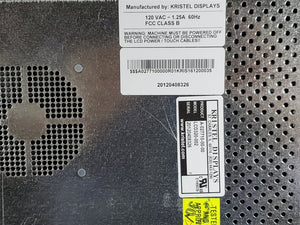

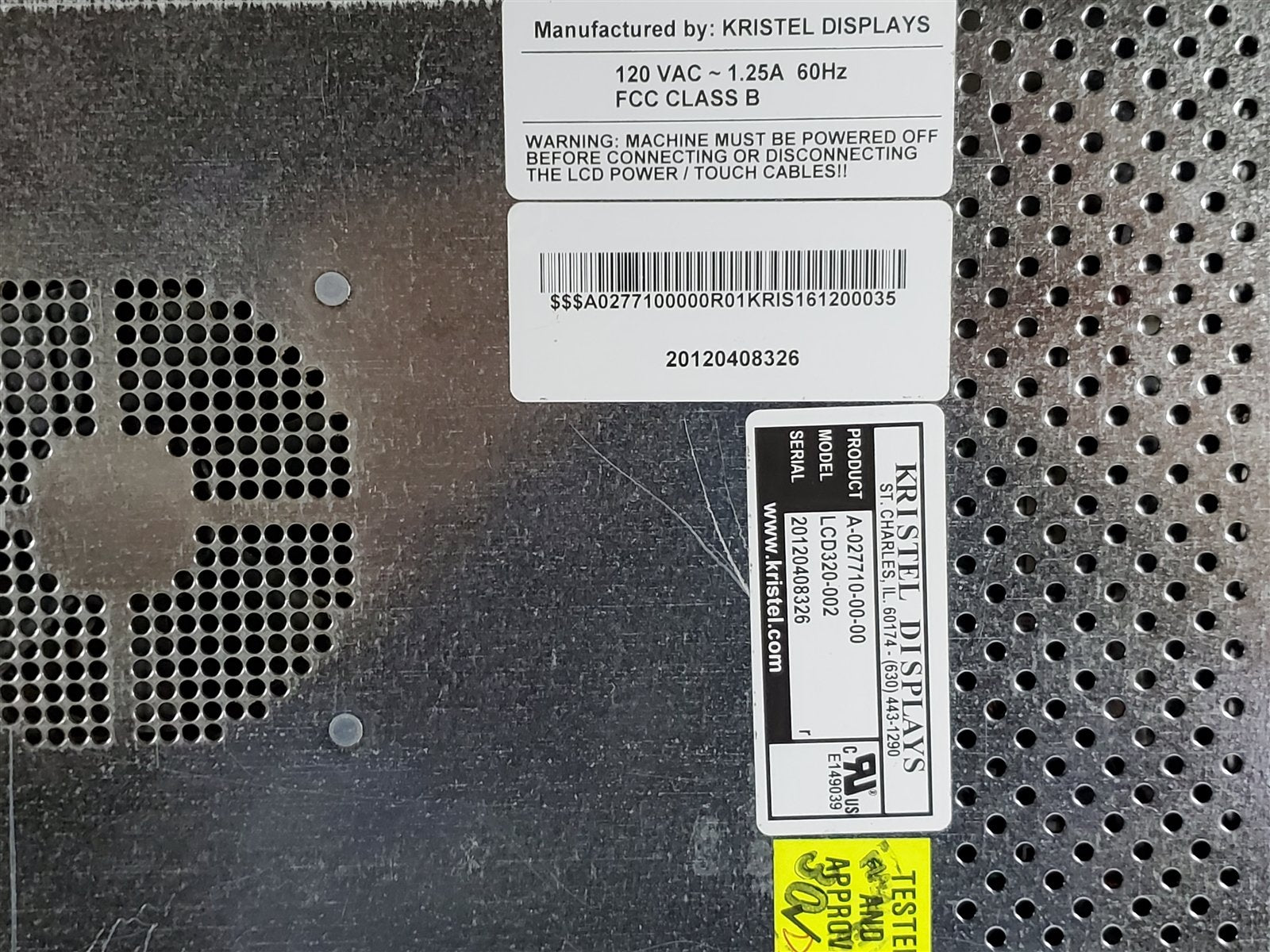

Kristel Part Number: LCD320-002
Possible WMS part numbers: A-027710-00-00, A-1101569
Component part numbers:

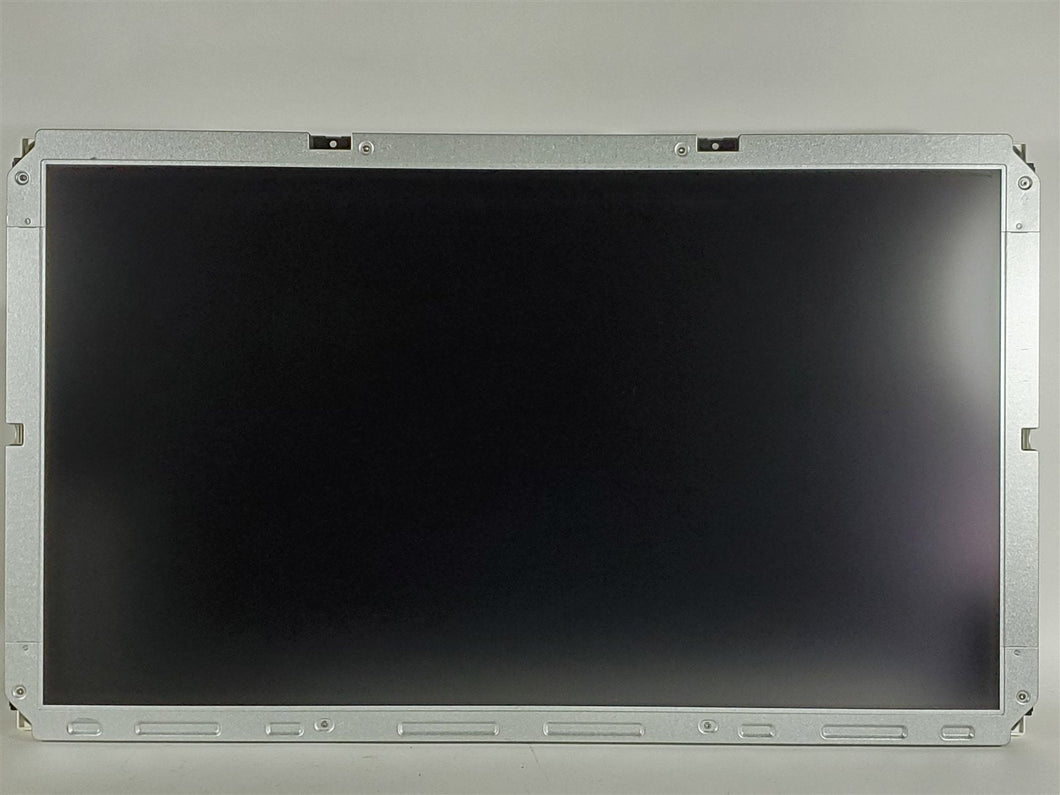

Samsung LCD Panel: LTI320AA02, LTF320AP03
LTE Power Supply: LTE200F-T421(01)
Kristel Controller Board: K11100122199, 5766-BG22-JL01, A22LA/28F9, 70022196
Specifications:

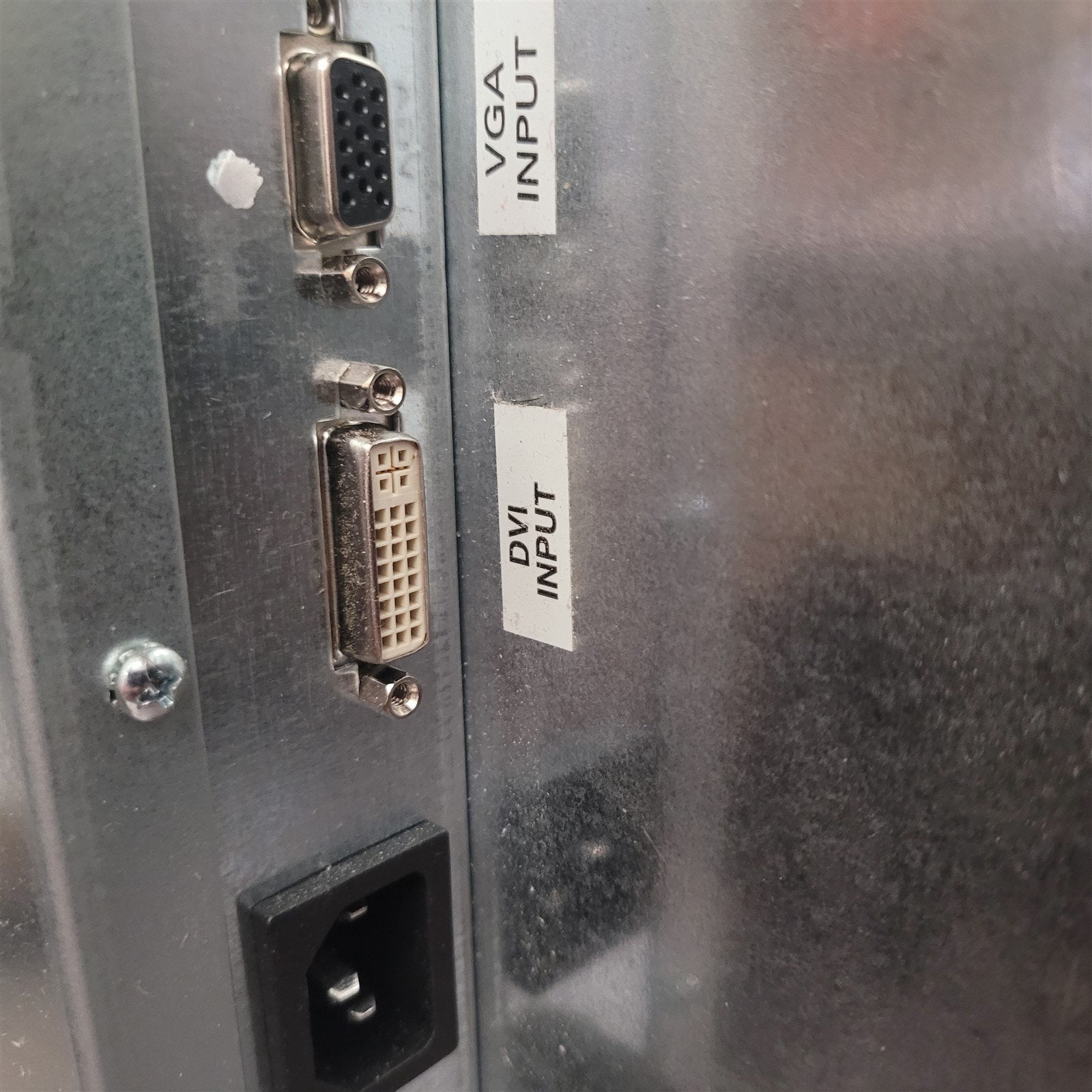

Inputs: VGA and DVI-D
Resolution: 1366 x 768 (WXGA)
Contrast Ratio: 3500:1
Collors: 16.7 Million
Measurements:

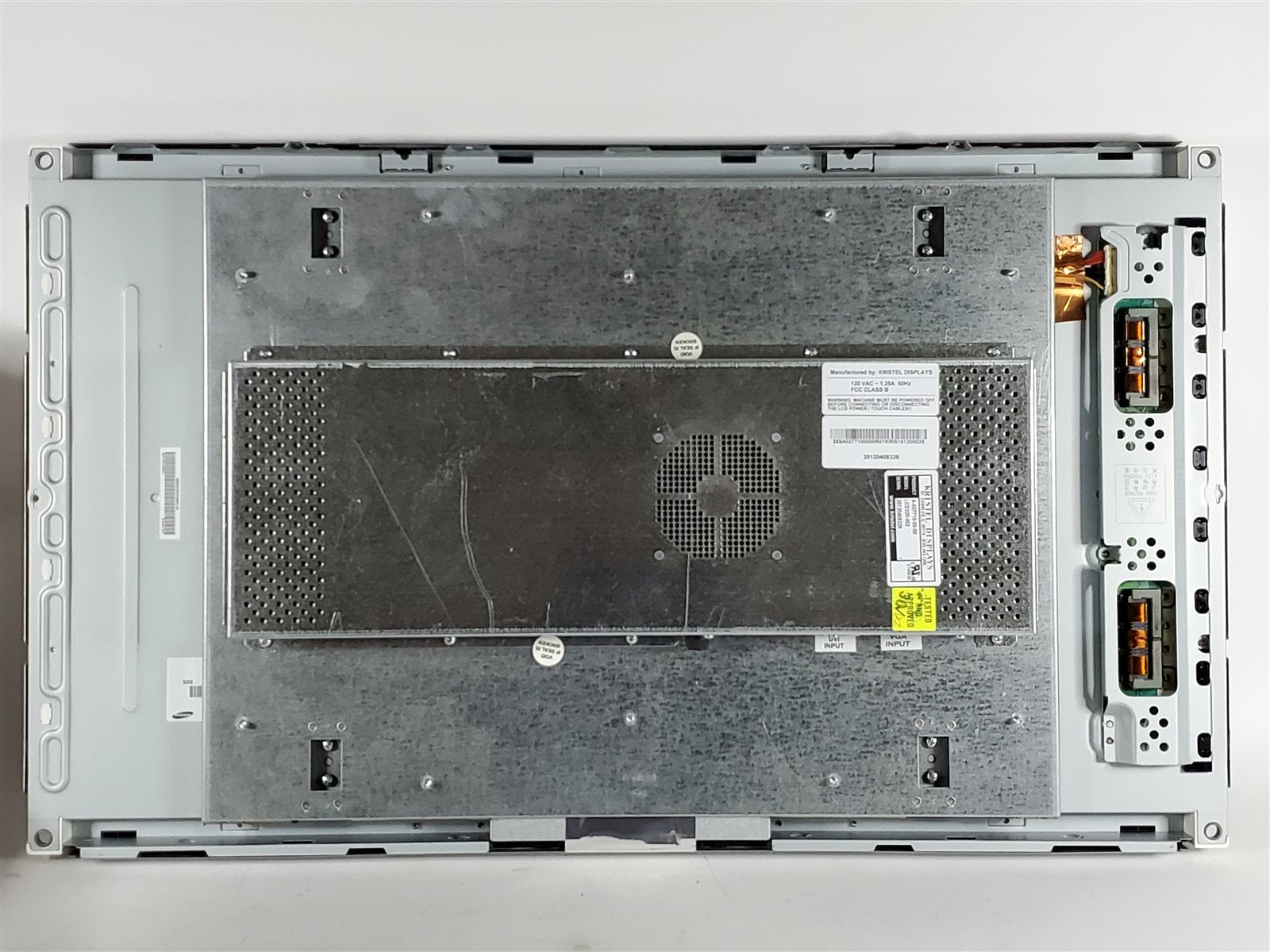

The overall unit measures 30" wide and 17-3/4" tall, approximately 4" thick
Four corner mounting holes are 29" apart, measured horizontally, center-to-center
Four corner mounting holes are 16-3/4" apart, measured vertically, center-to-center
The left and right sides also have mounting holes in the middle, 8-7/8" from top and bottom edges
The bottom has two mounting holes 9-1/4" from the left and right edges and are 11-3/8" apart, measured center-to-center

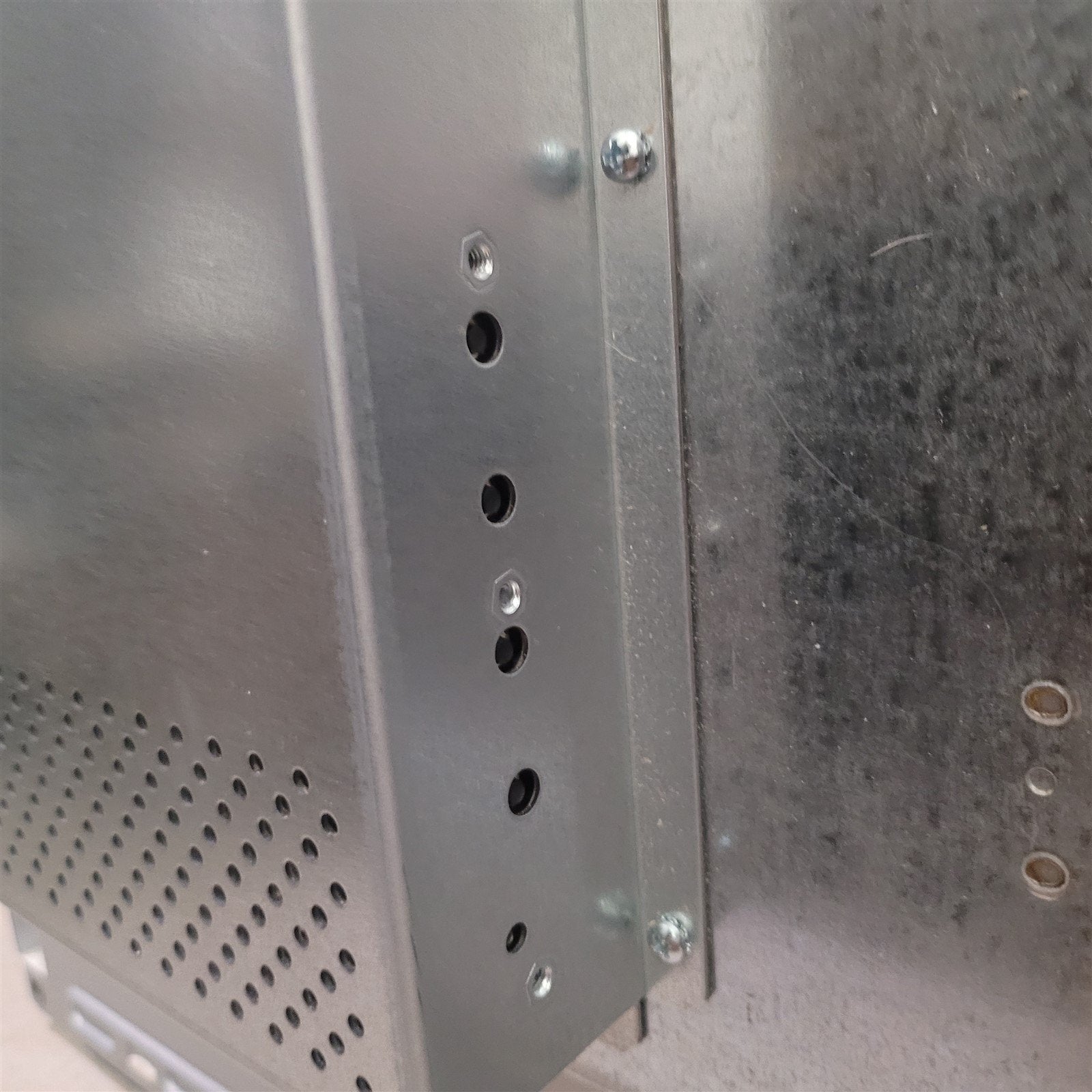

Additional possible threaded mounting holes are along the four sides
Top and bottom threade holes are 7-1/2" from the left and right edges and are 16-1/2" apart
Left and right threaded holes are 2" from the top and bottom edges and are 13-1/2" apart
Excellent lightly used condition. Professionally cleaned and tested - guaranteed to be 100% fully operational
