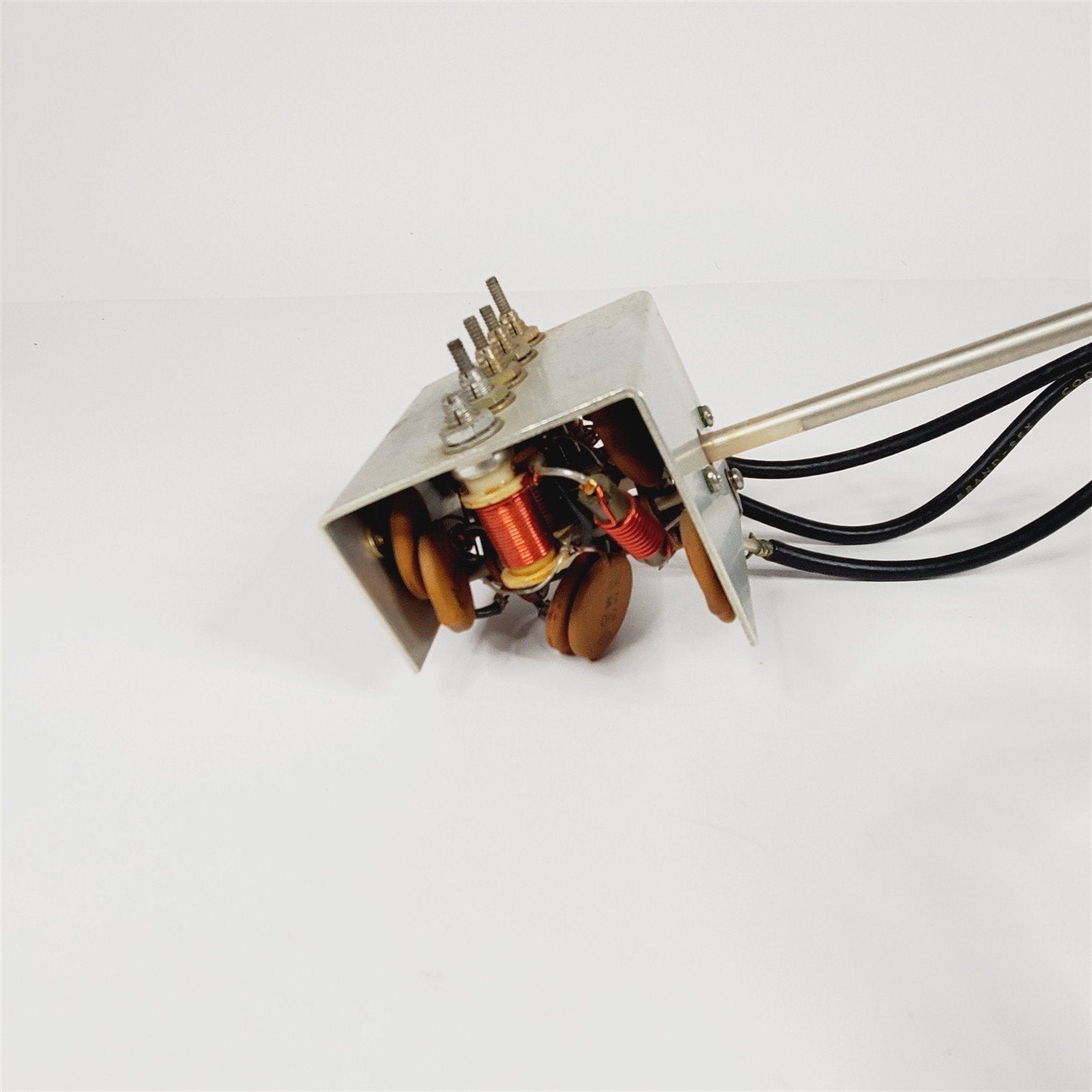

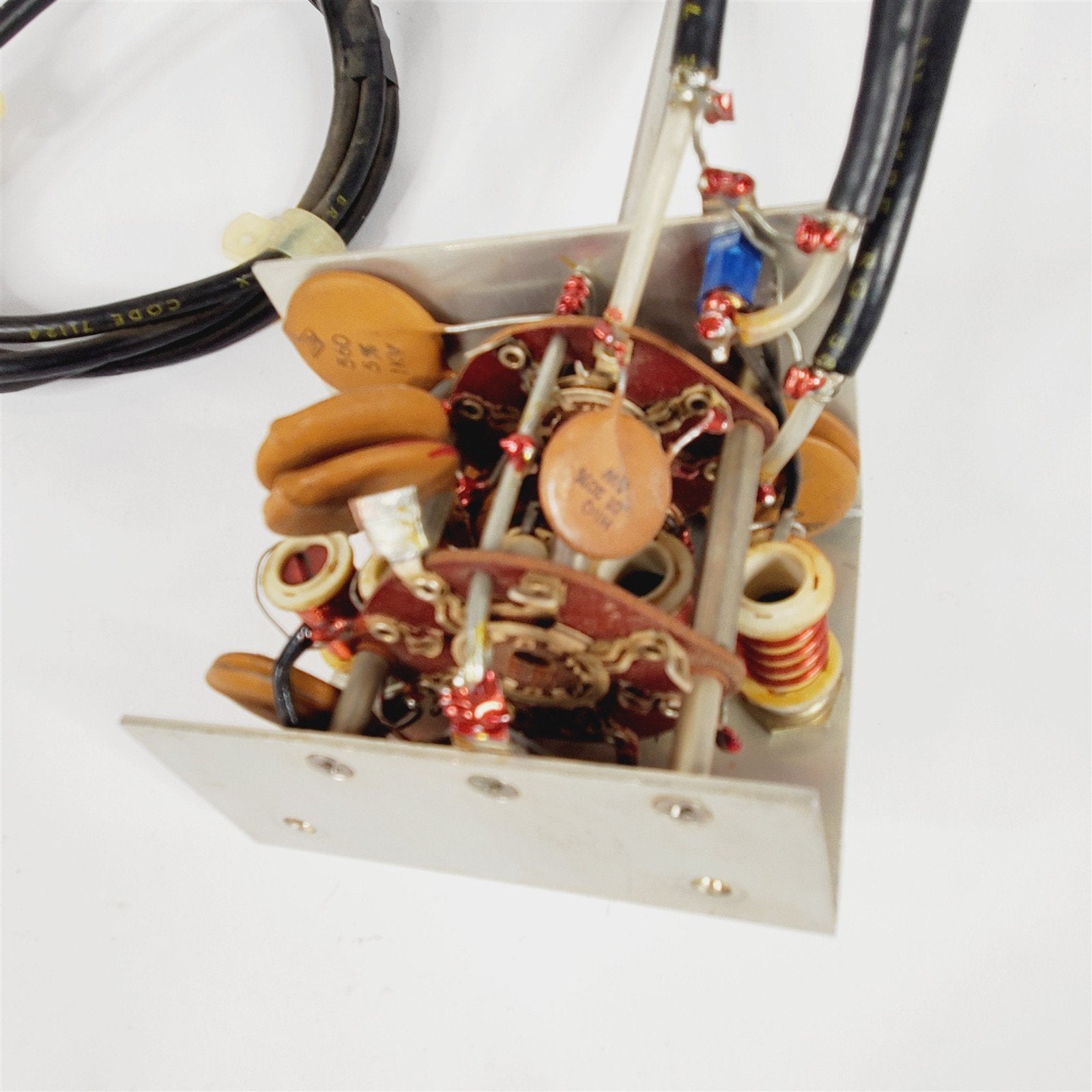

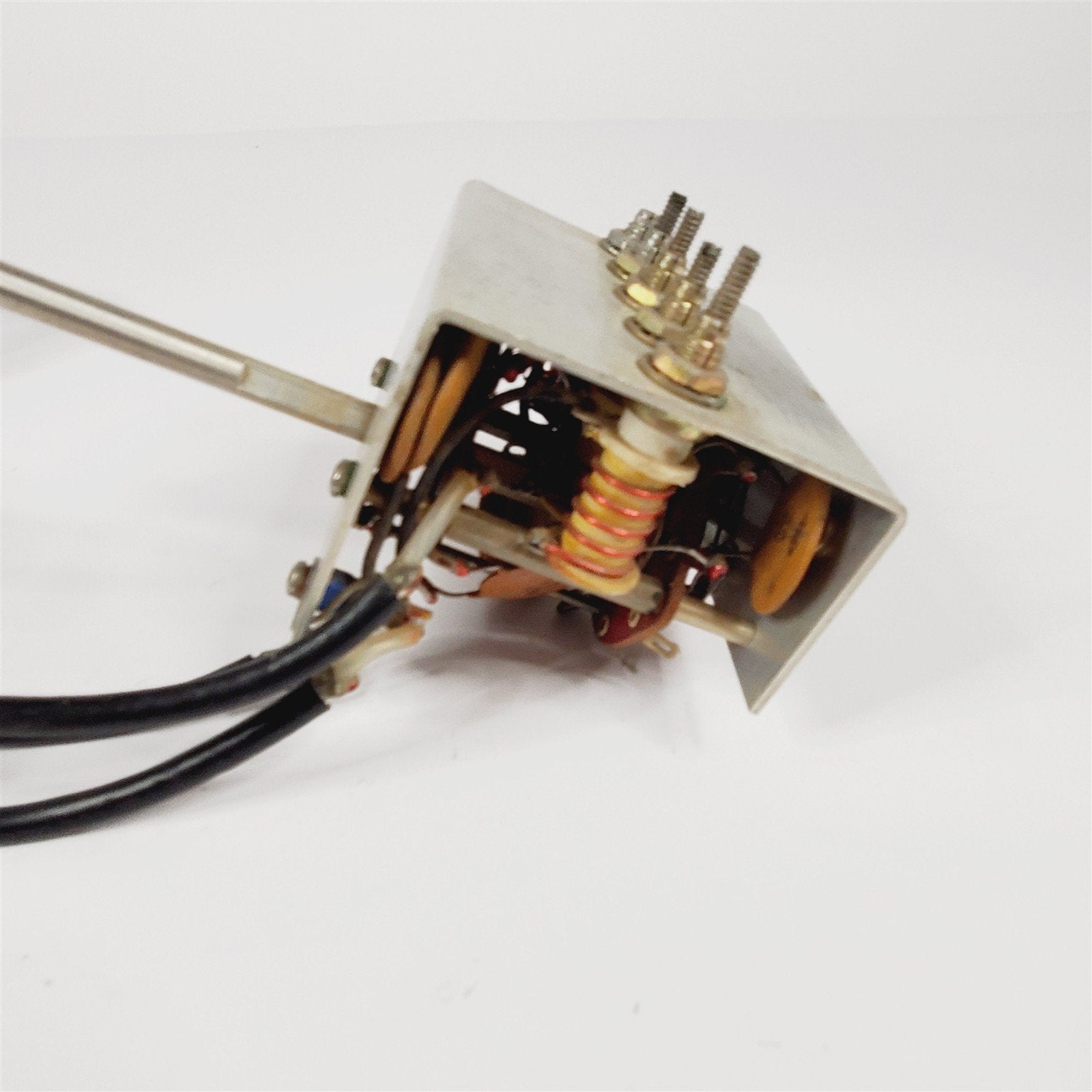

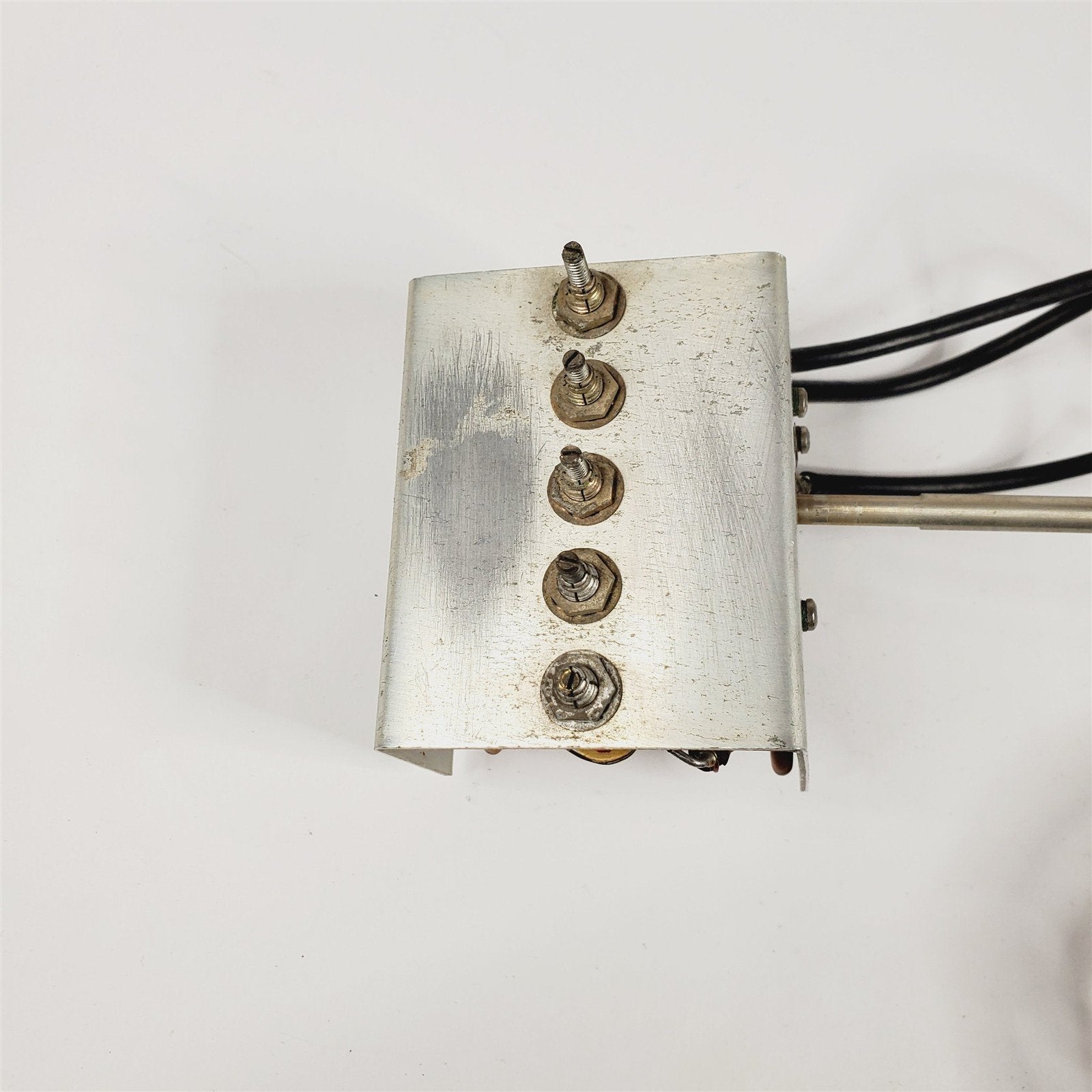

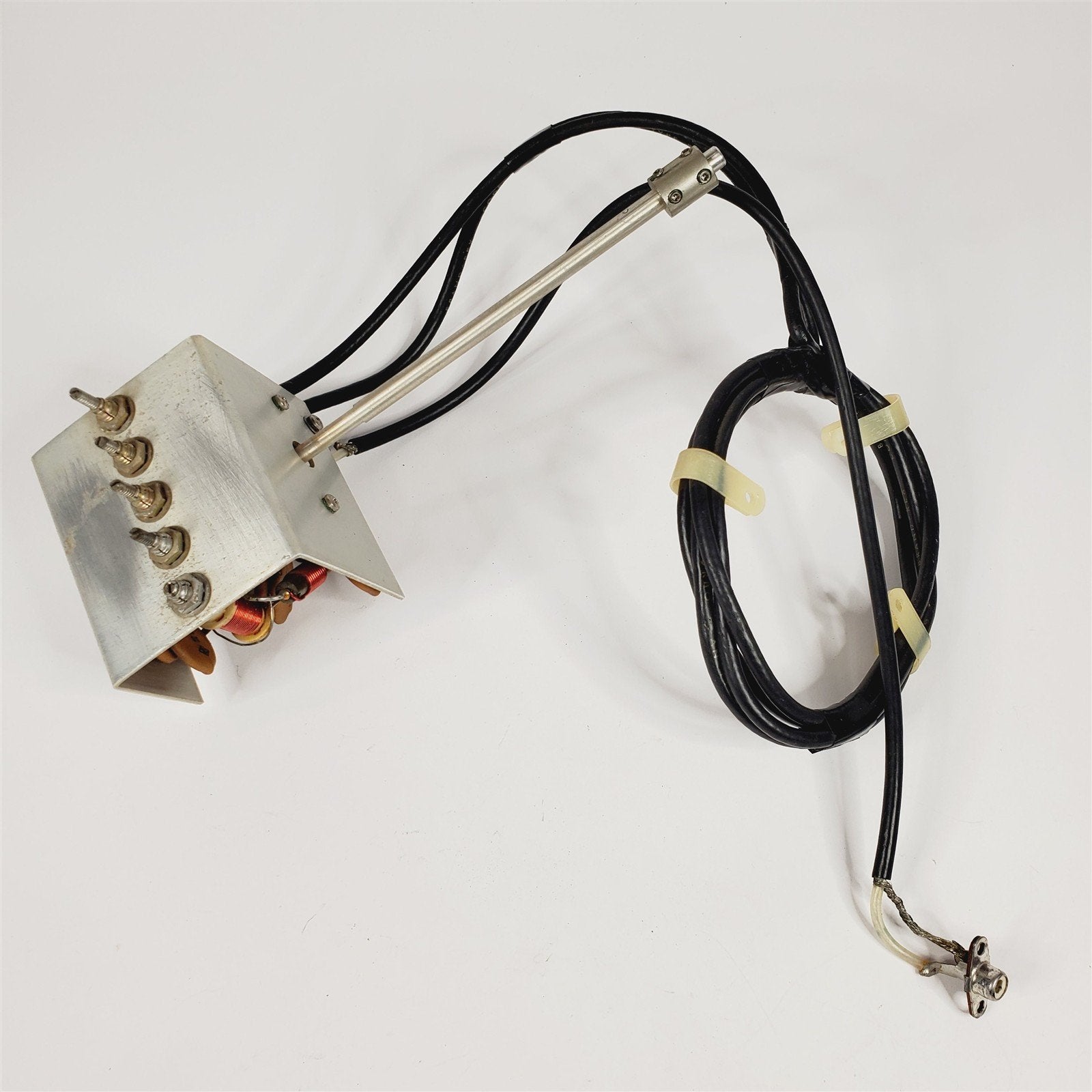

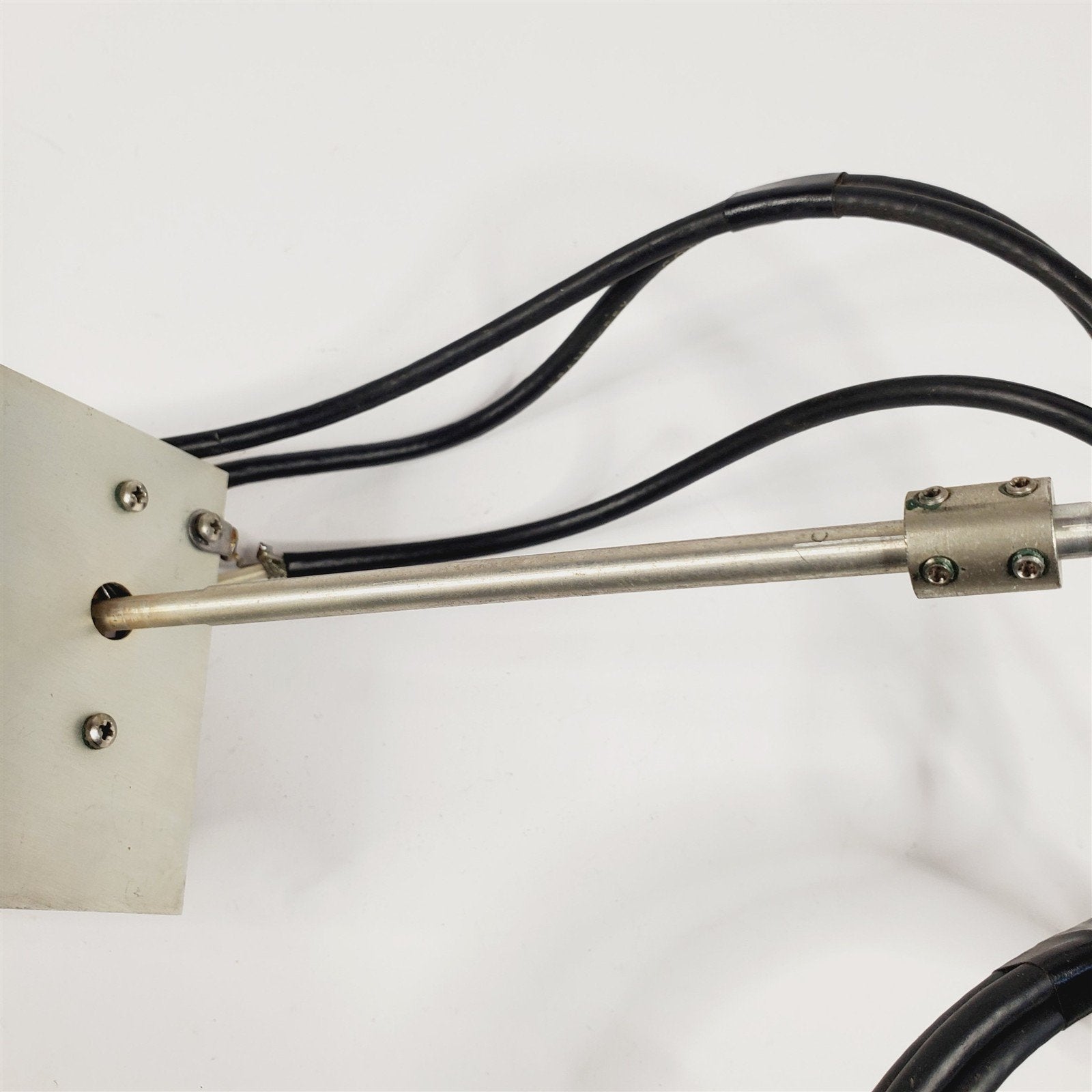

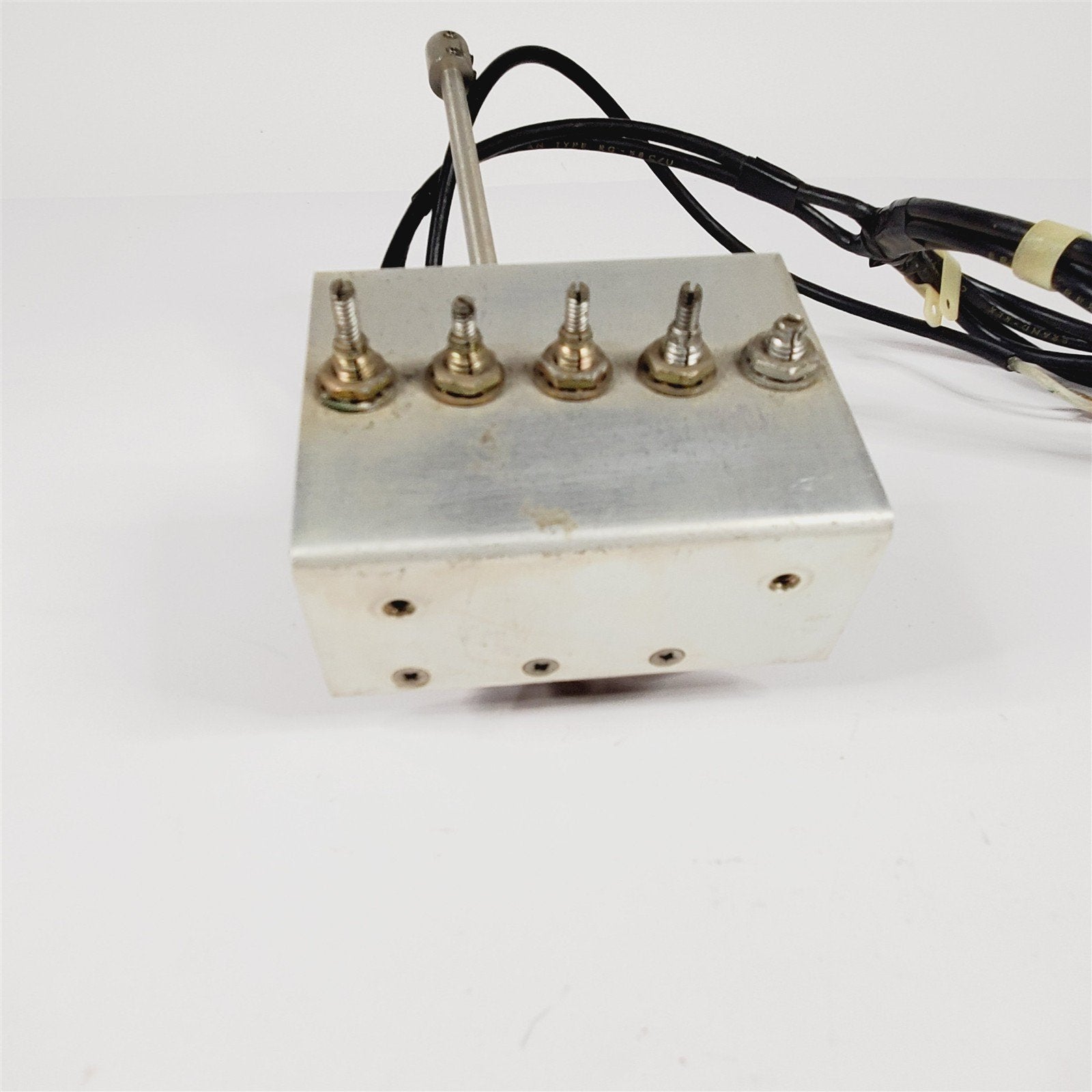

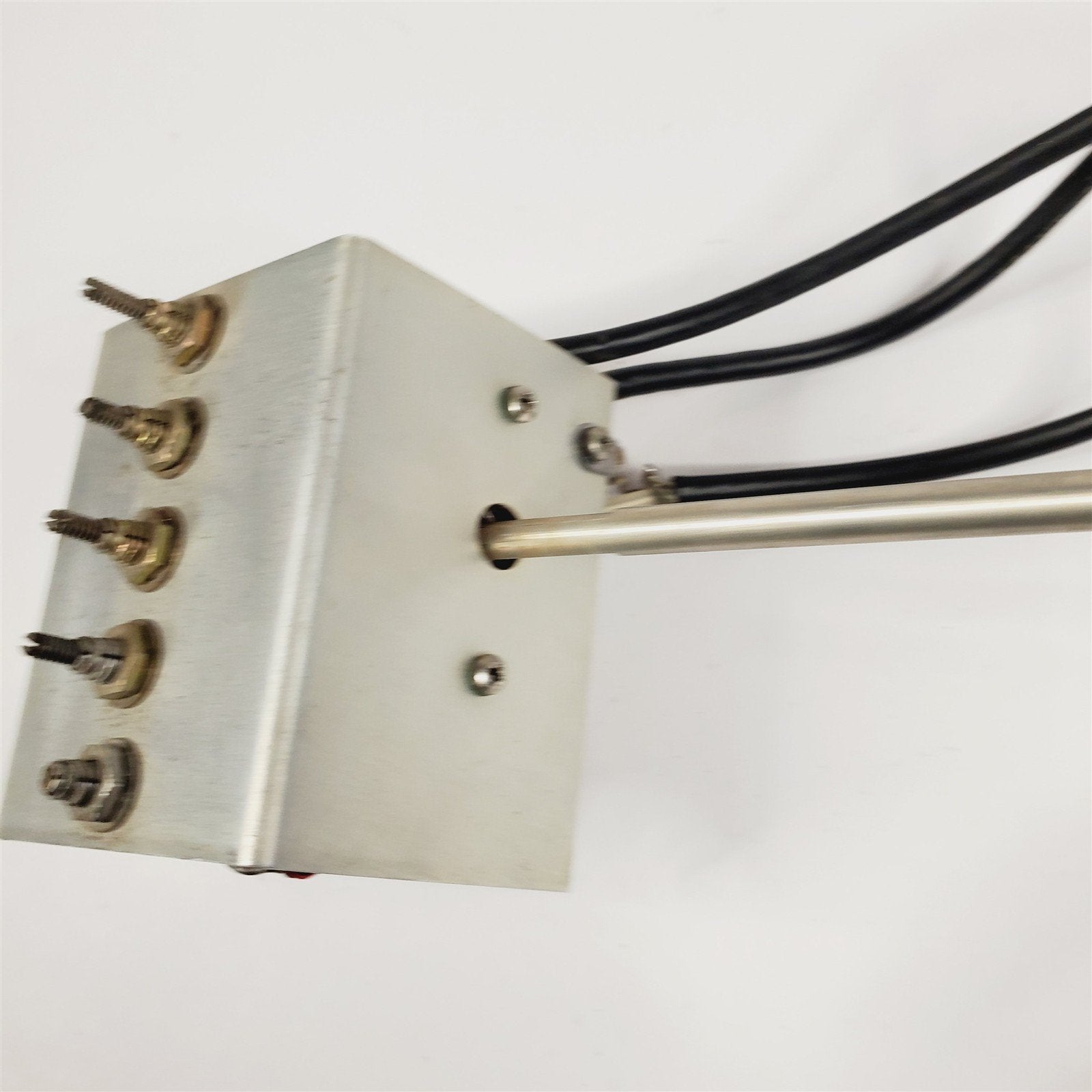

Bandwidth Switch Assembly 6-2 Detail B from a Collins 30S-1 RF Amplifier
Used condition with scuffs & scratches from previous use, storage and handling.
| FIG-ITEM |
MANUFACTURER |
PART NO |
COLLINS P/N |
COMPONENT |
DESCRIPTION |
| 6-2-112 |
Collins |
544-6877-000 |
544-6877-000 |
|
INPUT ASSEMBLY |
| 6-2-113 |
Sprague Electric Co. |
360175A |
913-3013-000 |
C105 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V |
| 6-2-114 |
Centralab Electronics |
913-3587-000 |
913-3587-000 |
C148 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 1000PF, 5%, 1000V (REPLACE WITH 913-1292-000) |
| 6-2-114 |
Erie Technological Products, Inc. |
327-029X5T0102Z |
913-1292-000 |
C148 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 1000PF, M20%P80%, 500V (REPLACES 913-3587-000) |
| 6-2-0115 |
Centralab Electronics |
913-3589-000 |
913-3589-000 |
C150 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 560PF, 5%, 1000V |
| 6-2-0116 |
Centralab Electronics |
913-3589-000 |
913-3589-000 |
C151 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 560PF, 5%, 1000V |
| 6-2-0118 |
Centralab Electronics |
913-3582-000 |
913-3582-000 |
C139 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 220PF, 5%, 1000V |
| 6-2-0119 |
Centralab Electronics |
913-3581-000 |
913-3581-000 |
C138 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 180PF, 5%, 2000V |
| 6-2-0120 |
Centralab Electronics |
913-3579-000 |
913-3579-000 |
C137 |
CAPACITOR, FIXED. CERAMIC DIELECTRIC, 91PF, 5%, 2000V |
| 6-2-0121 |
Centralab Electronics |
913-3585-000 |
913-3585-000 |
C109 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 510PF, 5%, 1000V |
| 6-2-0122 |
Centralab Electronics |
913-3586-000 |
913-3586-000 |
C110 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 820PF, 5%, 1000V |
| 6-2-0123 |
Centralab Electronics |
913-3572-000 |
913-3572-000 |
C108 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 110PF, 5%, 1000V |
| 6-2-0124 |
Centralab Electronics |
913-3579-000 |
913-3579-000 |
C107 |
CAPACITOR FIXED, CERAMIC DIFL, 91PF, 5%, 2000V (REPLACE WITH 913-3581-000) |
| 6-2-0124 |
Centralab Electronics |
913-3581-000 |
913-3581-000 |
C107 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 180PF, 5%, 2000V (REPLACES 913-3579-000) |
| 6-2-0125 |
Collins |
545-7814-000 |
545-7814-000 |
L115 |
COIL |
| 6-2-0126 |
Whitso, Inc. |
2410815 |
306-0234-000 |
|
TERMINAL STANDOFF |
| 6-2-0127 |
Oak Industries Inc. |
94111AH |
269-2036-000 |
S102 |
SWITCH SECT,ROTARY |
| 6-2-0128 |
Collins |
540-9057-003 |
540-9057-003 |
|
POST |
| 6-2-0129 |
Collins |
541-5974-002 |
541-5974-002 |
|
SPACER SLEEVE |
| 6-2-0130 |
Collins |
541-5970-002 |
541-5970-002 |
|
SPACER SLEEVE |
| 6-2-0131 |
Collins |
544-6999-003 |
544-6999-003 |
L110 |
COIL NO 2 |
| 6-2-0132 |
Collins |
544-6998-003 |
544-6998-003 |
L111 |
COIL NO 1 (REPLACE WITH 790-1645-001) |
| 6-2-0132 |
Collins |
790-1645-001 |
790-1645-001 |
L111 |
COIL NO 1 (REPLACES 544-6998-003) |
| 6-2-0133 |
Collins |
544-7002-003 |
544-7002-003 |
L112 |
COIL NO 5 |
| 6-2-0134 |
Collins |
544-7001-003 |
544-7001-003 |
L113 |
COIL NO 4 |
| 6-2-0135 |
Collins |
544-7000-003 |
544-7000-003 |
L114 |
COIL NO 3 |
| 6-2-0136 |
Collins |
544-7008-003 |
544-7008-003 |
|
BRACKET, SWITCH |
| 6-2-0137 |
Penn Engineering and Mfg. Co. |
CL632-20 |
334-0066-000 |
|
NUT, PLAIN, CADMIUM PLATED STEEL, 6-32 |
| 6-2-0138 |
Collins |
544-7007-003 |
544-7007-003 |
|
BRACKET, SWITCH |
| 6-2-0178 |
Joint Electronic Type Designation System |
RG58CU |
425-0042-000 |
|

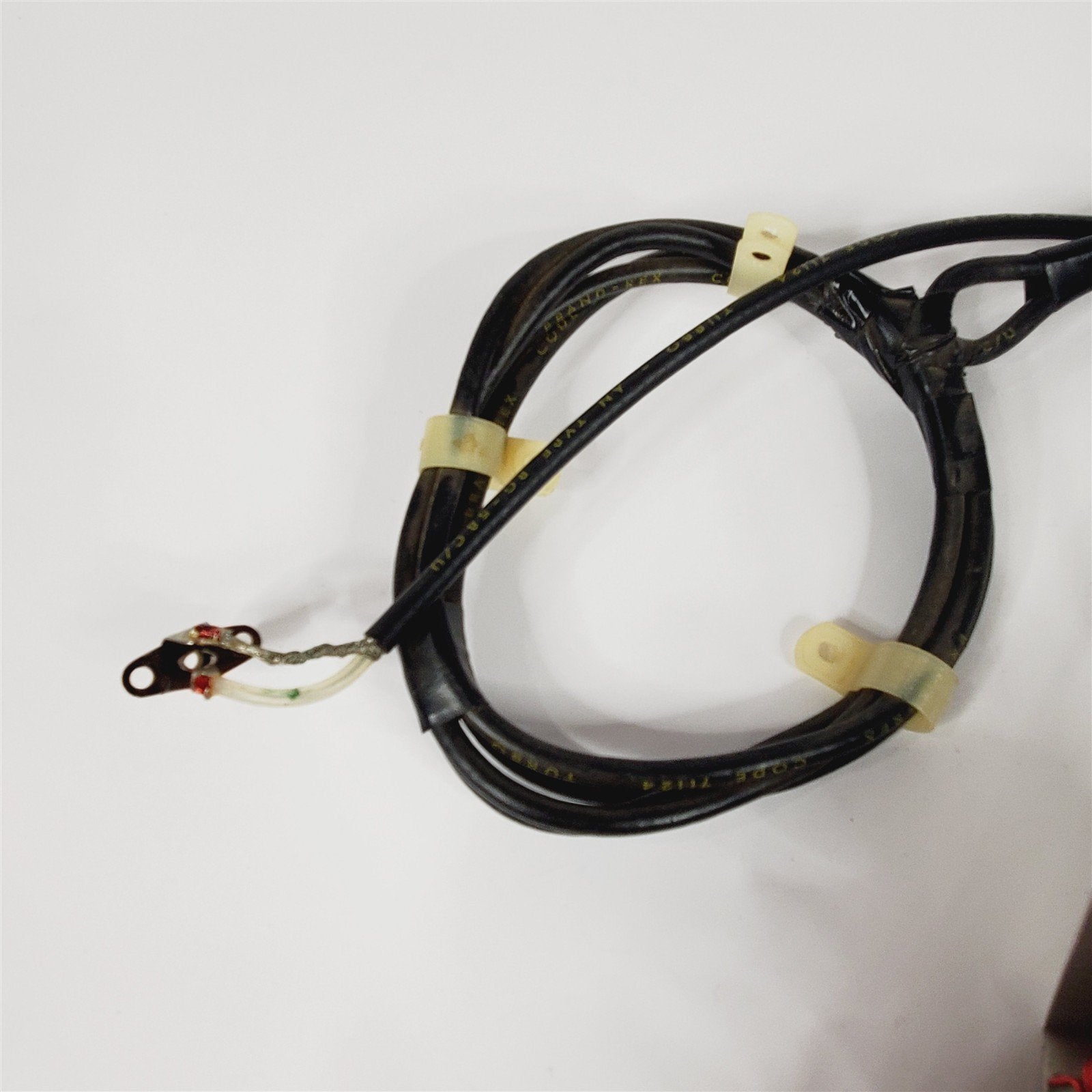

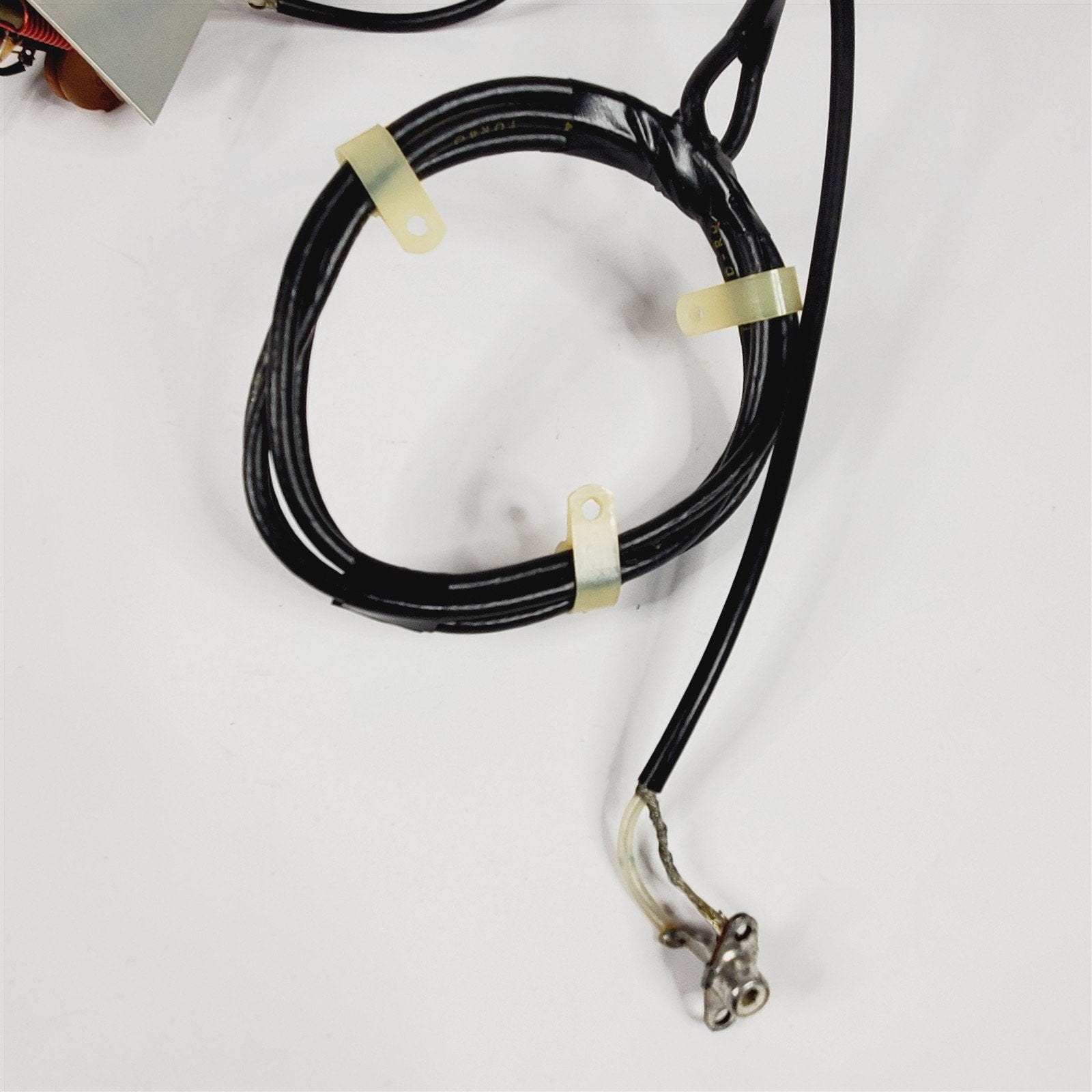

CABLE,RF |
| 6-2-0179 |
Burndy Corp. |
HPBN |
150-1545-000 |
|
CLAMP, LOOP |
This is a part from a very nice Collins 30S-1 Linear Power Amplifier. We purchased this unit because we thought it came from the same estate that we are processing all of our Engineering Equipment from. It is not from the same estate, but it is better than the one described in our inventory notes from the estate.
We do not have equipment to test the amplifier, but we powered it on and are professionally testing most of the components, including sending the Eimac Tetrode tube to have it tested by Richardson Electronics.
To see all of the 30S-1 parts we have for sale, click on this link for our Shopify store: Collins 30S-1 parts for sale on vegasclassicparts.com
OR this link to our ebay store: Collins 30S-1 Parts for sale by Vegas Classic Parts
We usually ship within one business day! International buyers are responsible for any customs/duty fees.
We use high quality shipping supplies and biodegradable peanuts to make sure your items arrive safely.
Some equipment will be contracted for professional packing and shipping by Las Vegas Craters, UPS or FedEx Ground.
Manufacturing technology was not the same as it is today so imperfections should be expected.
Also, these items may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
