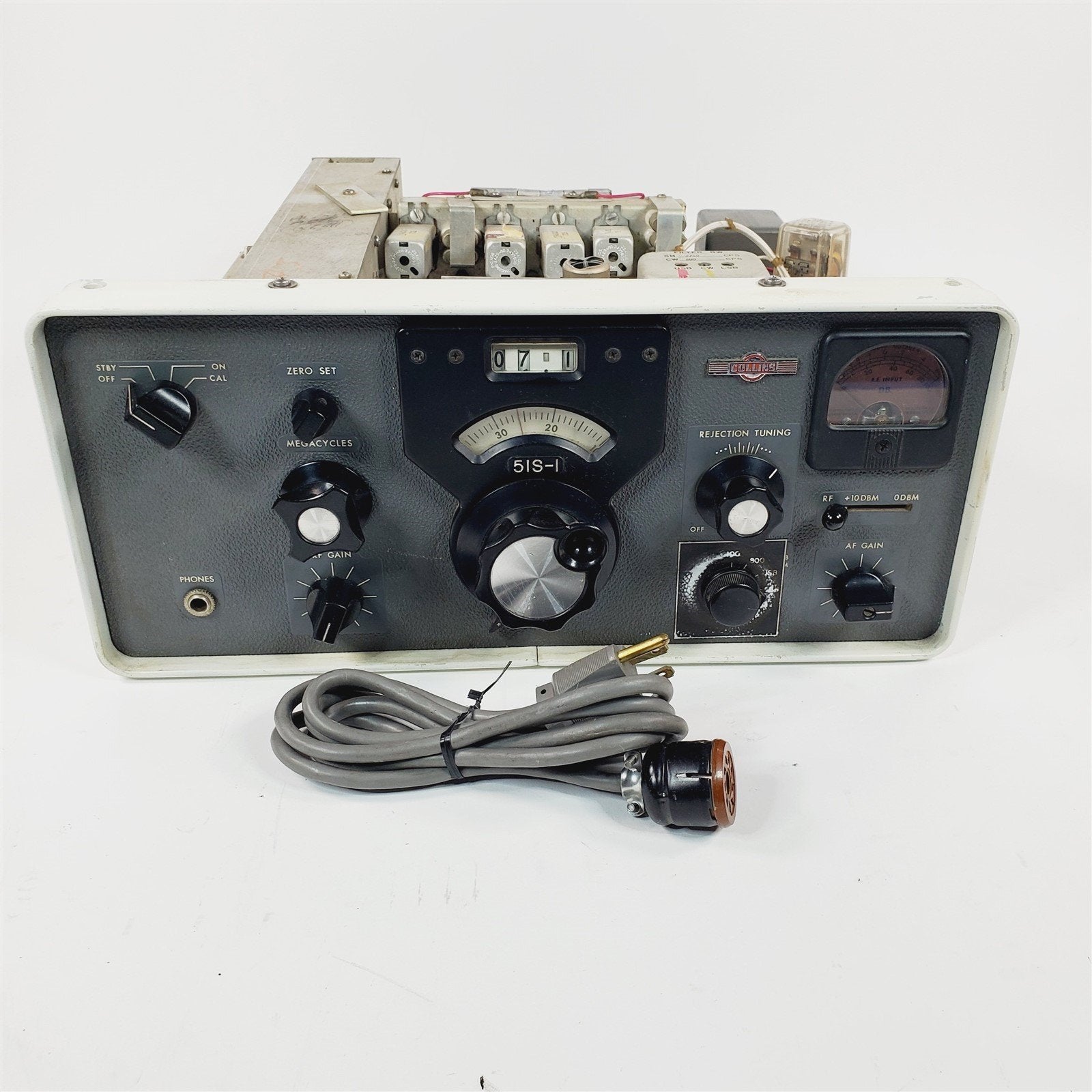

This listing is for a Collins 51S-1F Winged Emblem Ham Radio Receiver SN 3697 As-Is For Parts,Repair
We are unable to test this unit. We are selling as-is - no returns - priced accordingly.
Previous Owner's notes on this radio (we are not sure how to interpret all of his comments)

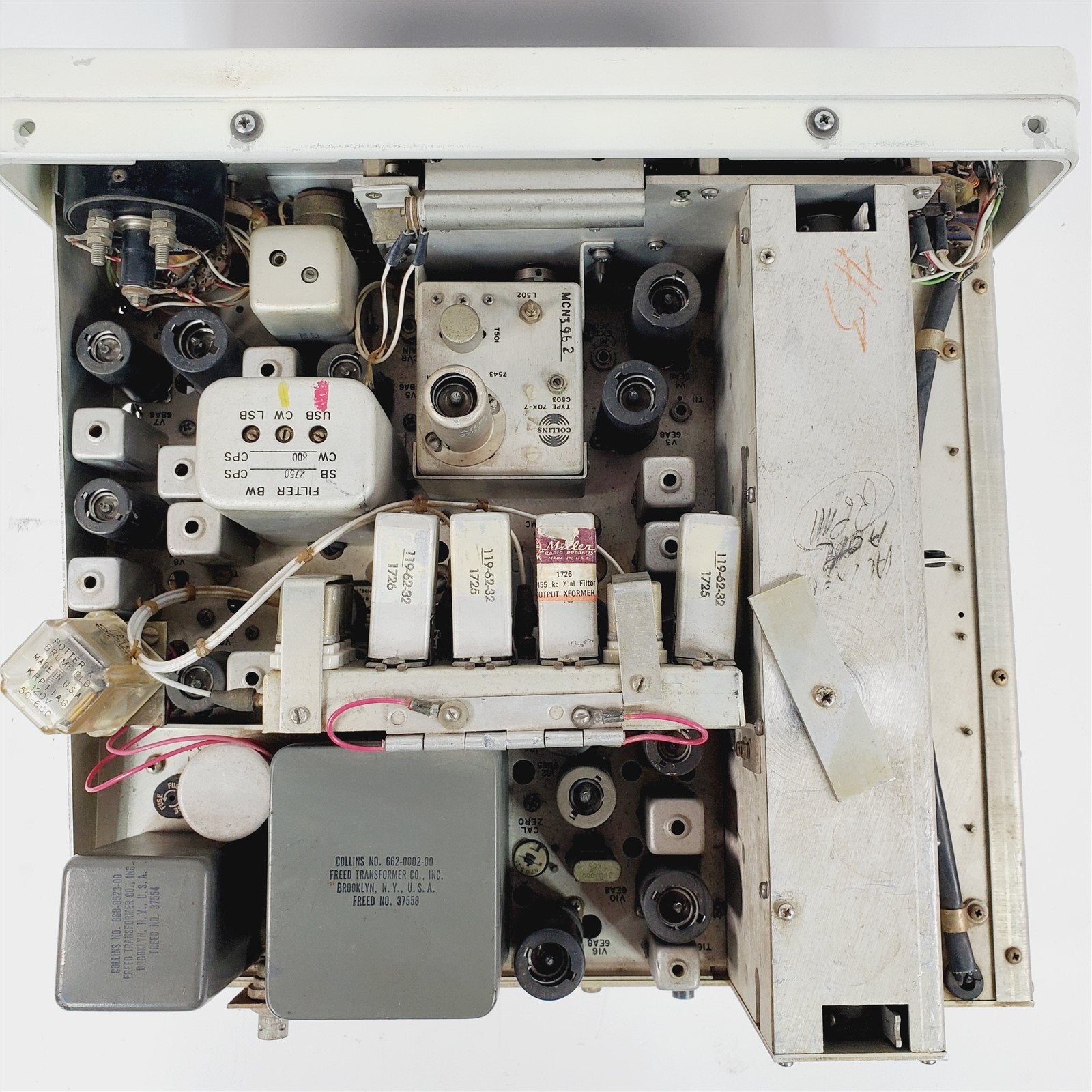

"COLLINS 51S-1 F, SPECIALLY MODIFIED FOR MILITARY BY ADDING EXTRA FILTERS.
FILTERS LOOK LIKE,,, MILLER MADE 455KC IF COILS ARE CONVERTED TO 500KC.
SOME OF THESE STILL WORK OK BUT MANY NEED TO BE RETESTED AT COMPONENT LEVEL.

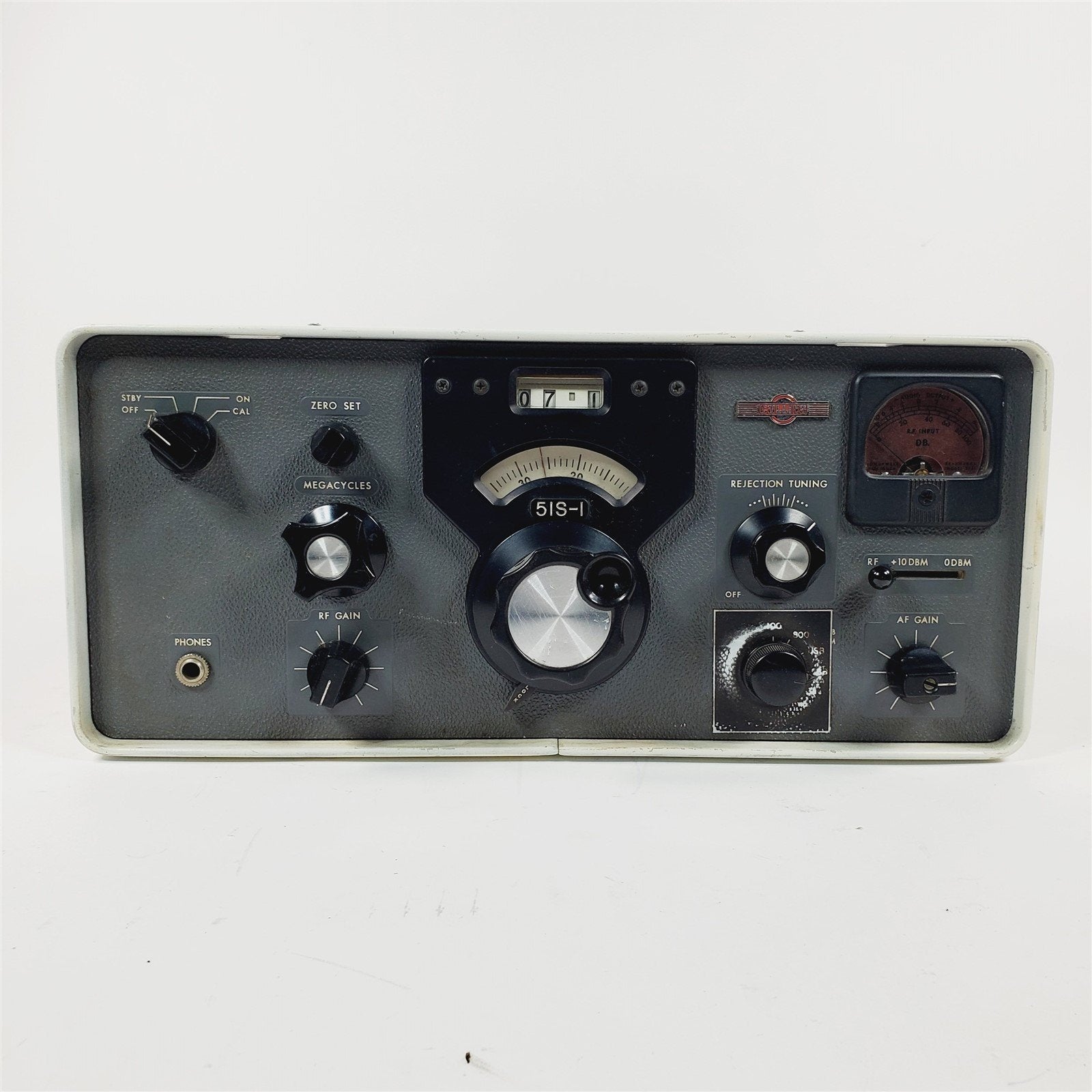

MODE SWITCH SAYS 100 800 USB LSB 3KC 5KC.100HZ AND 3KC ARE MADE OUT OF
MILLER COIL KITS.TWO POLE FOR 3KC AND 4POLES FOR 100.,,,5KC IS BY ORIGINAL

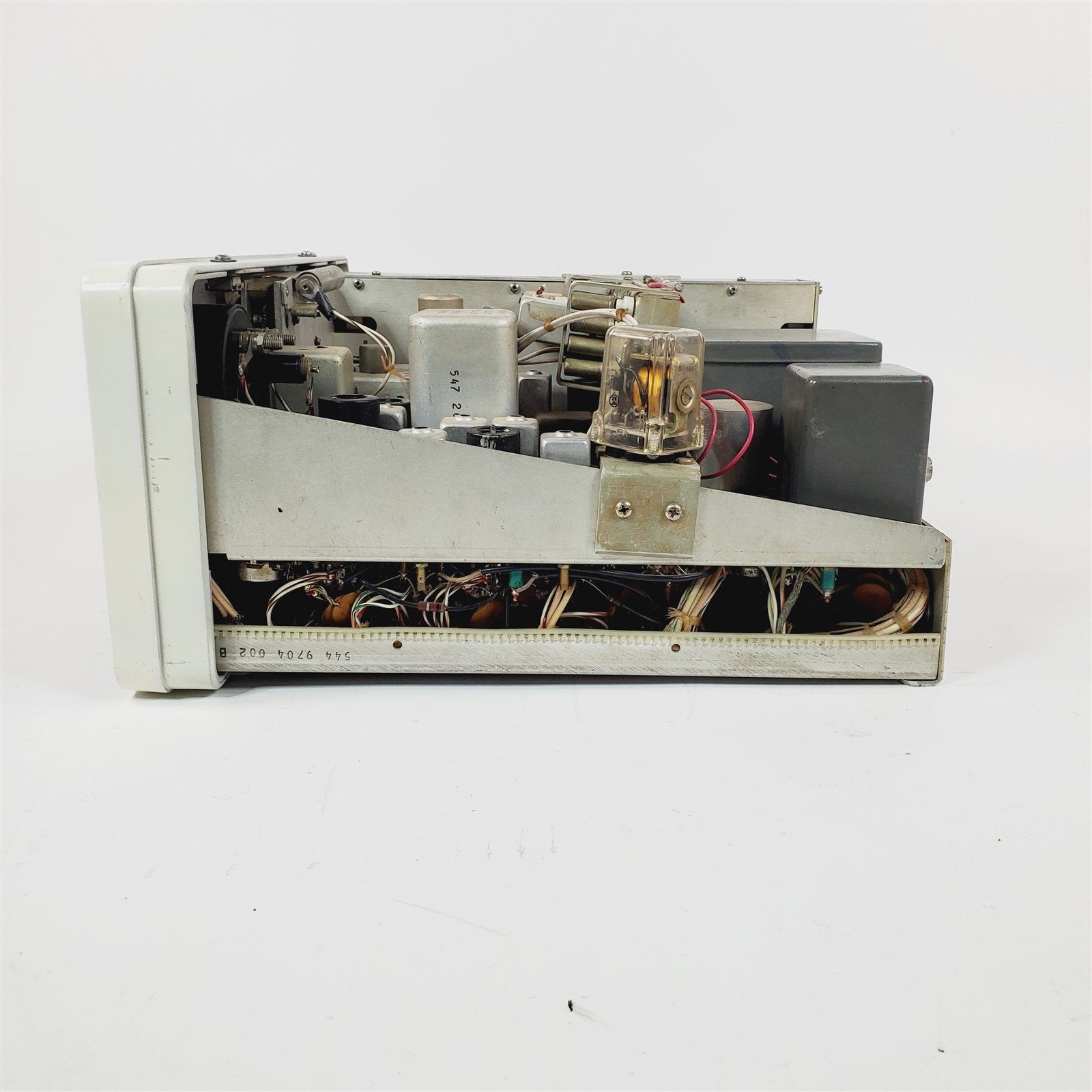

COLLINS COILS,,IT IS WIDER THAN 5KC.,,A RELAY IS ADDED TO TURN ON SOMETHING
WHEN THE RECEIVER GOT TURNED ON.ANT INPUT IS CONVERTED TO BNC CONNECTOR.

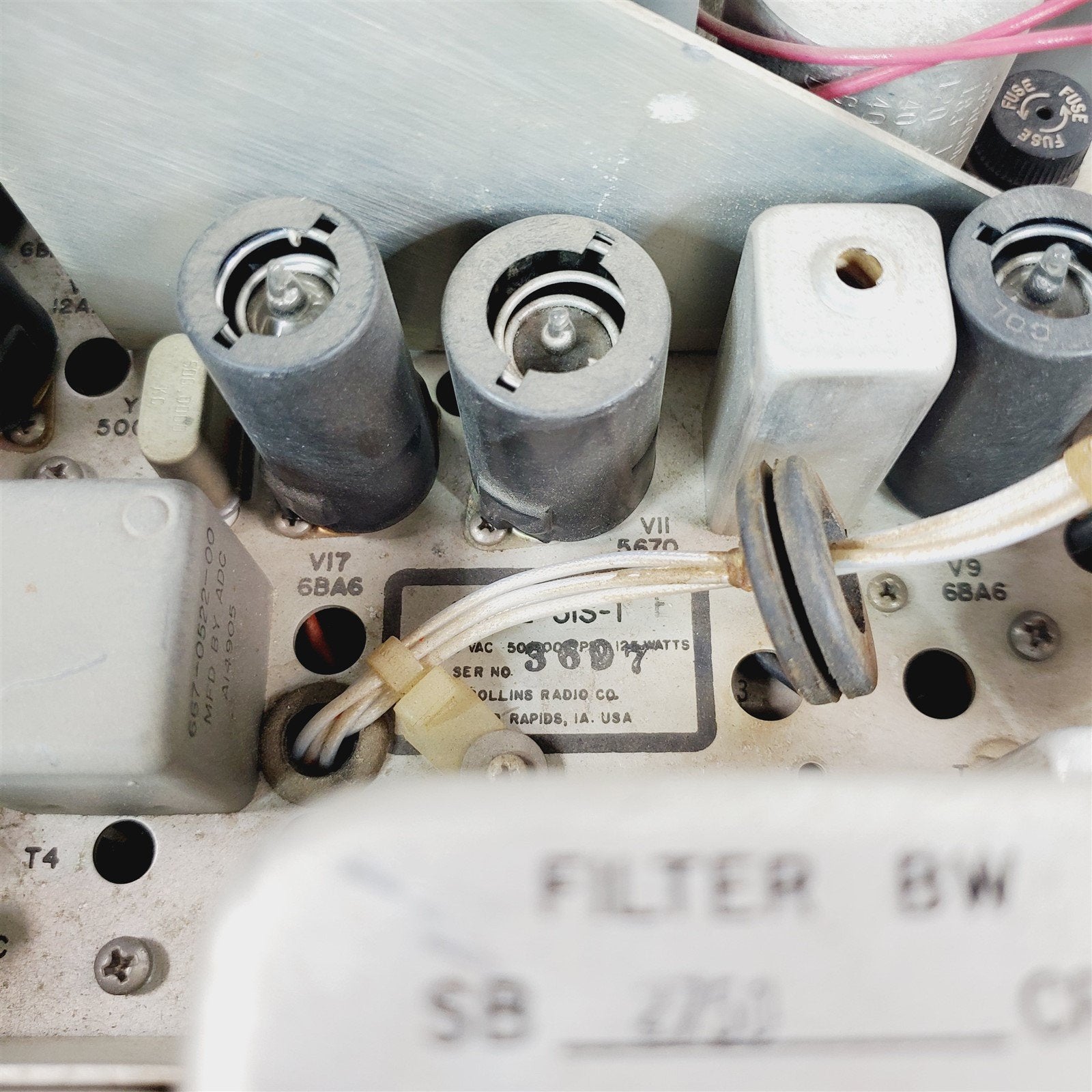

3697
THIS ONE IS WIRED CLEAN
AND OVERALL WORKS OK BY DETUNING AGC COIL

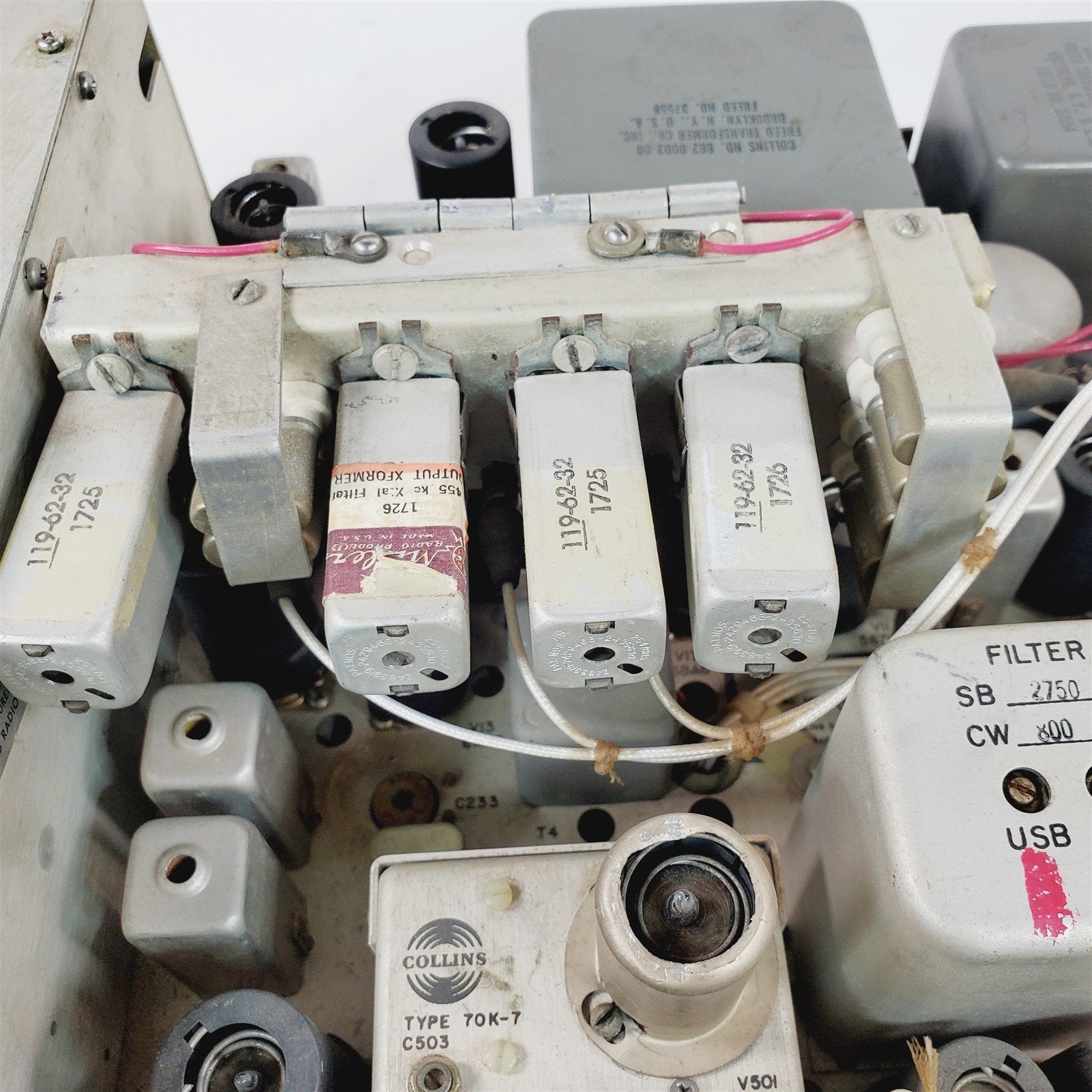

MILLER 1726 455KC XTAL FILTER INPUT,,OUTPUT 1725
FOR AM 498.53 AND 501.47
CW 100HZ 500.8500 AND 500.7500 4 POLES FILTER
Notes on the units he purchased with this one:
S/N ARE 3536,,,3579,,3627,,3653,,3671,,3697,,3787,,3795.,,3796,,3876,,
3894,,,,TOTAL 11 UNITS.
ALL UNITS ARE TESTED BY ME,,,OVERALL THEY ALL WORK,,BUT NOTICEABLE

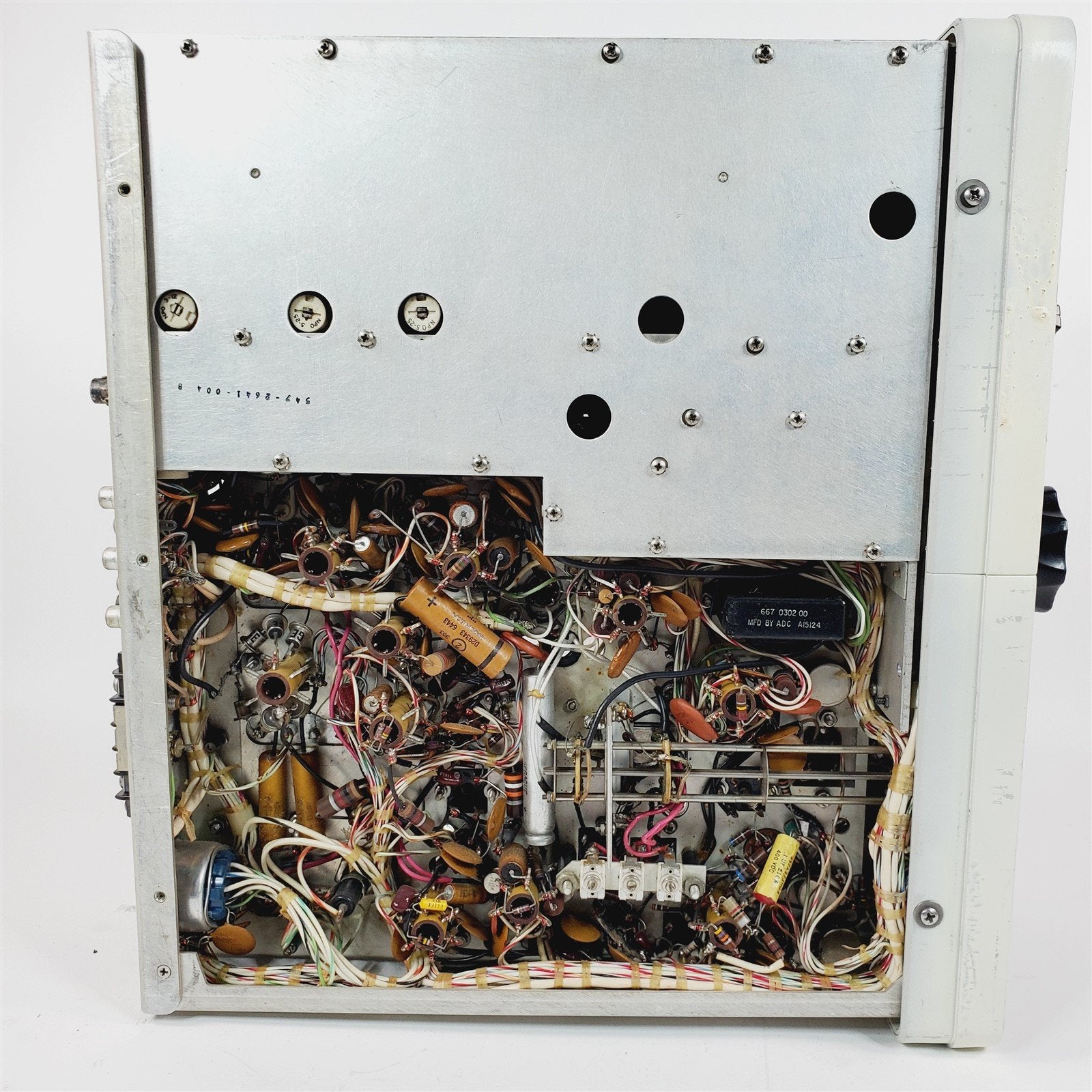

DEFECTS ARE [Other Serial Numbers - No defects noted on 3697] SOME ARE WIRED VERY CLEAN AND NO PROBLEM BUT MOST LOOK LIKE BEING WIRED
BY IDIOTS,,LONG LOOSE WIRES HANGING OVER OTHER CIRCUIT,,AND CREATE IF
OSCILLATION.TO STOP IT THEY DETUNED IF COILS AND SOLD TO THE GOVERNMENT.
YOU MUST CLEAN THOSE WIRINGS OR REPLACE THEM AWAY FROM OTHER IF CIRCUIT.
I TRIED IN TWO UNITS AND WORKED OK.
SOME HAS NO COLLINS KNOBS. ALSO DECAL OF MODE SWITCH COME
OFF EASILY,,BENEATH [the decal] IS THE ORIGINAL 51S1 FRONT PANEL.
OVERALL ALL HAVE CLEAN FRONT PANEL,,,CLEAN CHASSIS BECAUSE THESE CAME
OUT OF A BASE IN A DESERT."

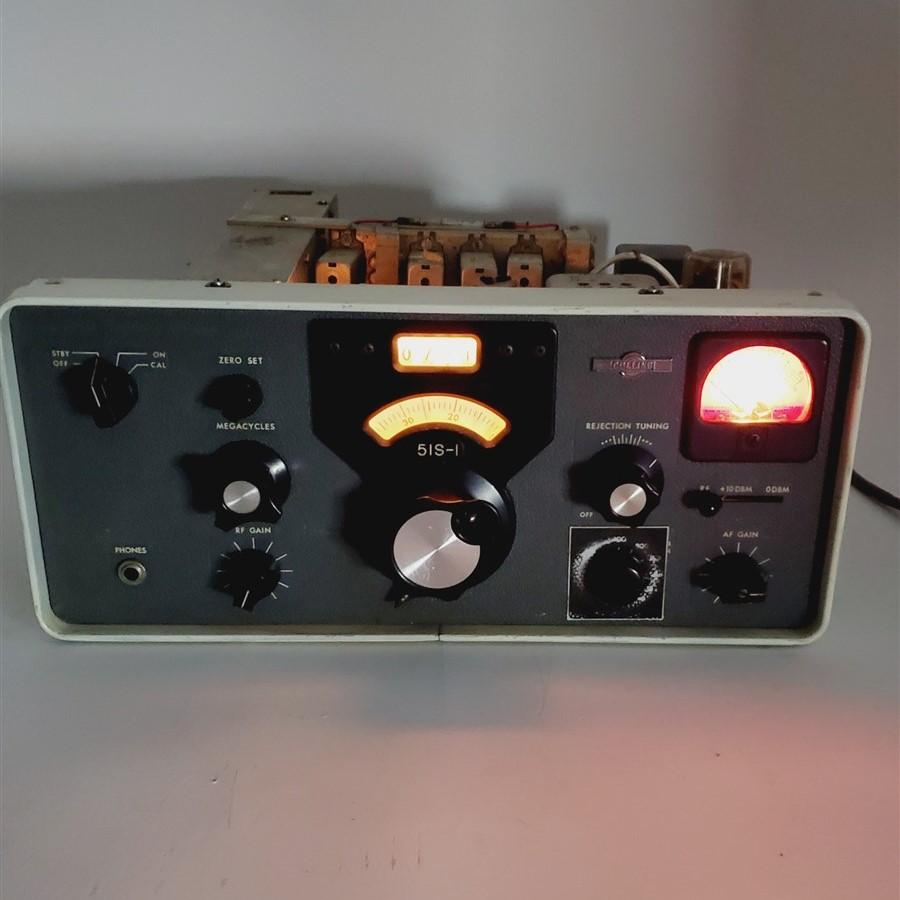

Previously used condition. Untested. Powers on, tubes glow. See description for previous owner's notes.
