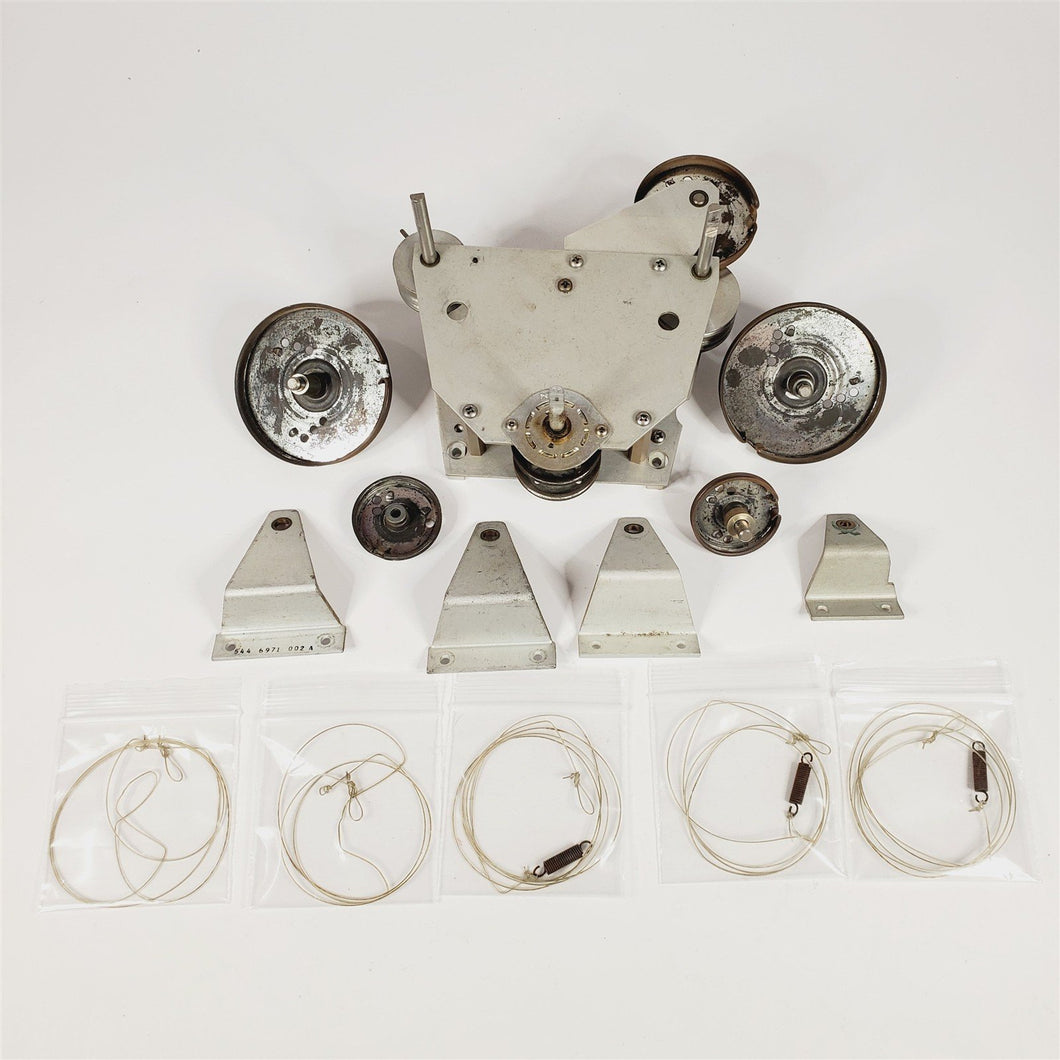

Front Plate Deck Assembly from Collins 30S-1 RF Amplifier Collins 544-6944-002

Regular price: $200.00
Sale price: $200.00
Unit price: per

Only 1 left in stock.

Quantity

Quantity must be 1 or more

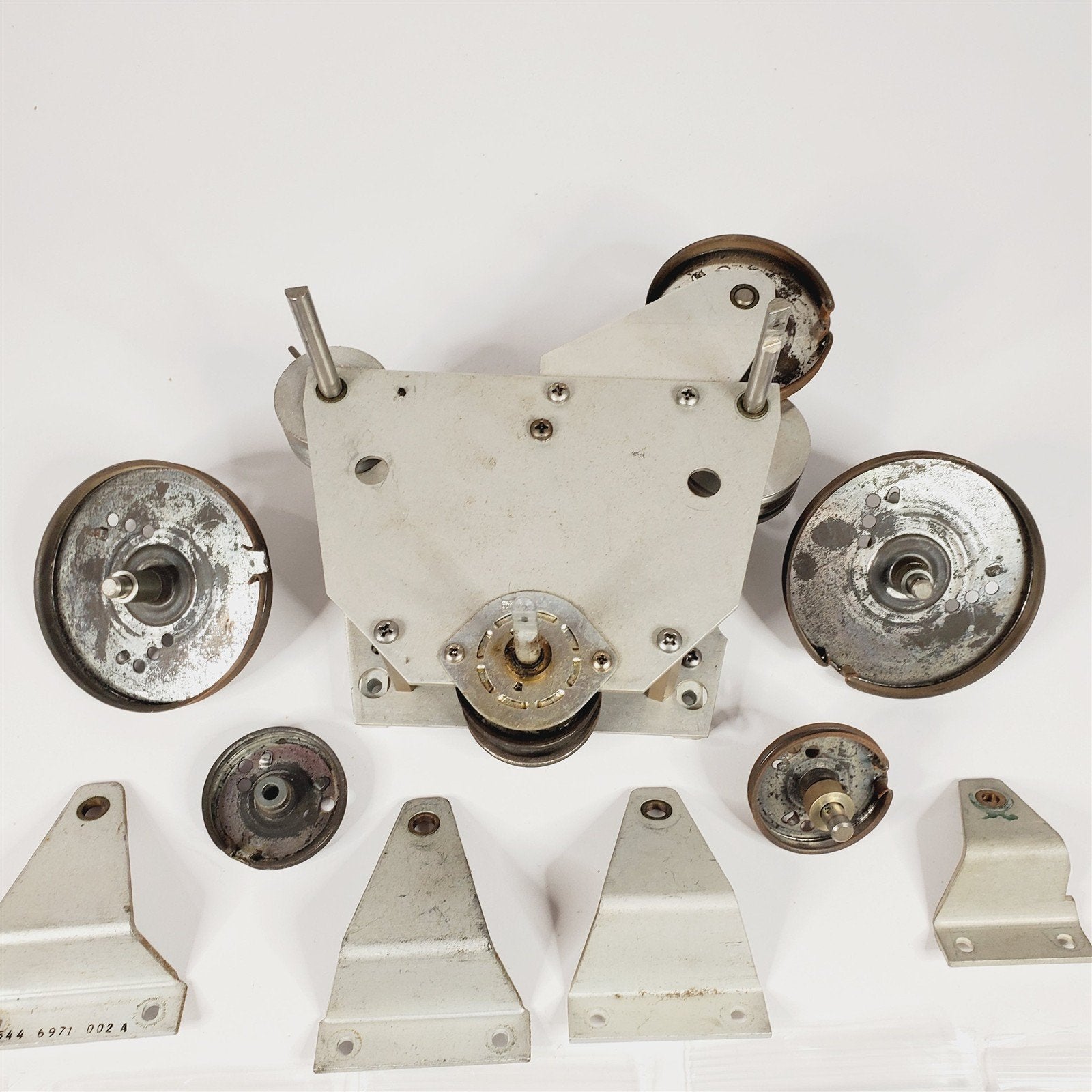

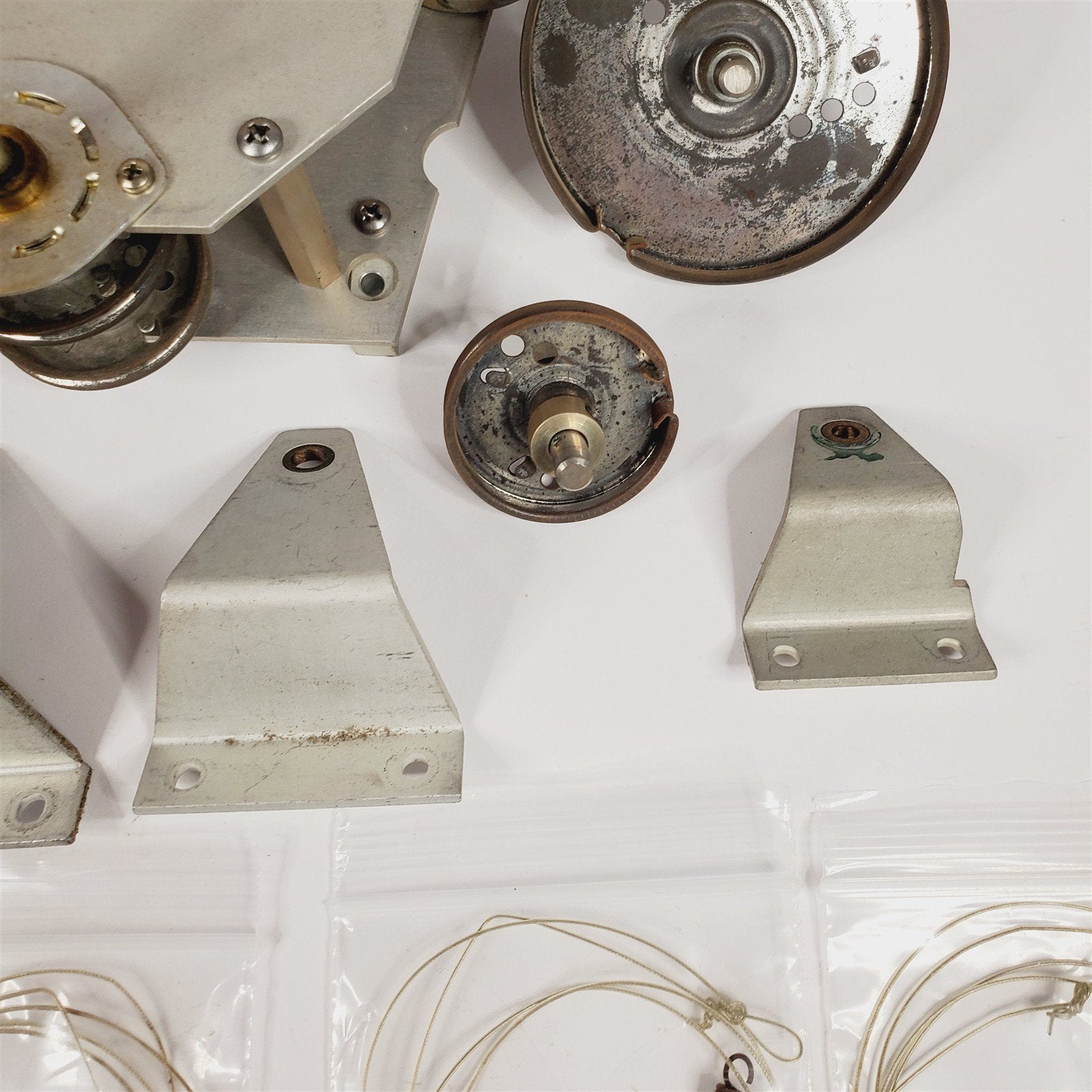

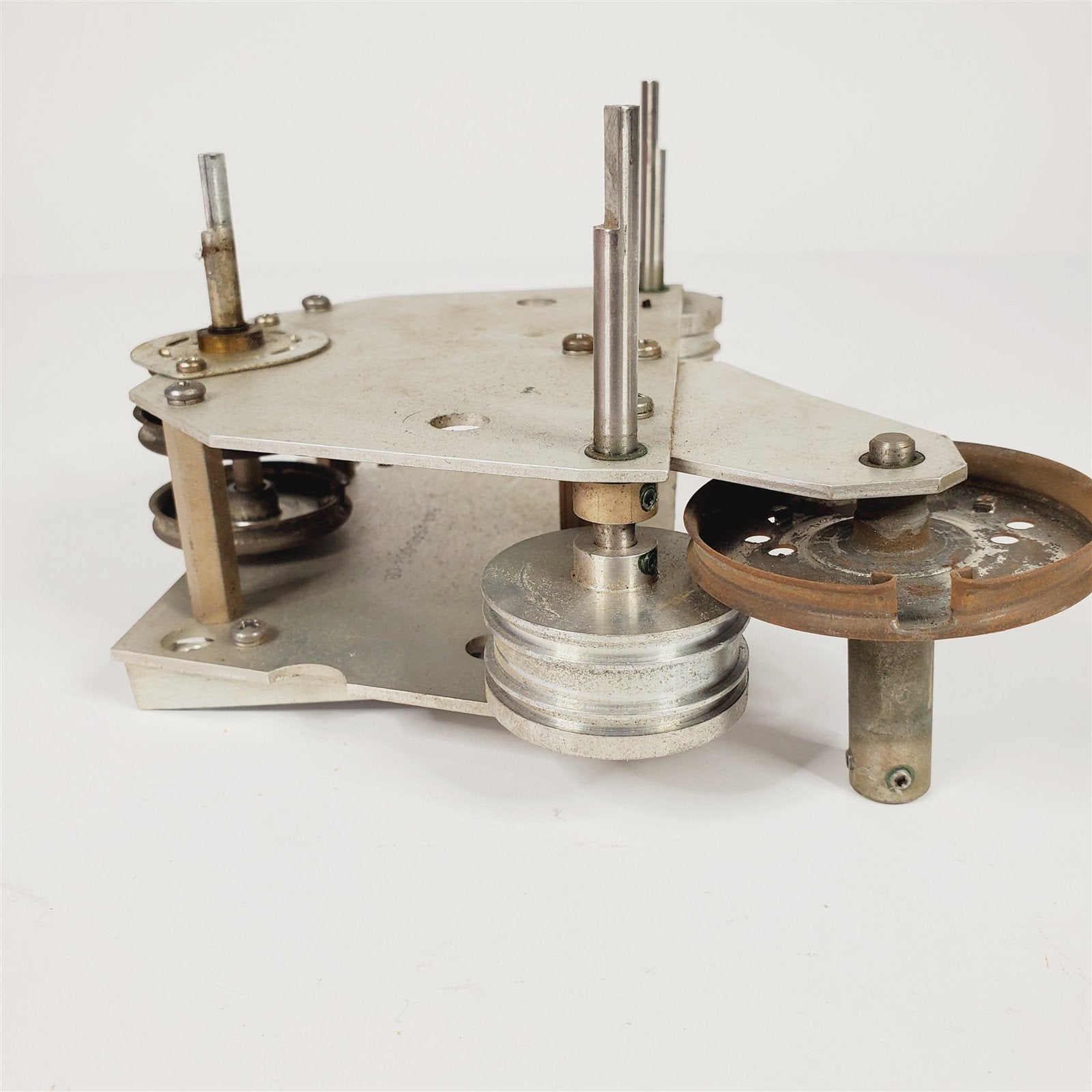

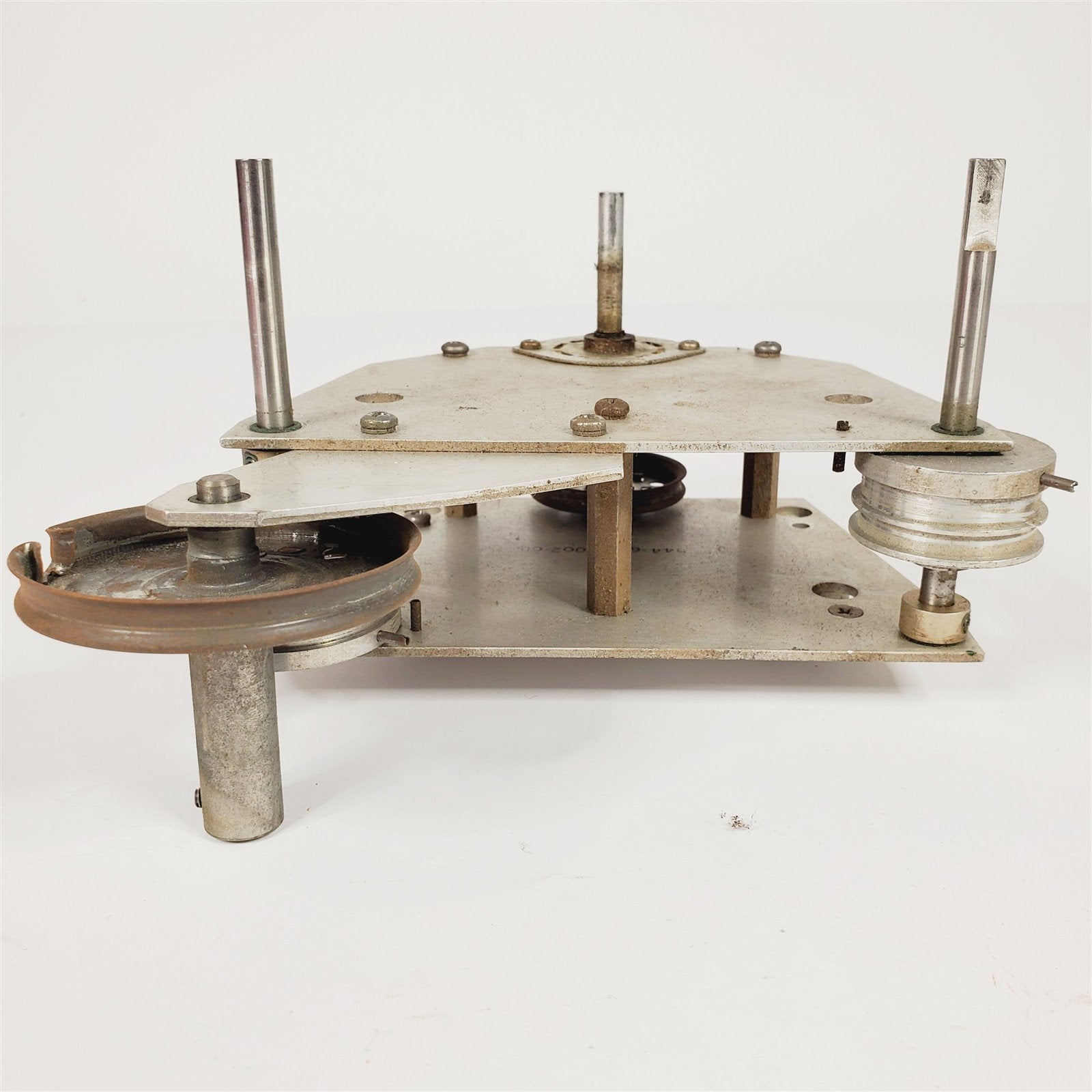

Front Plate Deck Assembly from Collins 30S-1 RF Amplifier Collins 544-6944-002

Carefully Disassembled. Used condition with scuffs & scratches from previous use, storage and handling.

List of parts below may be part of this assembly:

FIG-ITEM

MANUFACTURER

PART NO

COLLINS P/N

COMPONENT

DESCRIPTION

6-2-06	Collins	544-6944-002	544-6944-002	PLATE, FRONT
6-2-07	Military Standards	M916562-201	311-0357-000	PIN SPRING, STAINLESS STEEL, 0.078 DIA X 3/8
6-2-08	Chrysler Corp.	F346-4MILL6085	309-0124-000	BEARING, SLEEVE
6-2-09	Collins	544-6941-002	544-6941-002	PLATE, FRONT
6-2-10	Collins	544-6949-002	544-6949-002	PULLEY,DRIVE

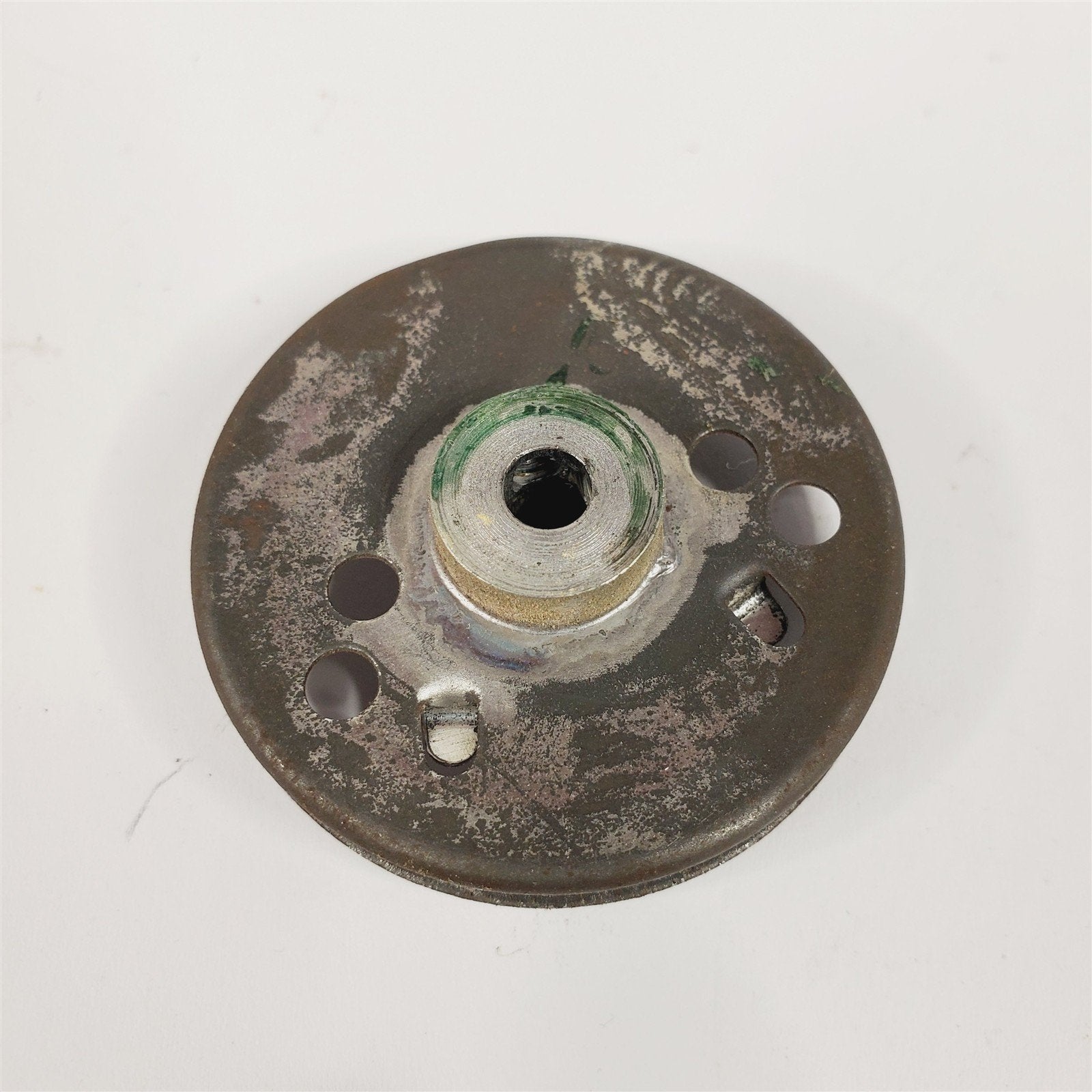

6-2-11	Collins	544-6932-002	544-6932-002	HUB, PULLEY
6-2-12	Military Standards	SP2-15	281-0057-000	PULLEY, GROOVE
6-2-13	Collins	544-6967-002	544-6967-002	COLLAR, SHAFT
6-2-14	Collins	544-6931-002	544-6931-002	SHAFT, DIAL

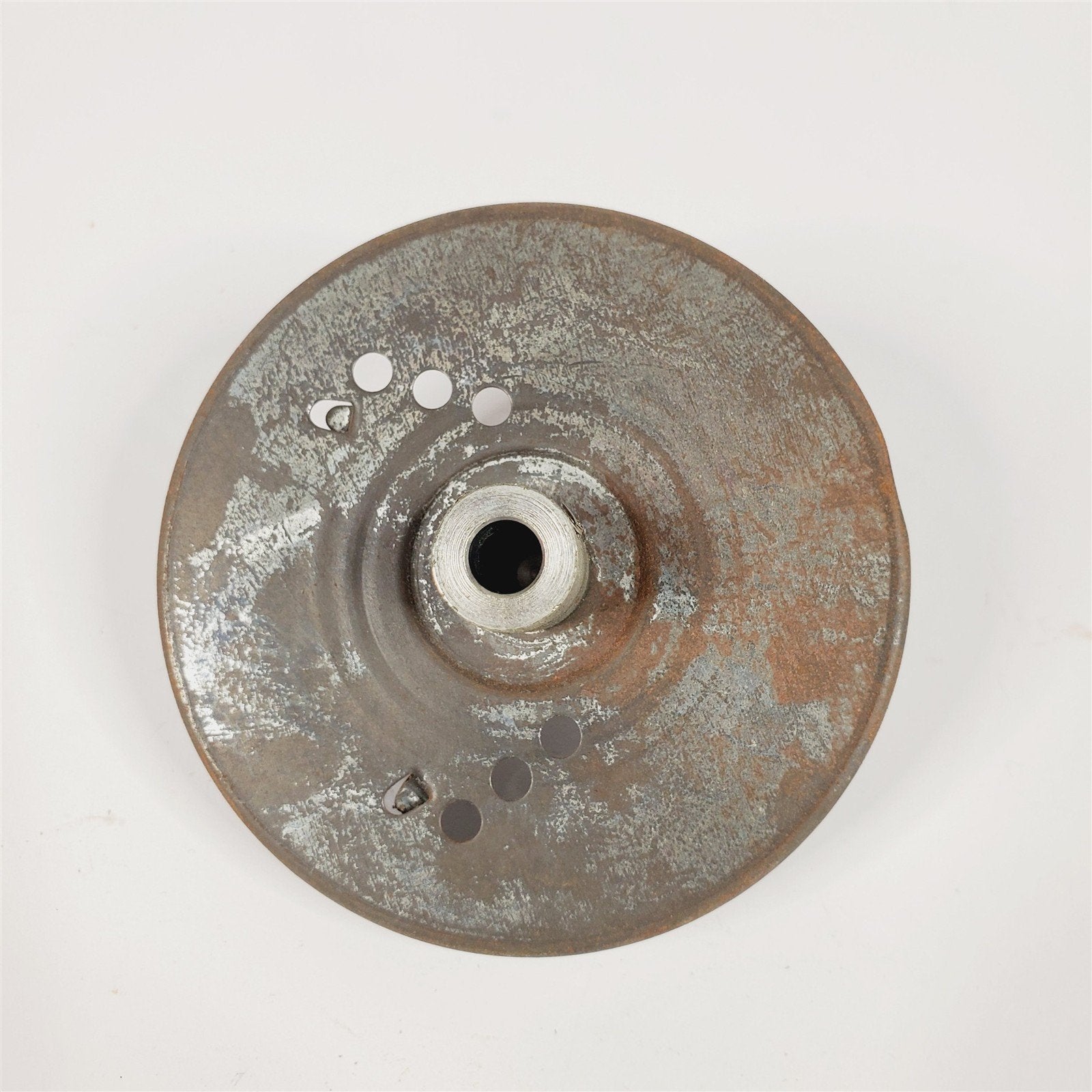

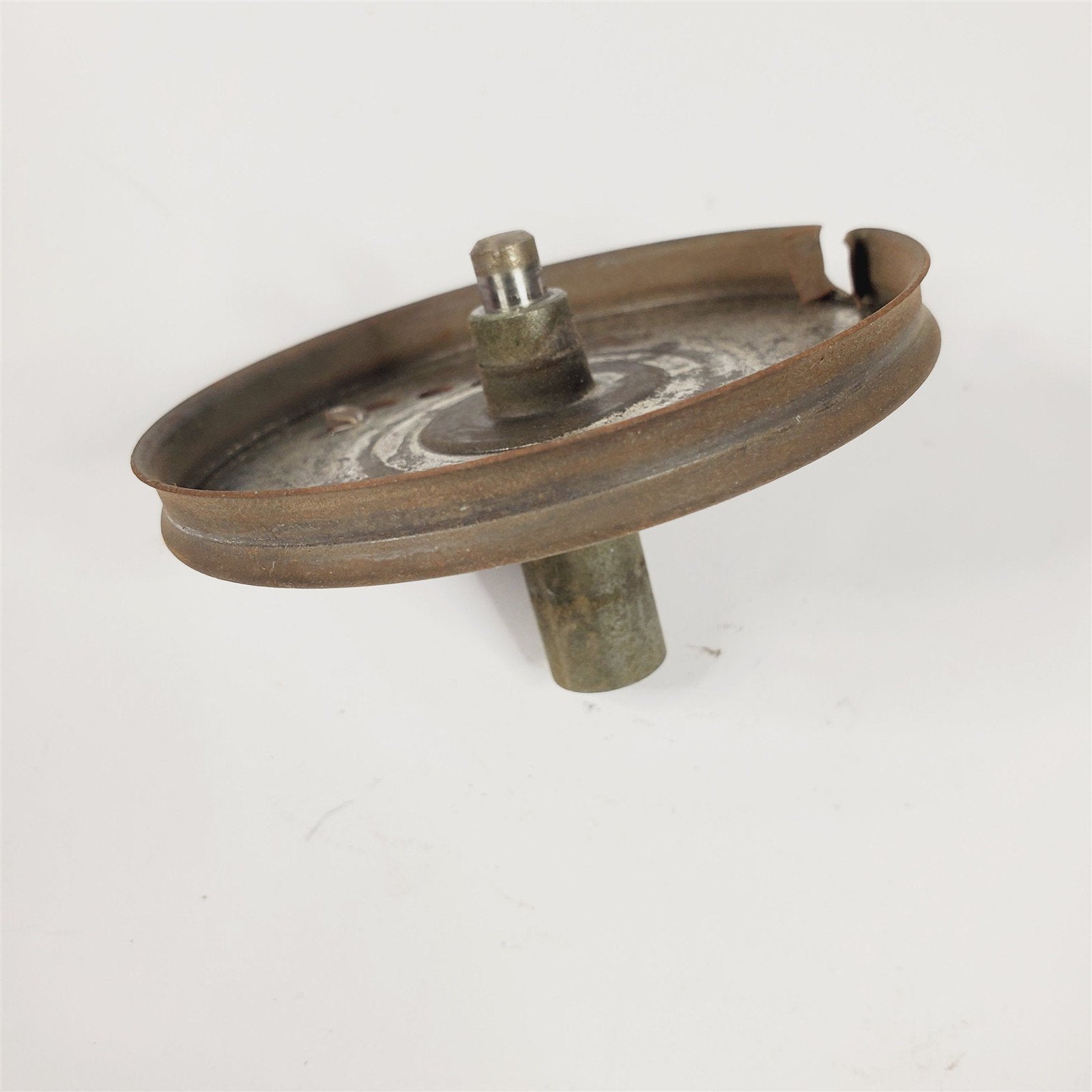

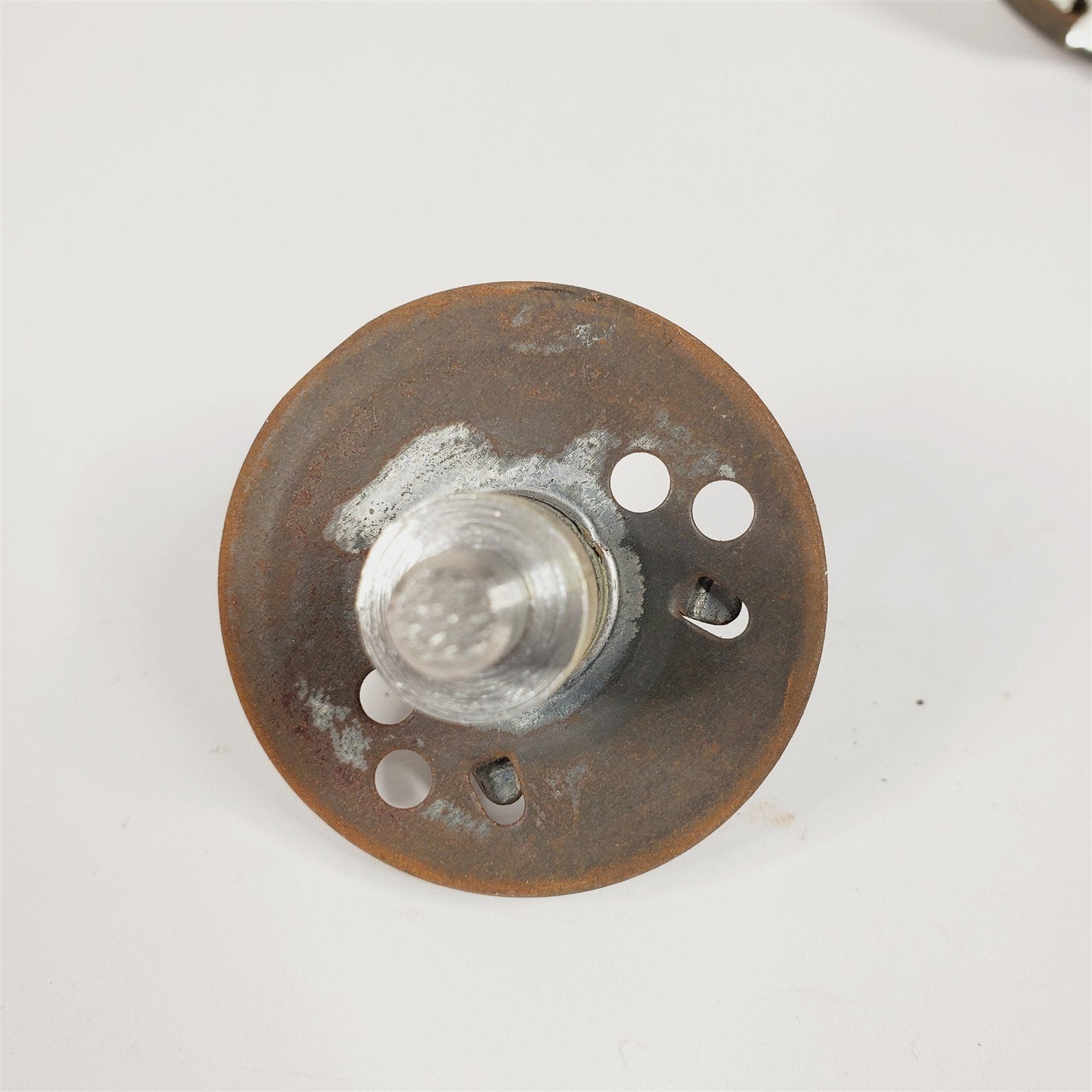

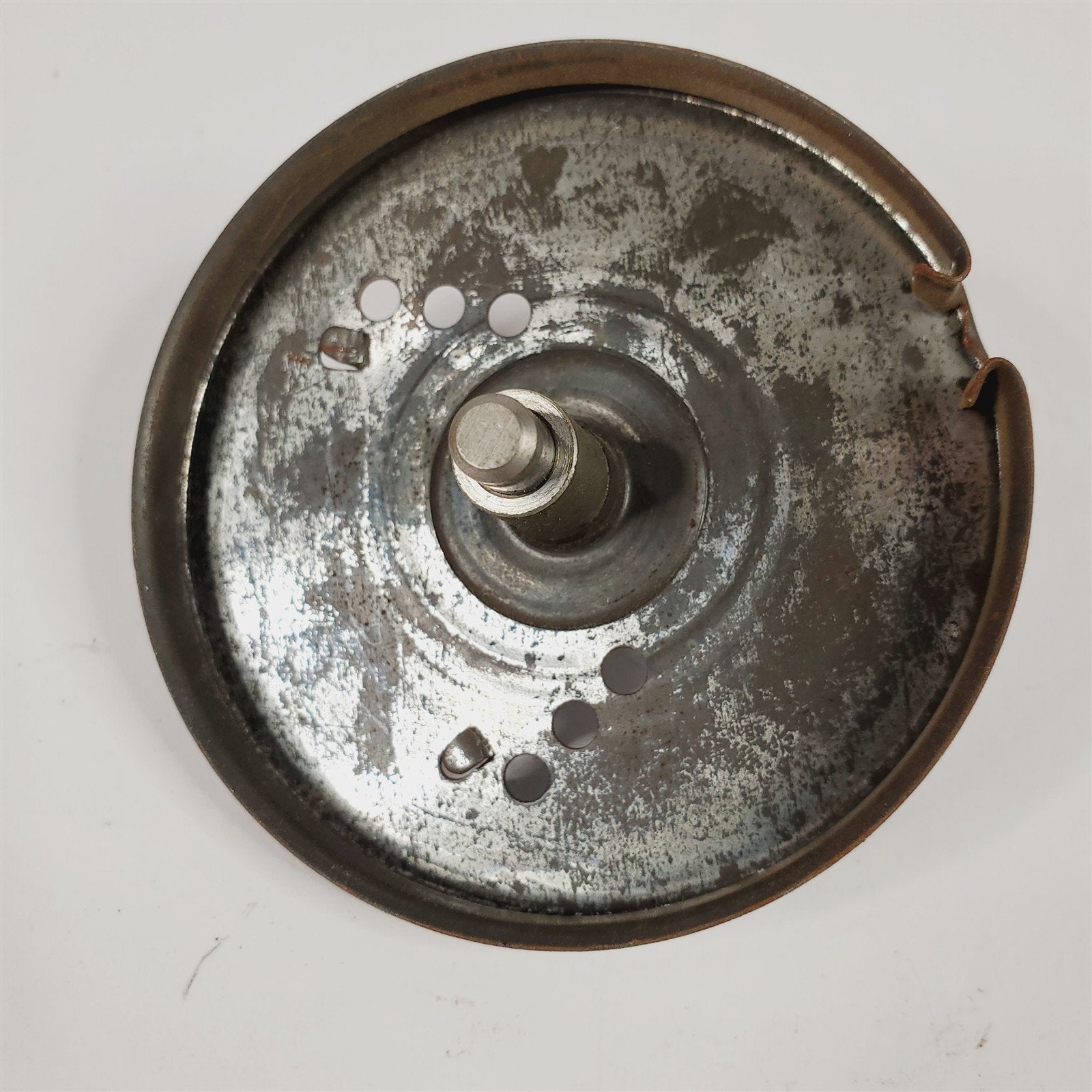

6-2-15	Collins	544-6964-002	544-6964-002	DRUM, TUNING

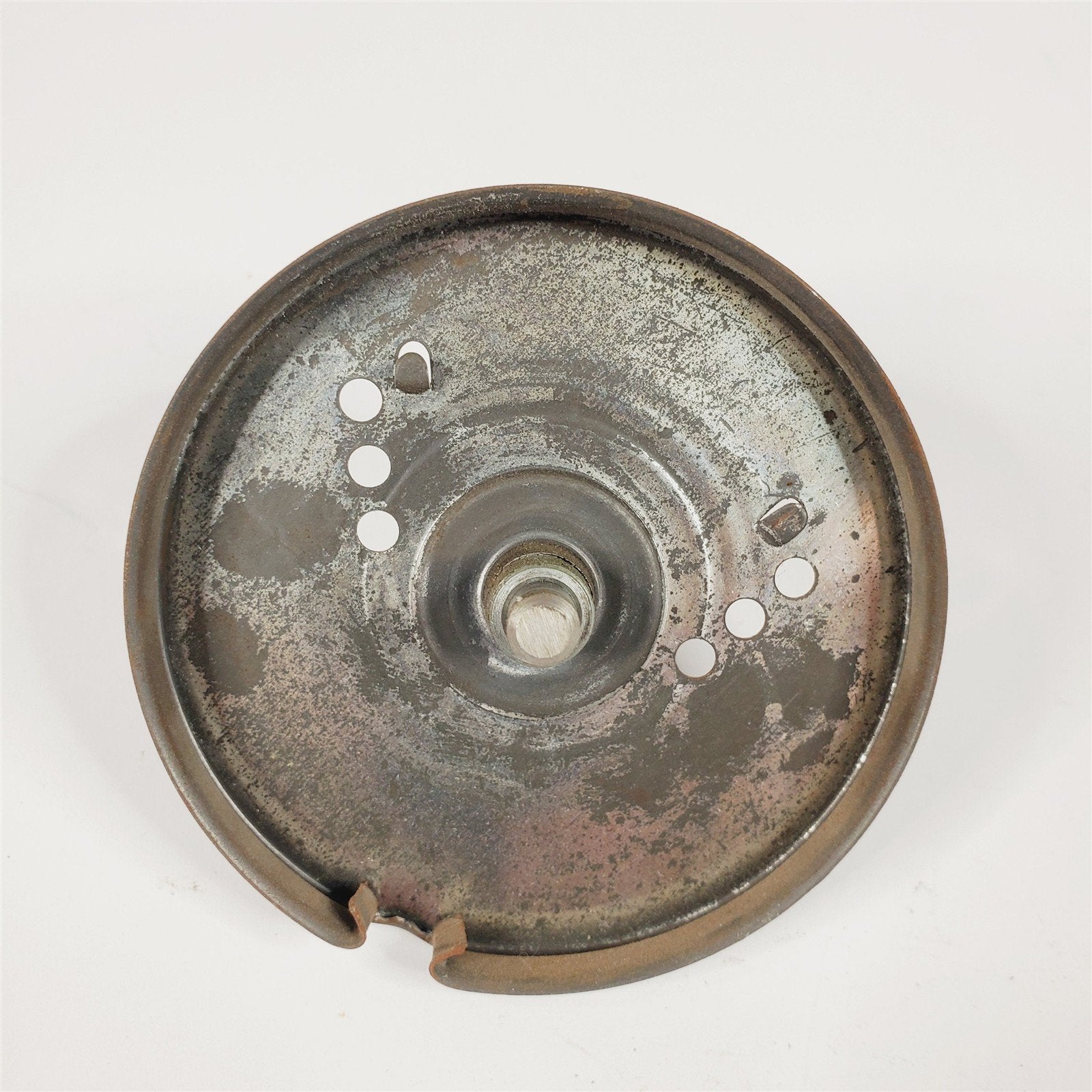

6-2-16	Collins	544-6962-002	544-6962-002	DRUM, LOADING
6-2-17	Collins	544-6945-002	544-6945-002	PLATE REAR
6-2-18	Collins	540-9468-003	540-9468-003	POST
6-2-19	Collins	544-6929-002	544-6929-002	BLOCK,CHASSIS

6-2-23	Collins	544-6937-002	544-6937-002	SHAFT, SWITCH
6-2-24	Collins	544-6967-002	544-6967-002	COLLAR, SHAFT
6-2-25	Collins	544-6949-002	544-6949-002	PULLEY DRIVE
6-2-26	Collins	544-6932-002	544-6932-002	HUB, PULLEY
6-2-27	Military Standards	SP2-15	281-0057-000	PULLEY GROOVE
6-2-28	Collins	544-6979-002	544-6979-002	BRACKET, SWITCH
6-2-29	Collins	544-6980-002	544-6980-002	BRACKET ANGLE
6-2-30	Chrysler Corp.	F346-4MILL6085	309-0124-000	BEARING, SLEEVE

6-2-31	Penn Engineering and Mfg. Co.	CL632-2C	334-0066-000	NUT, PLAIN, CADMIUM PLATED STEEL, 6-32
6-2-32	Collins	544-6946-002	544-6946-002	COUPLER, SHAFT
6-2-33	Collins	544-6938-002	544-6938-002	SHAFT BEARING
6-2-34	Military Standards	SP3-22	281-0054-000	PULLEY, GROOVE
6-2-35	Collins	544-6934-002	544-6934-002	COUPLER, SHAFT
6-2-36	Collins	545-7601-002	545-7601-002	BRACKET, SWITCH
6-2-37	Chrysler Corp.	F347-4MILL6085	309-0125-000	BEARING, SLEEVE
6-2-38	Collins	545-7600-002	545-7600-002	BRACKET, SWITCH
6-2-39	Collins	544-6899-002	544-6899-002	PULLEY,SWITCH
6-2-40	Collins	544-6898-002	544-6898-002	HUB, PULLEY
6-2-41	Military Standards	SP2-15	281-0057-000	PULLEY, GROOVE
6-2-42	Collins	544-6942-002	544-6942-002	BRACKET,LOADING
6-2-43	Chrysler Corp.	F346-4MILL6085	309-0124-000	BEARING, SLEEVE

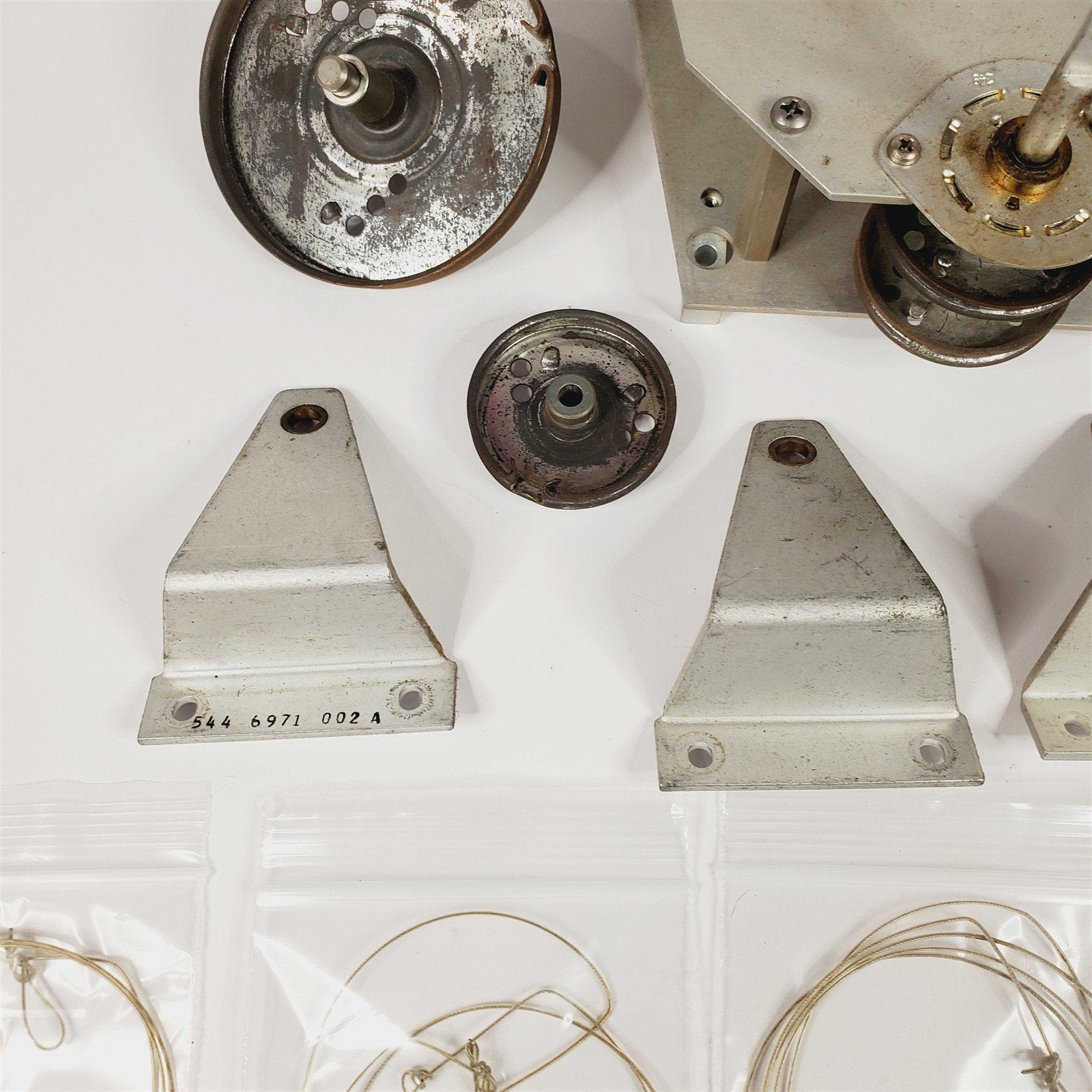

6-2-44	Collins	544-6971-002	544-6971-002	BRACKET, LOADING
6-2-45	Collins	544-6947-002	544-6947-002	COUPLER, SHAFT
6-2-46	Collins	544-6938-002	544-6938-002	SHAFT BEARING
6-2-47	Military Standards	SP4-28	281-0019-000	PULLEY, GROOVE
6-2-48	Collins	544-6935-002	544-6935-002	COUPLER, SHAFT
6-2-49	Collins	544-6943-002	544-6943-002	BRACKET, LOADING
6-2-50	Chrysler Corp.	F346-4MILL6085	309-0124-000	BEARING, SLEEVE
6-2-51	Collins	544-6972-002	544-6972-002	BRACKET, LOADING
6-2-52	Collins	544-6948-002	544-6948-002	COUPLER, SHAFT
6-2-53	Collins	544-6938-002	544-6938-002	SHAFT, BEARING
6-2-54	Military Standards	SP4-28	281-0019-000	PULLEY, GROOVE
6-2-55	Collins	544-6936-002	544-6936-002	COUPLER, SHAFT

This is a part from a very nice Collins 30S-1 Linear Power Amplifier. We purchased this unit because we thought it came from the same estate that we are processing all of our Engineering Equipment from. It is not from the same estate, but it is better than the one described in our inventory notes from the estate.

We do not have equipment to test the amplifier, but we powered it on and are professionally testing most of the components, including sending the Eimac Tetrode tube to have it tested by Richardson Electronics.

To see all of the 30S-1 parts we have for sale, click on this link for our Shopify store: Collins 30S-1 parts for sale on vegasclassicparts.com
OR this link to our ebay store: Collins 30S-1 Parts for sale by Vegas Classic Parts

We usually ship within one business day! International buyers are responsible for any customs/duty fees.

We use high quality shipping supplies and biodegradable peanuts to make sure your items arrive safely.
Some equipment will be contracted for professional packing and shipping by Las Vegas Craters, UPS or FedEx Ground.

Manufacturing technology was not the same as it is today so imperfections should be expected.
Also, these items may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
