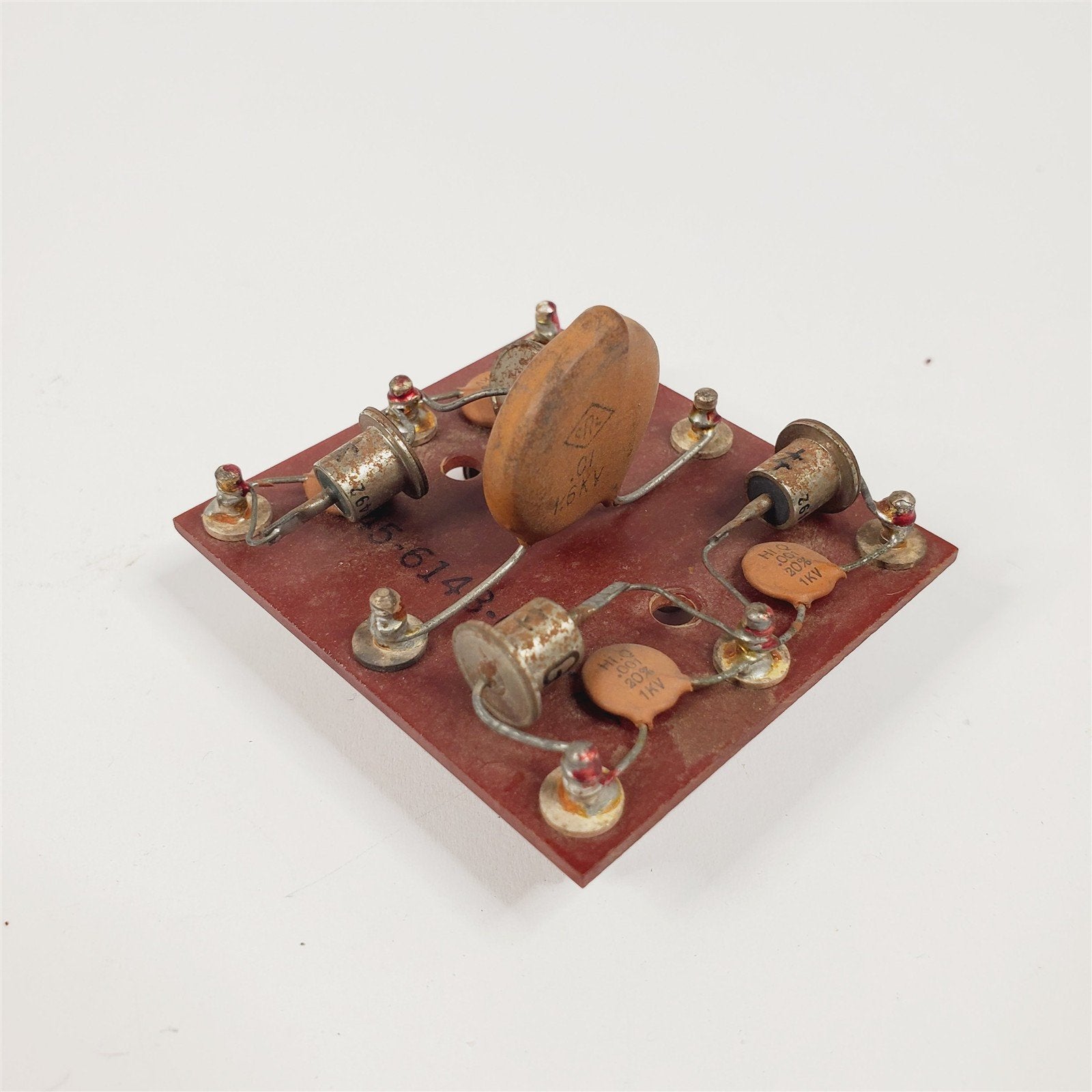

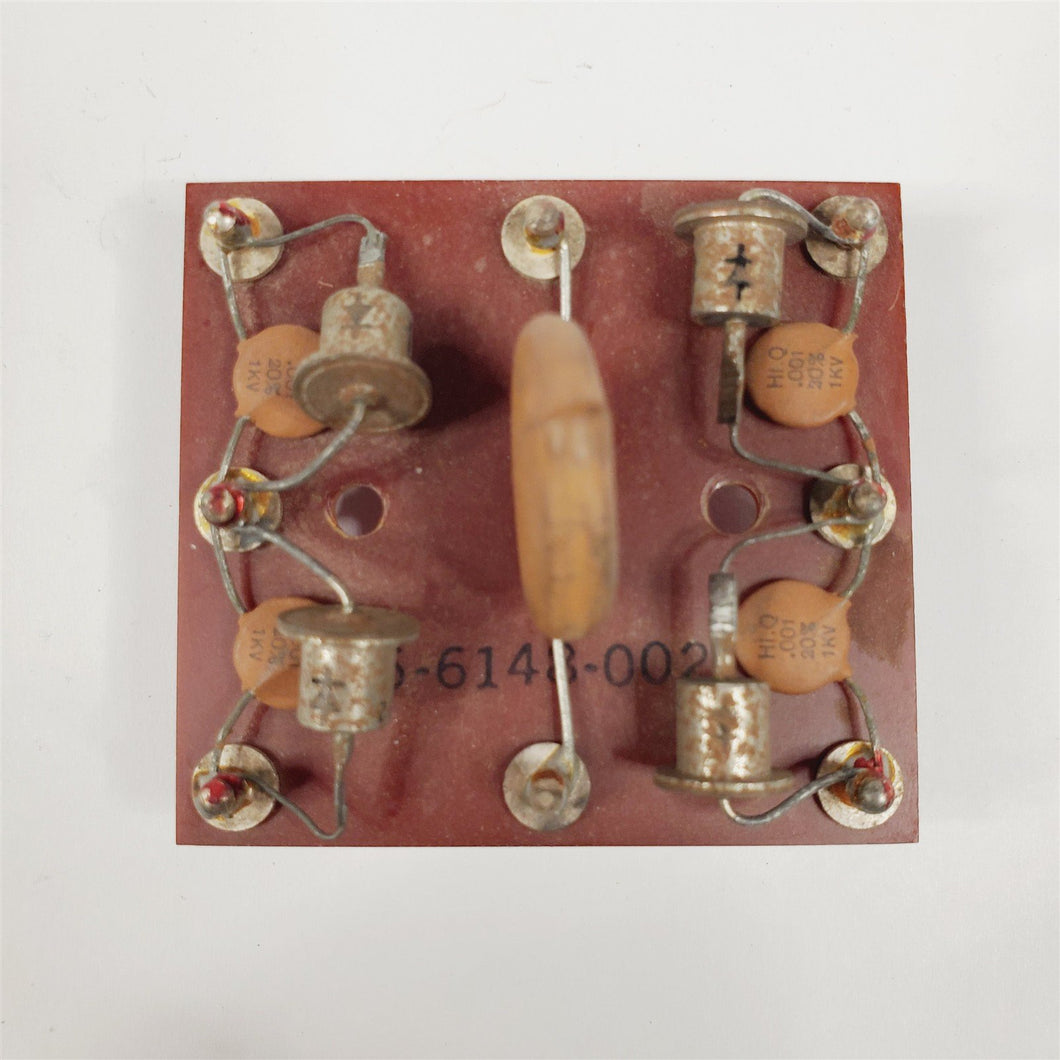

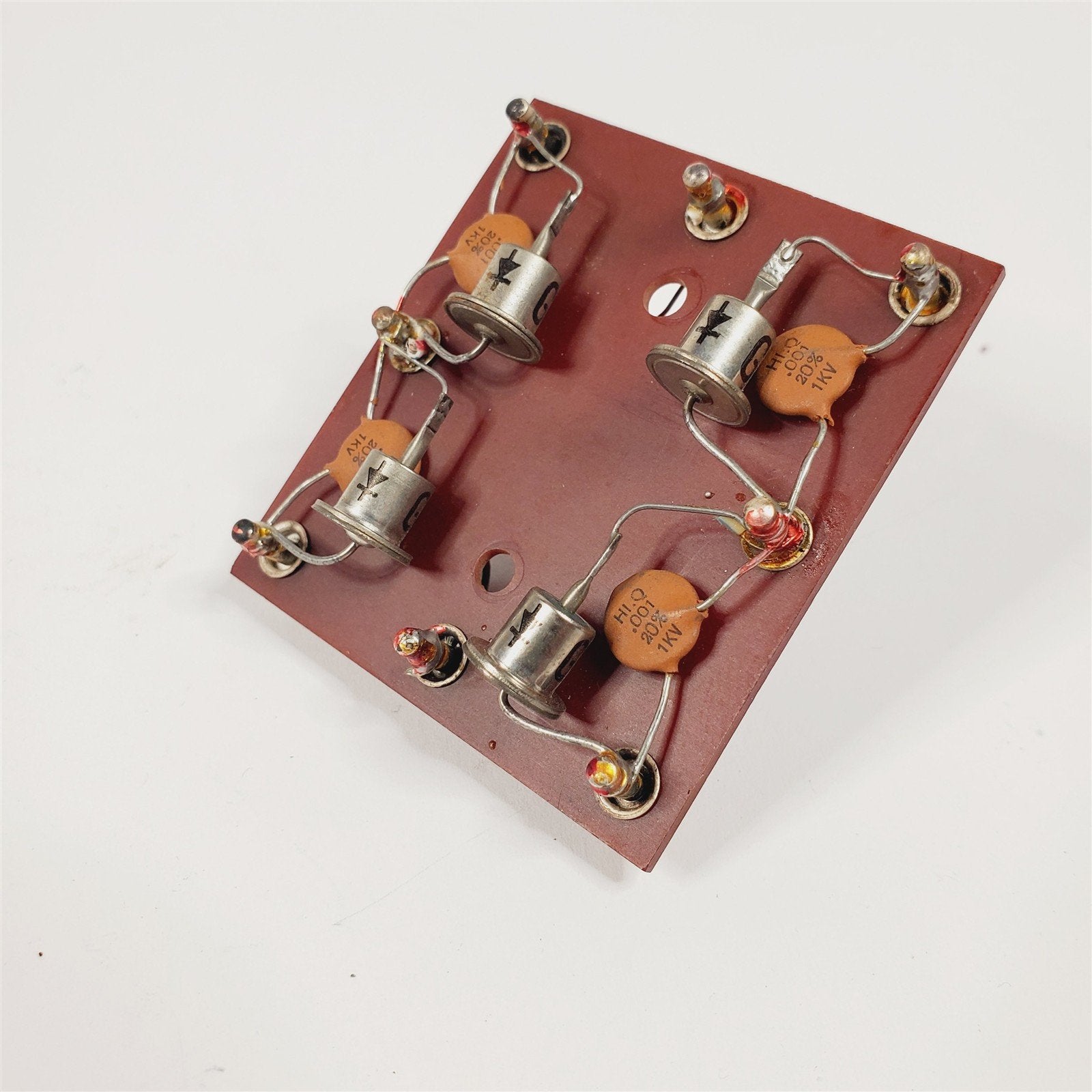

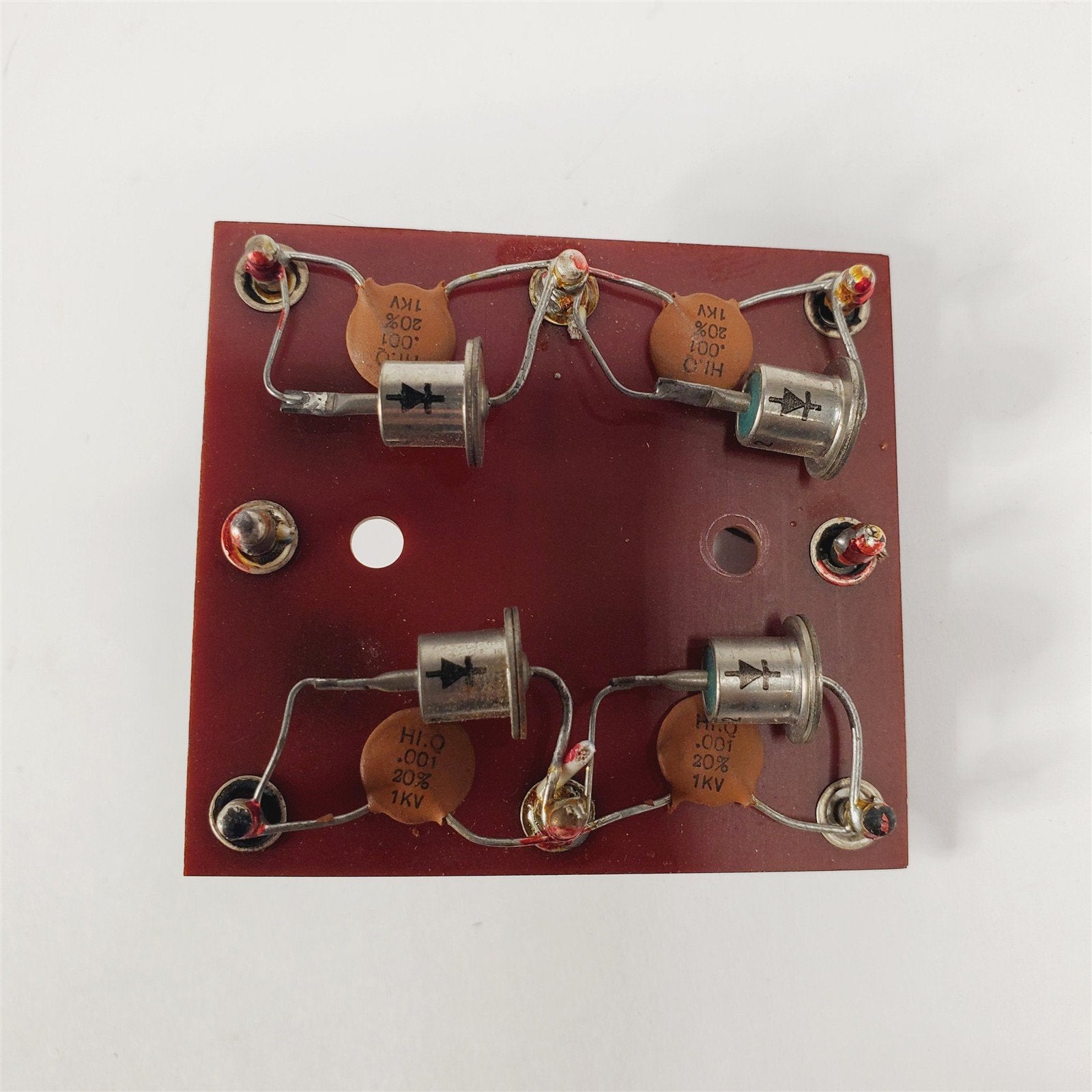

Rectifier Assembly from Collins 30S-1 RF Amplifier 609-0691-001
Used condition with scuffs & scratches from previous use, storage and handling.
| FIG-ITEM |
MANUFACTURER |
PART NO |
COLLINS P/N |
COMPONENT |
DESCRIPTION |
| 6-7-01 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR203 |
SEMICONDUCTOR DEVICE |
| 6-7-02 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C253 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000V |
| 6-7-03 |
Sprague Electric Co. |
40C 286A |
913-3742-000 |
C256 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000V |
| 6-7-04 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR204 |
SEMICONDUCTOR DEVICE |
| 6-7-05 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR202 |
SEMICONDUCTOR DEVICE |
| 6-7-06 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C258 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000 V |
| 6-7-07 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR206 |
SEMICONDUCTOR DEVICE |
| 6-7-08 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR209 |
SEMICONDUCTOR DEVICE |
| 6-7-09 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C251 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000V |
| 6-7-10 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR201 |
SEMICONDUCTOR DEVICE |
| 6-7-11 |
Centralab Electronics |
DD16-103 |
913-3522-000 |
C221 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.01UF, GMV, 1600V |
| 6-7-12 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C255 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000 V |
| 6-7-13 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR215 |
SEMICONDUCTOR DEVICE |
| 6-7-14 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR214 |
SEMICONDUCTOR DEVICE |
| 6-7-15 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C254 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000 V |
| 6-7-16 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR213 |
SEMICONDUCTOR DEVICE |
| 6-7-17 |
Sprague Electric Co. |
400286A |
913-3742-000 |
C252 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000 v |
| 6-7-18 |
Sprague Electric Co. |
40C286A |
913-3742-000 |
C257 |
CAPACITOR, FIXED, CERAMIC DIELECTRIC, 0.001UF, 20%, 1000 V |
| 6-7-19 |
Motorola, Inc. |
1N4005 |
353-6442-050 |
CR212 |
SEMICONDUCTOR DEVICE |
| 6-7-20 |
Collins |
609-0690-001 |
609-0690-001 |
|
TERMINAL BOARD |
| 6-7-21 |
Cambridge Thermionic Corp. |
11438 |
306-0200-000 |
|
TERMINAL, FEEDTHROUGH |
| 6-7-22 |
Collins |
609-0689-000 |
609-0689-000 |
|
TERMINAL BOARD |
This is a part from a very nice Collins 30S-1 Linear Power Amplifier. We purchased this unit because we thought it came from the same estate that we are processing all of our Engineering Equipment from. It is not from the same estate, but it is better than the one described in our inventory notes from the estate.
We do not have equipment to test the amplifier, but we powered it on and are professionally testing most of the components, including sending the Eimac Tetrode tube to have it tested by Richardson Electronics.
To see all of the 30S-1 parts we have for sale, click on this link for our Shopify store: Collins 30S-1 parts for sale on vegasclassicparts.com
OR this link to our ebay store: Collins 30S-1 Parts for sale by Vegas Classic Parts
We usually ship within one business day! International buyers are responsible for any customs/duty fees.
We use high quality shipping supplies and biodegradable peanuts to make sure your items arrive safely.
Some equipment will be contracted for professional packing and shipping by Las Vegas Craters, UPS or FedEx Ground.
Manufacturing technology was not the same as it is today so imperfections should be expected.
Also, these items may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
