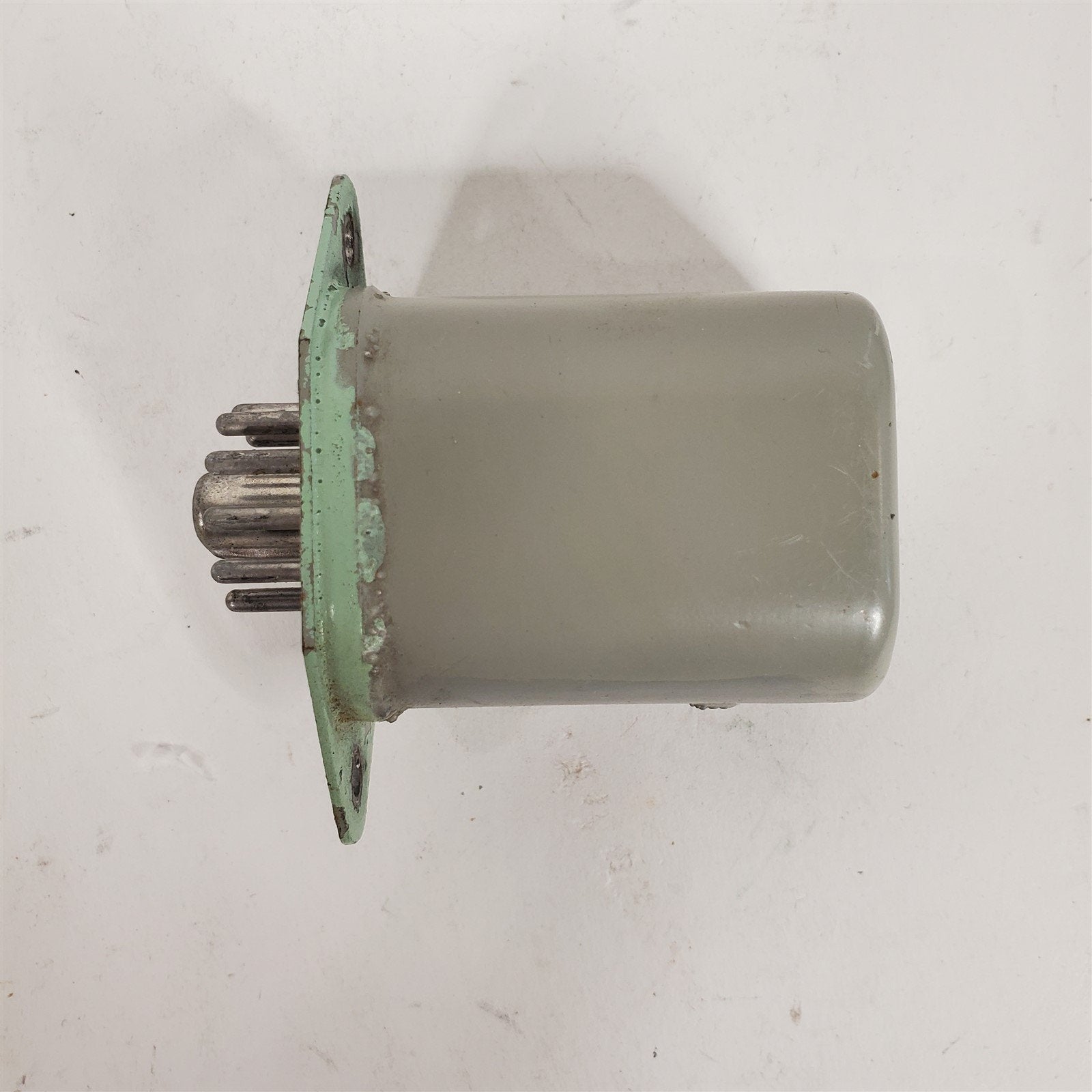

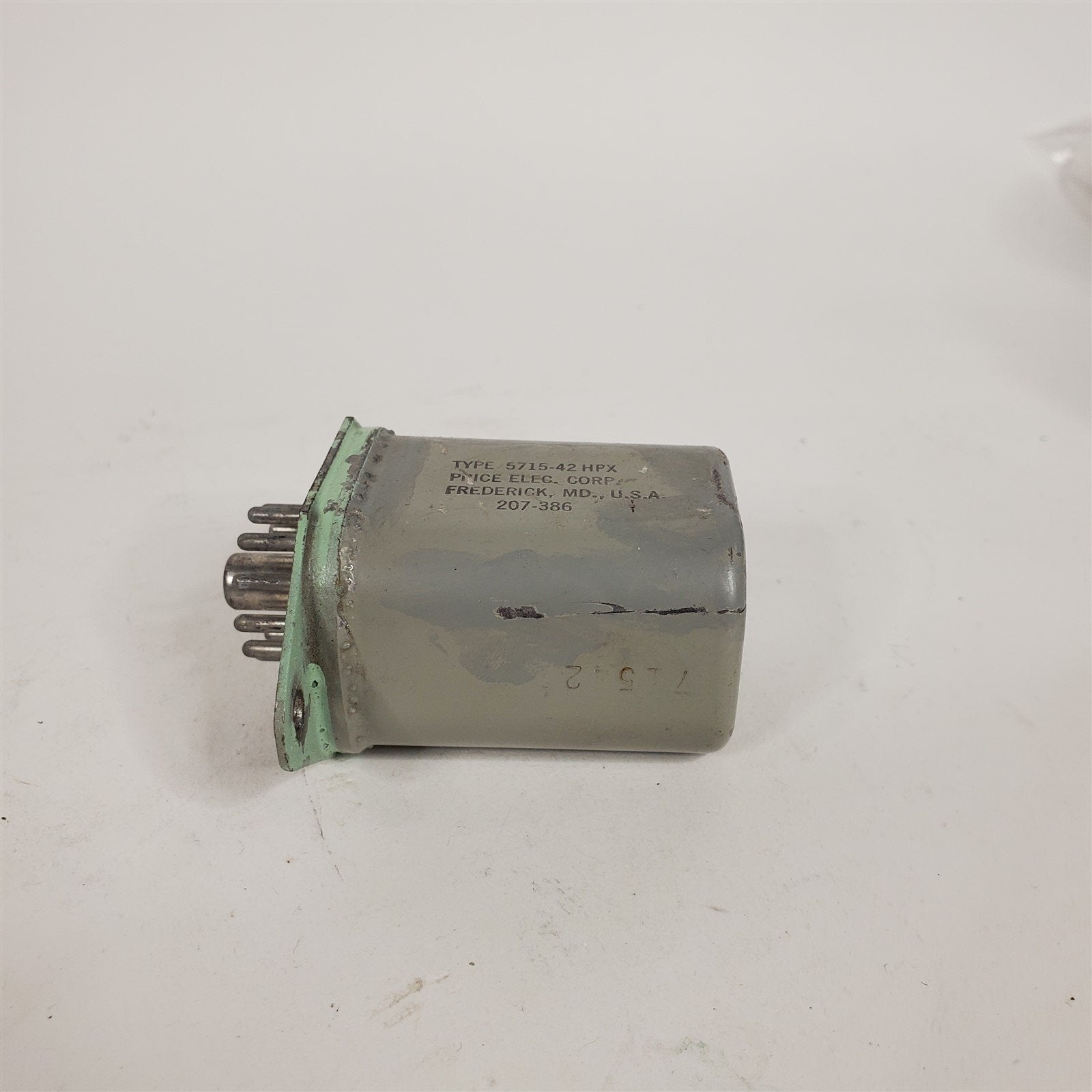

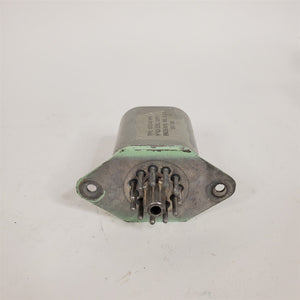

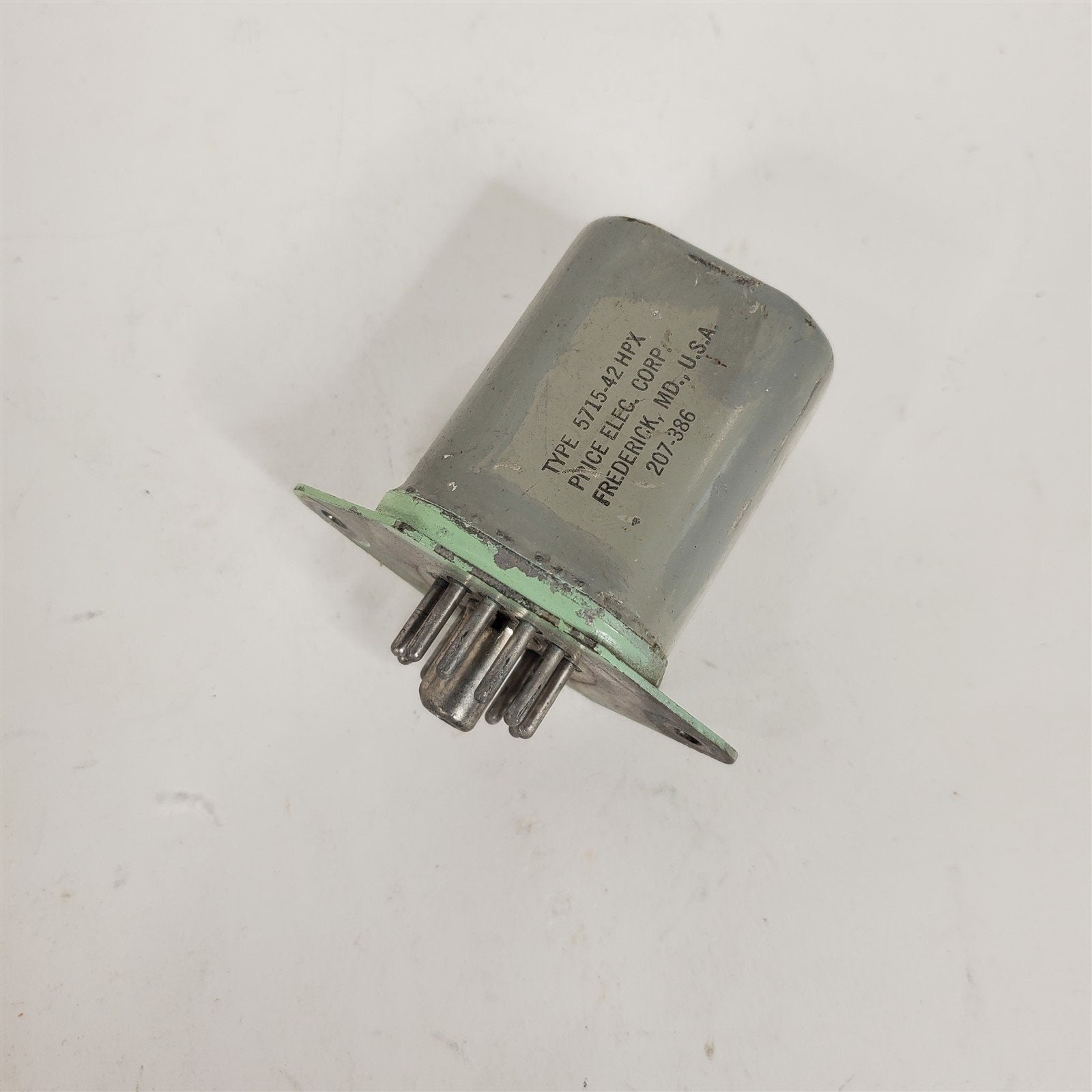

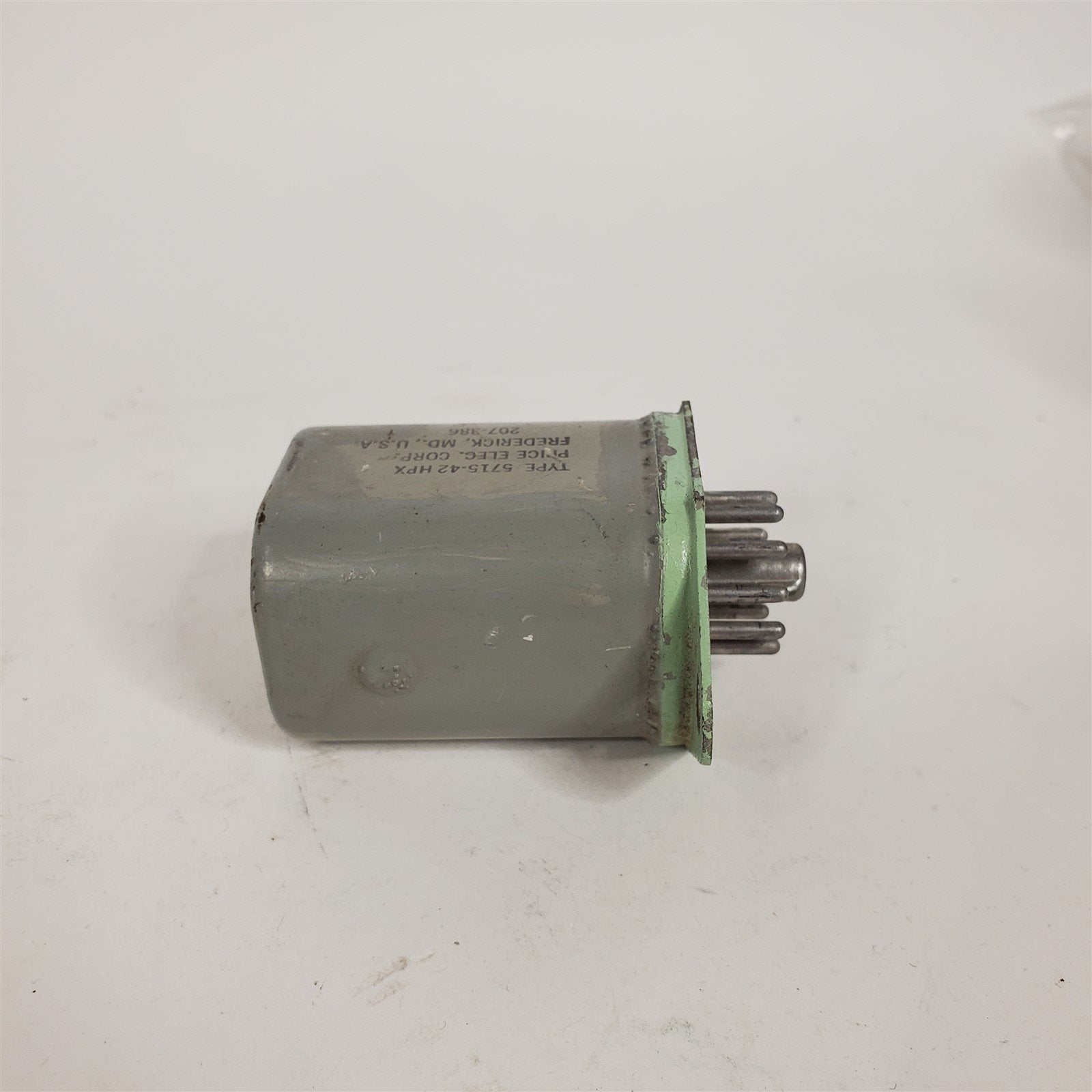

Relay 3-Pole, Double Throw, One Position Momentary 11-Pin Tube Base 5715-42HPX
This relay has some paint along the base, but was removed from a New Old Stock Mil-Std Aircraft Mini Air Compressor

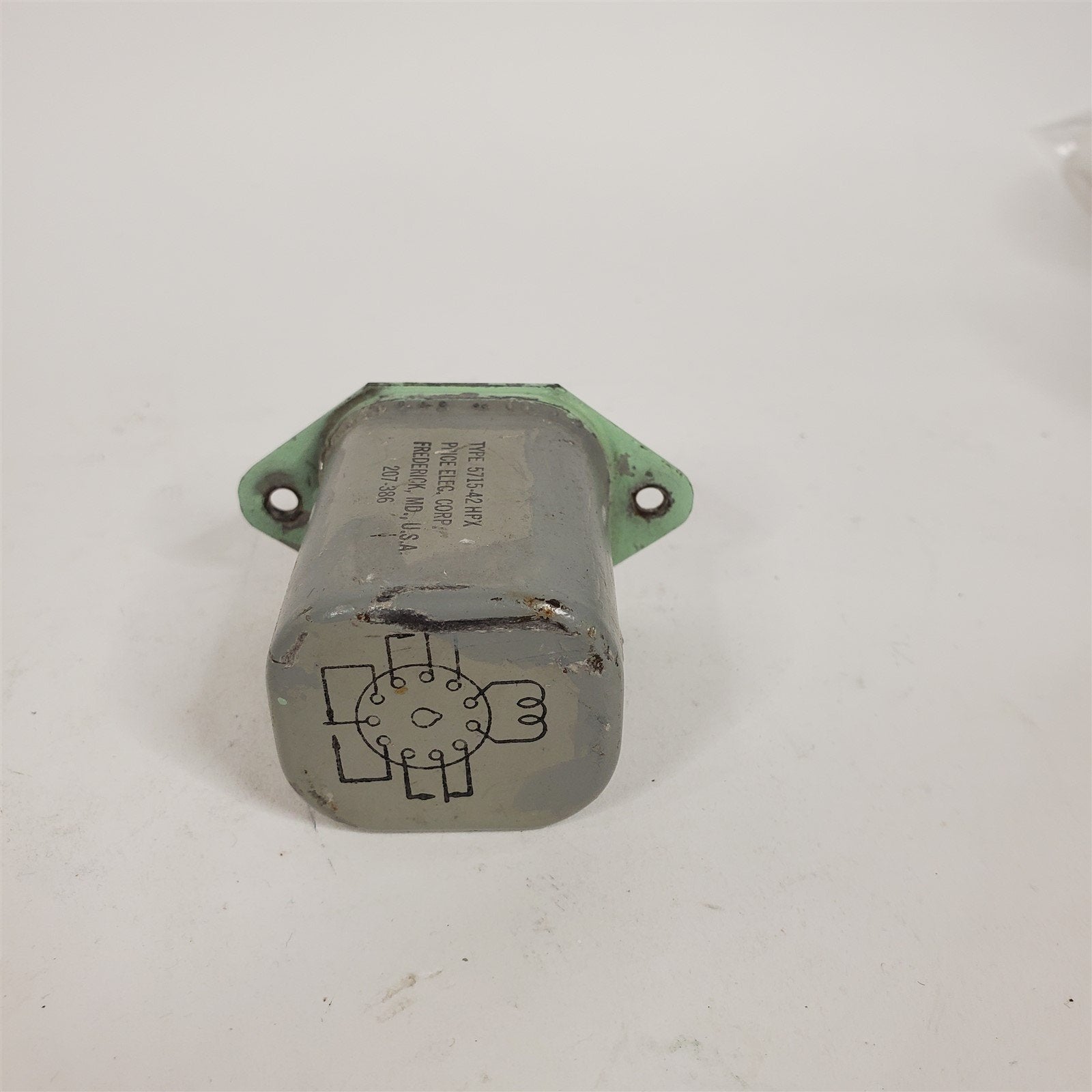

Please note schematic of pin layout is printed on the top of the can
Overall Length: 2.875 inches
Center to Center Distance Between Mounting Facilities Parallel to Length: 2.250 inches
Overall Height: 2.500 inches
Overall Width: 1.750 inches
Environmental Protection: Dustproof
Unthreaded Mounting Hole Diameter: 0.125 inches
Winding Quantity: 1
Coil Quantity: 1
Duty Type: Continuous
Mounting Facility Type and Quantity: 2 unthreaded hole
Mounting Facility Pattern: In-line
Nonpile-up Main Contact Arrangement: 3 pole, double throw, one position momentary
Operating Voltage Rating and Type at Specified Temp: 28.0 volts dc 25 deg celsius single winding
Main Contact Maximum Voltage Rating in Volts: 208.0 ac
Terminal Type and Quantity: 1 standard tube base all functions
