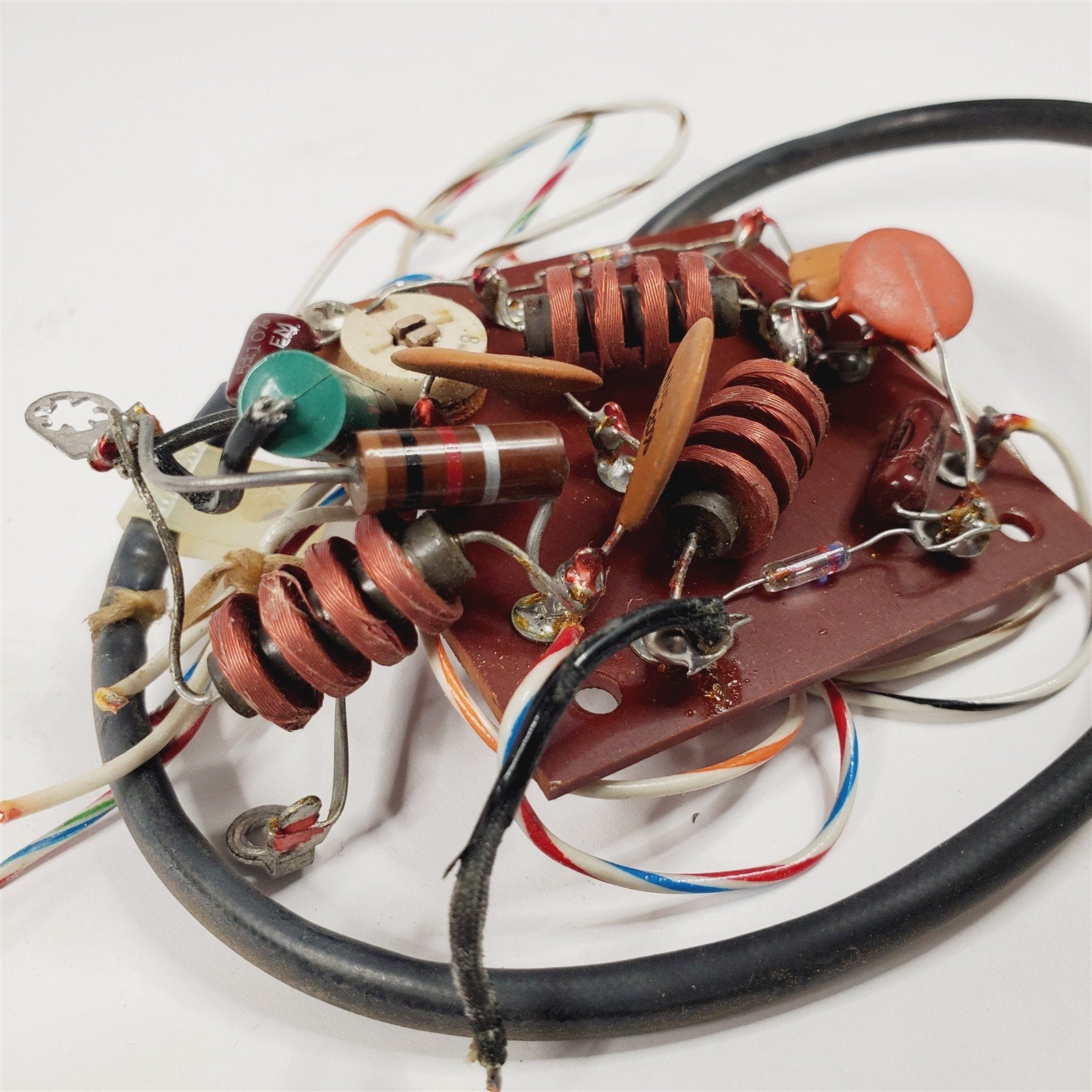

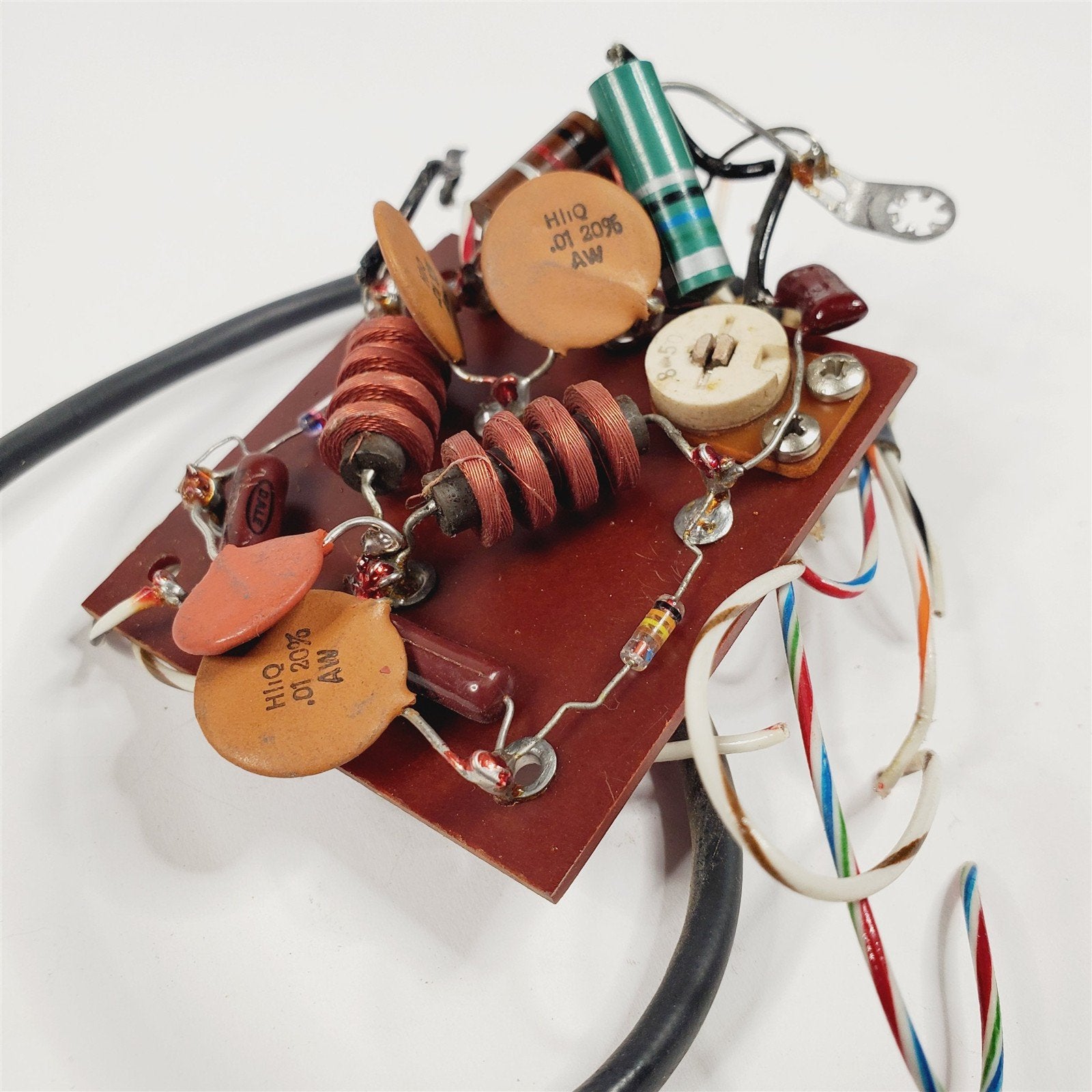

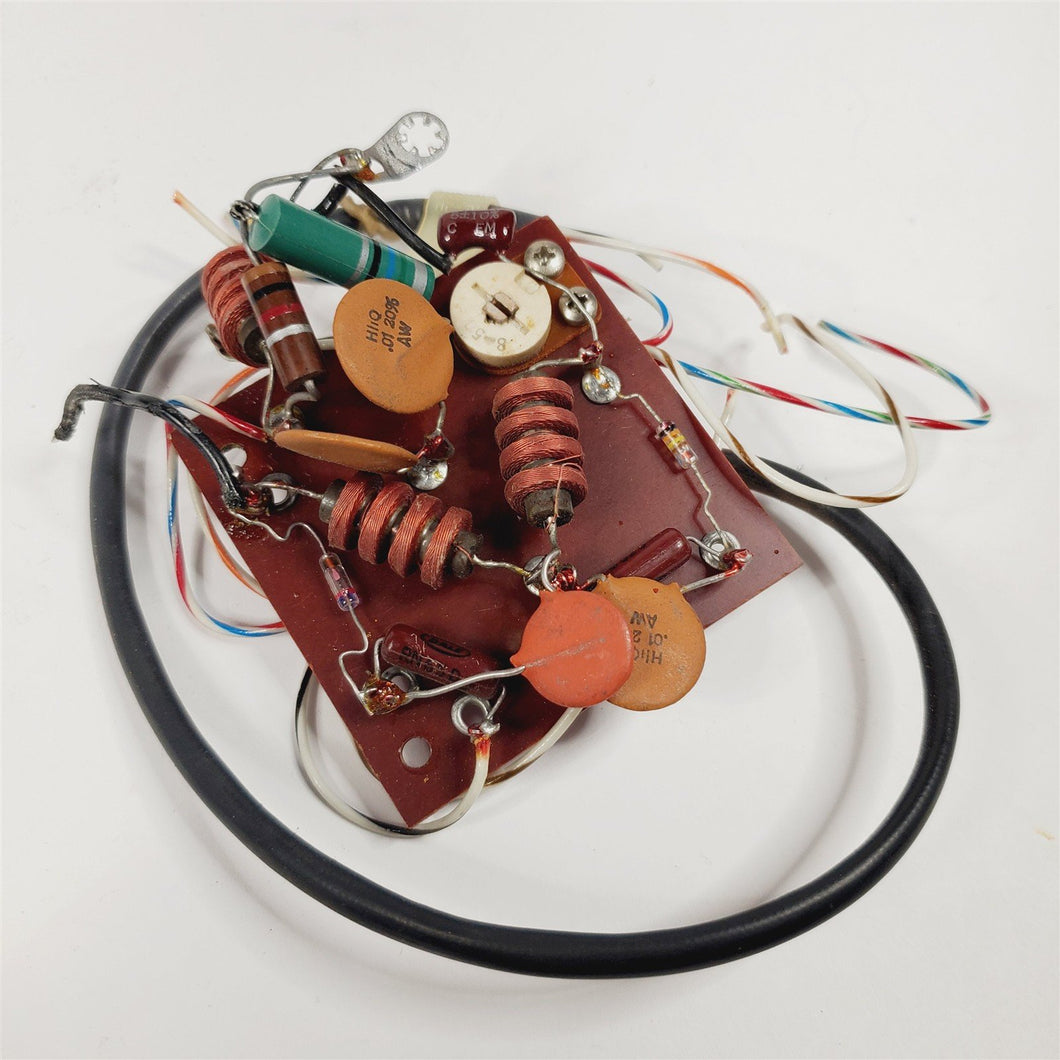

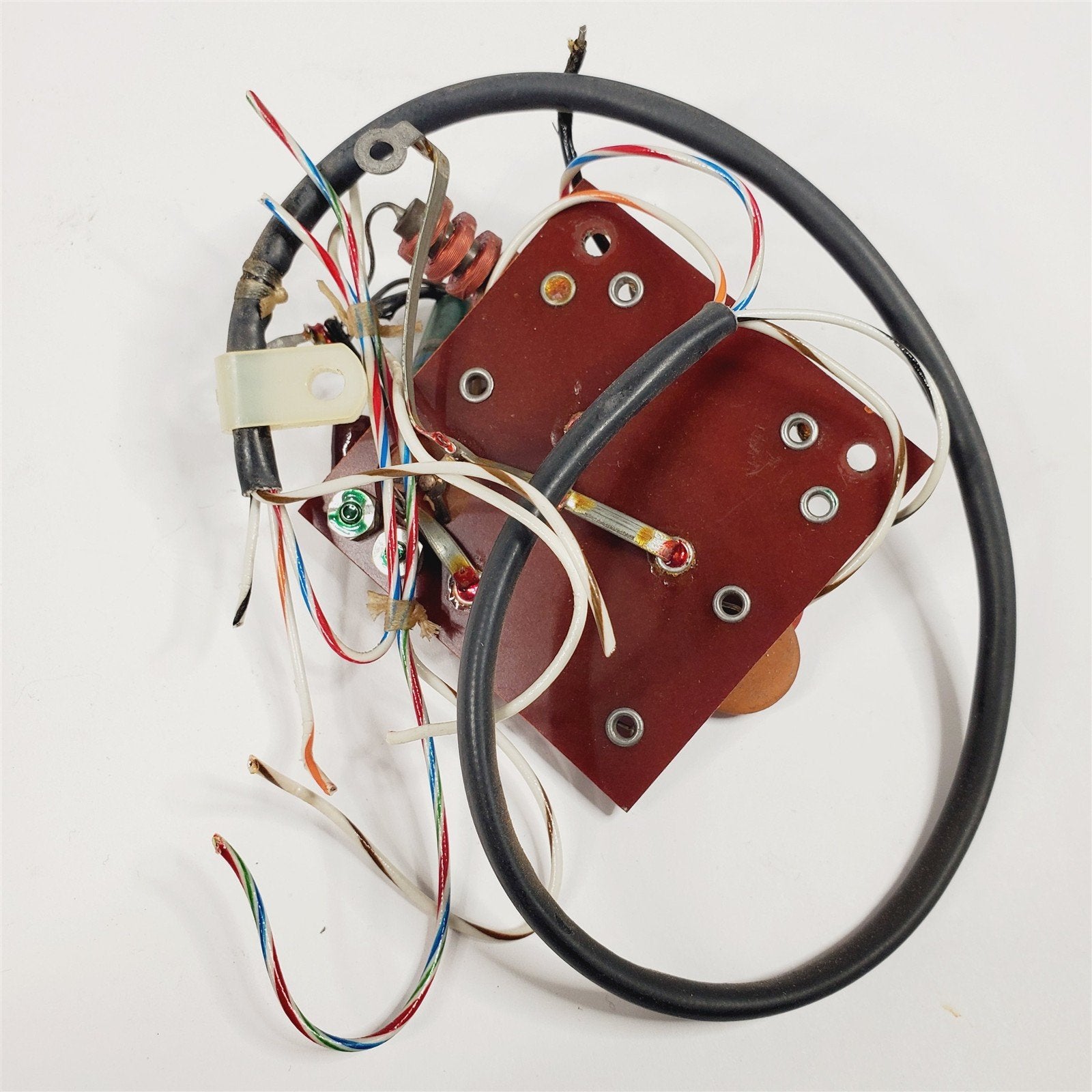

Terminal Board Assembly 6-3 from Collins 30S-1 RF Amplifier 544-6883-000

Used condition with scuffs & scratches from previous use, storage and handling.

FIG-ITEM MANUFACTURER PART NO COLLINS P/N COMPONENT DESCRIPTION
6-3-01 Erie Technological Products, Inc. 557-018-8-50E 917-1075-000 C112 CAPACITOR, VARIABLE, CERAMIC DIELECTRIC, 8 TO 75PF, 350V
6-3-02 Gowanda Electronics Corp. 9348 240-0134-000 L107 COIL,RF, 2MH
6-3-03 Collins 544-6886-000 544-6886-000 CR101A.CR101B SEMICONDUCTOR DEVICE, MATCHED PAIR
6-3-04 Military Specifications RN6503832F 705-7172-000 R102 RESISTOR, FIXED, FILM, 38.3K, 1%, 1/2W
6-3-05 Sprague Electric Co. 360175A 913-3013-000 C114 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-3-06 Sprague Electric Co. 36C175A 913-3013-000 C113 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-3-07 Military Specifications RN6503832F 705-7172-000 R101 RESISTOR, FIXED, FILM, 38.3K, 1%, 1/2W
6-3-08 Gowanda Electronics Corp. 9348 240-0134-000 L106 COIL,RF, 2MH
6-3-09 Sprague Electric Co. 36C175A 913-3013-000 C140 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-3-10 Sprague Electric Co. 360175A 913-3013-000 C145 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-3-11 Collins 544-6970-002 544-6970-002 TERMINAL BOARD
6-3-12 TRW Electronic Components 491-32-11-080-93 304-0011-000 TERMINAL, LUG
6-3-13 Collins 544-6969-002 544-6969-002 TERMINAL BOARD

This is a part from a very nice Collins 30S-1 Linear Power Amplifier.  We purchased this unit because we thought it came from the same estate that we are processing all of our Engineering Equipment from.  It is not from the same estate, but it is better than the one described in our inventory notes from the estate.

We do not have equipment to test the amplifier, but we powered it on and are professionally testing most of the components, including sending the Eimac Tetrode tube to have it tested by Richardson Electronics.

To see all of the 30S-1 parts we have for sale, click on this link for our Shopify store: Collins 30S-1 parts for sale on vegasclassicparts.com
OR this link to our ebay store: Collins 30S-1 Parts for sale by Vegas Classic Parts


We usually ship within one business day!  International buyers are responsible for any customs/duty fees.

We use high quality shipping supplies and biodegradable peanuts to make sure your items arrive safely.
Some equipment will be contracted for professional packing and shipping by Las Vegas Craters, UPS or FedEx Ground.

Manufacturing technology was not the same as it is today so imperfections should be expected.
Also, these items may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
