Terminal Boards TB101 TB102 Collins 30S-1 RF Amplifier TRW 1775 306-0035-000
Terminal Boards TB101 TB102 Collins 30S-1 RF Amplifier TRW 1775 306-0035-000
Terminal Boards TB101 TB102 Collins 30S-1 RF Amplifier TRW 1775 306-0035-000

Terminal Boards TB101 TB102 Collins 30S-1 RF Amplifier TRW 1775 306-0035-000

$30.00
$30.00

Only 1 left in stock.

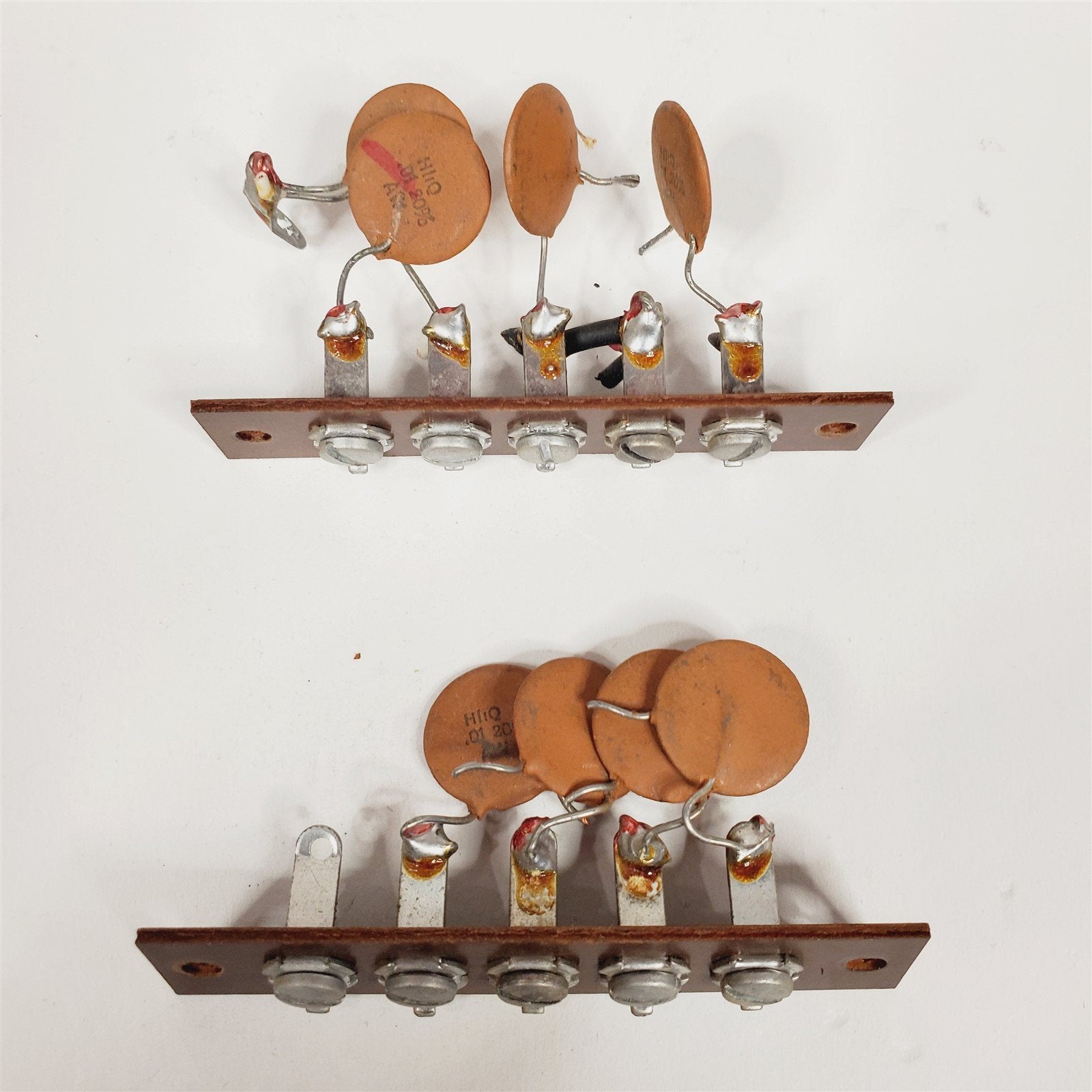

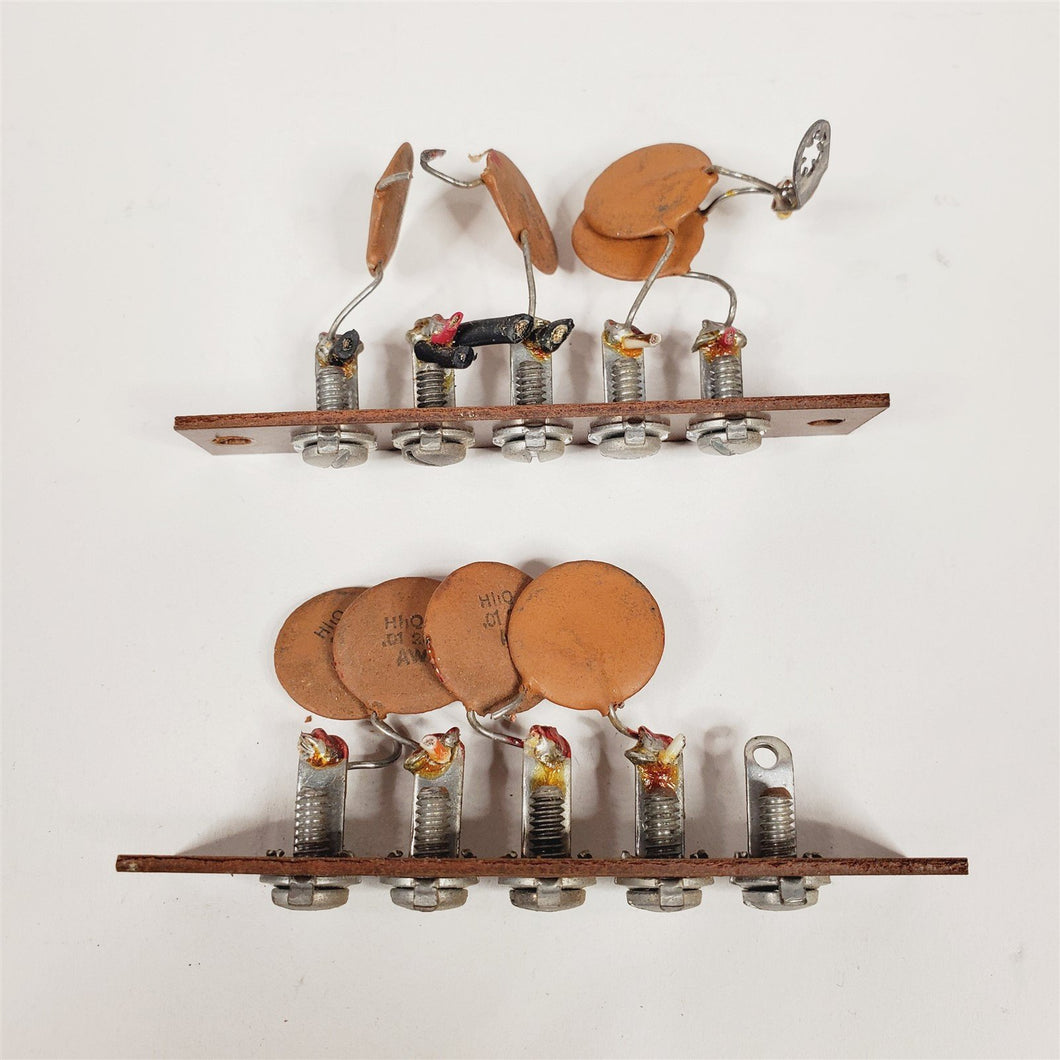

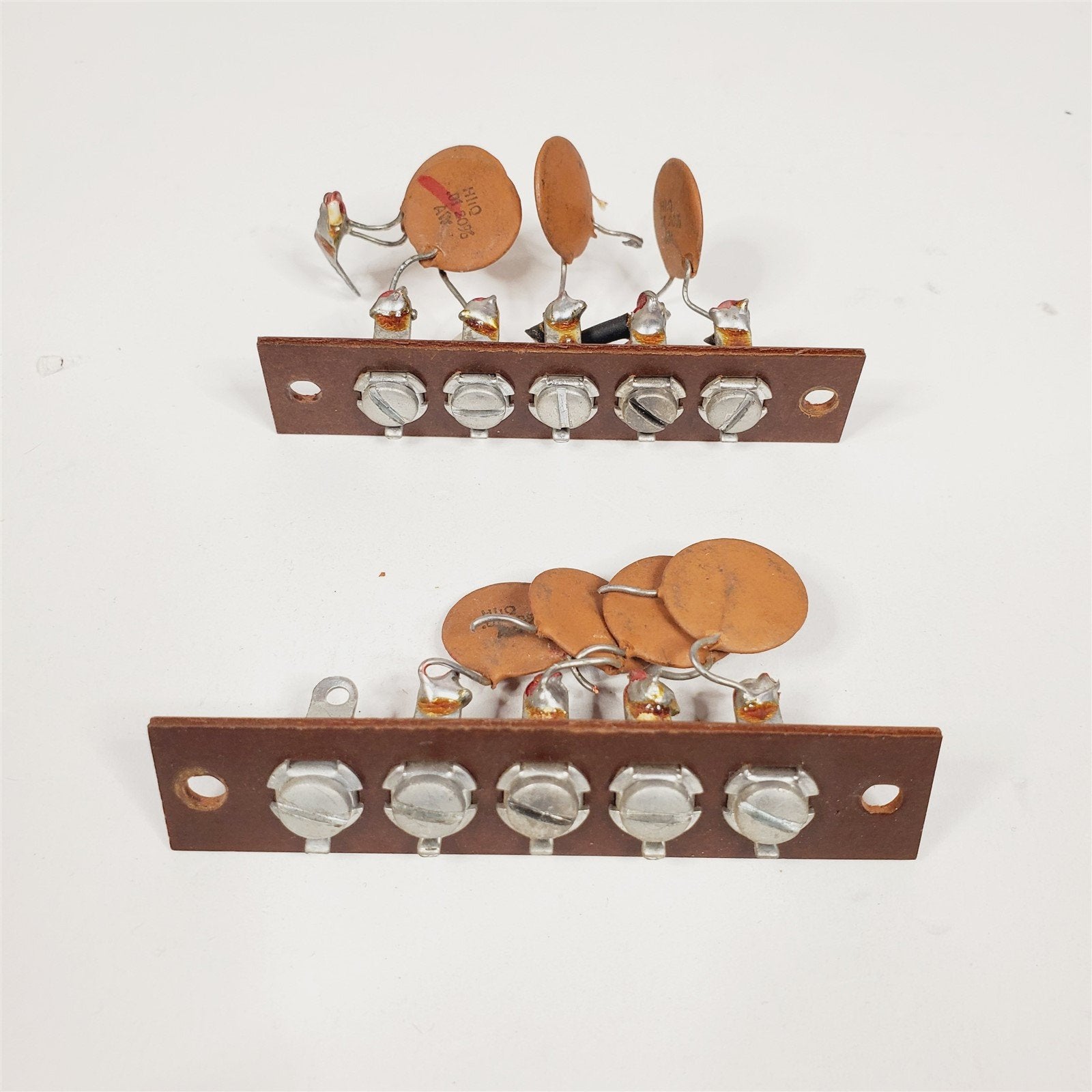

Terminal Boards TB101 TB102 Collins 30S-1 RF Amplifier TRW 1775 306-0035-000

Used condition with scuffs & scratches from previous use, storage and handling. some component wires cut carefully.

FIG-ITEM MANUFACTURER PART NO COLLINS P/N COMPONENT DESCRIPTION
6-2-58 TRW Electronic Components 1775 306-0035-000 TB101 TERMINAL BOARD
6-2-58A TRW Electronic Components 1775 306-0035-000 TB102 TERMINAL BOARD
6-2-0139 Sprague Electric Co. 360175A 913-3013-000 C102 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0140 Sprague Electric Co. 36C175A 913-3013-000 C130 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0141 Sprague Electric Co. 36C175A 913-3013-000 C123 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0142 Sprague Electric Co. 36C175A 913-3013-000 C124 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0143 Sprague Electric Co. 360175A 913-3013-000 C125 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0144 Sprague Electric Co. 360175A 913-3013-000 C128 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0145 Sprague Electric Co. 360175A 913-3013-000 C129 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%, 500V
6-2-0146 Sprague Electric Co. 36C1754 913-3013-000 C142 CAPACITOR, FIXED, CERAMIC DIELECTRIC, 10000PF, 20%,500V

This is a part from a very nice Collins 30S-1 Linear Power Amplifier.  We purchased this unit because we thought it came from the same estate that we are processing all of our Engineering Equipment from.  It is not from the same estate, but it is better than the one described in our inventory notes from the estate.

We do not have equipment to test the amplifier, but we powered it on and are professionally testing most of the components, including sending the Eimac Tetrode tube to have it tested by Richardson Electronics.

To see all of the 30S-1 parts we have for sale, click on this link for our Shopify store: Collins 30S-1 parts for sale on vegasclassicparts.com
OR this link to our ebay store: Collins 30S-1 Parts for sale by Vegas Classic Parts


We usually ship within one business day!  International buyers are responsible for any customs/duty fees.

We use high quality shipping supplies and biodegradable peanuts to make sure your items arrive safely.
Some equipment will be contracted for professional packing and shipping by Las Vegas Craters, UPS or FedEx Ground.

Manufacturing technology was not the same as it is today so imperfections should be expected.
Also, these items may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
