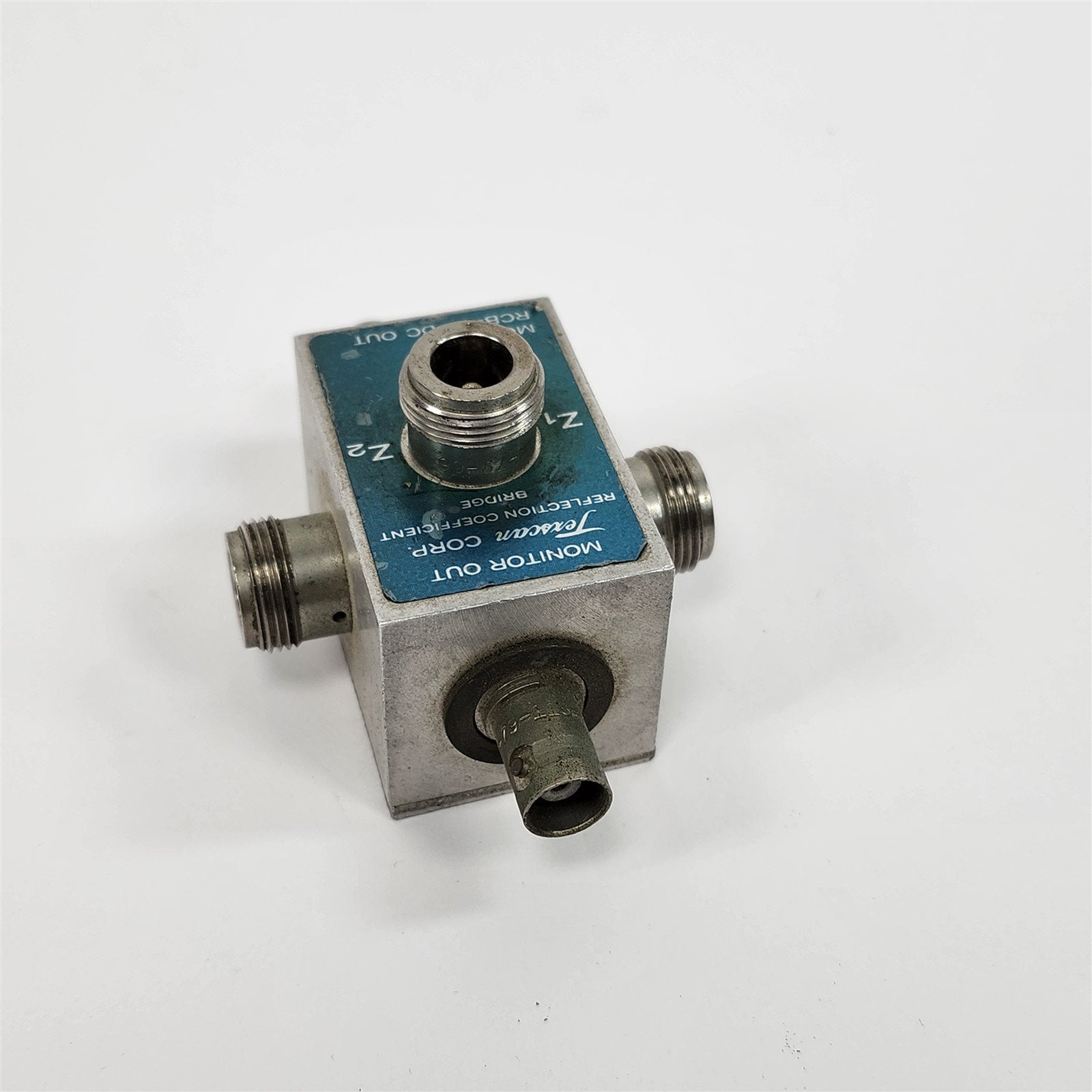

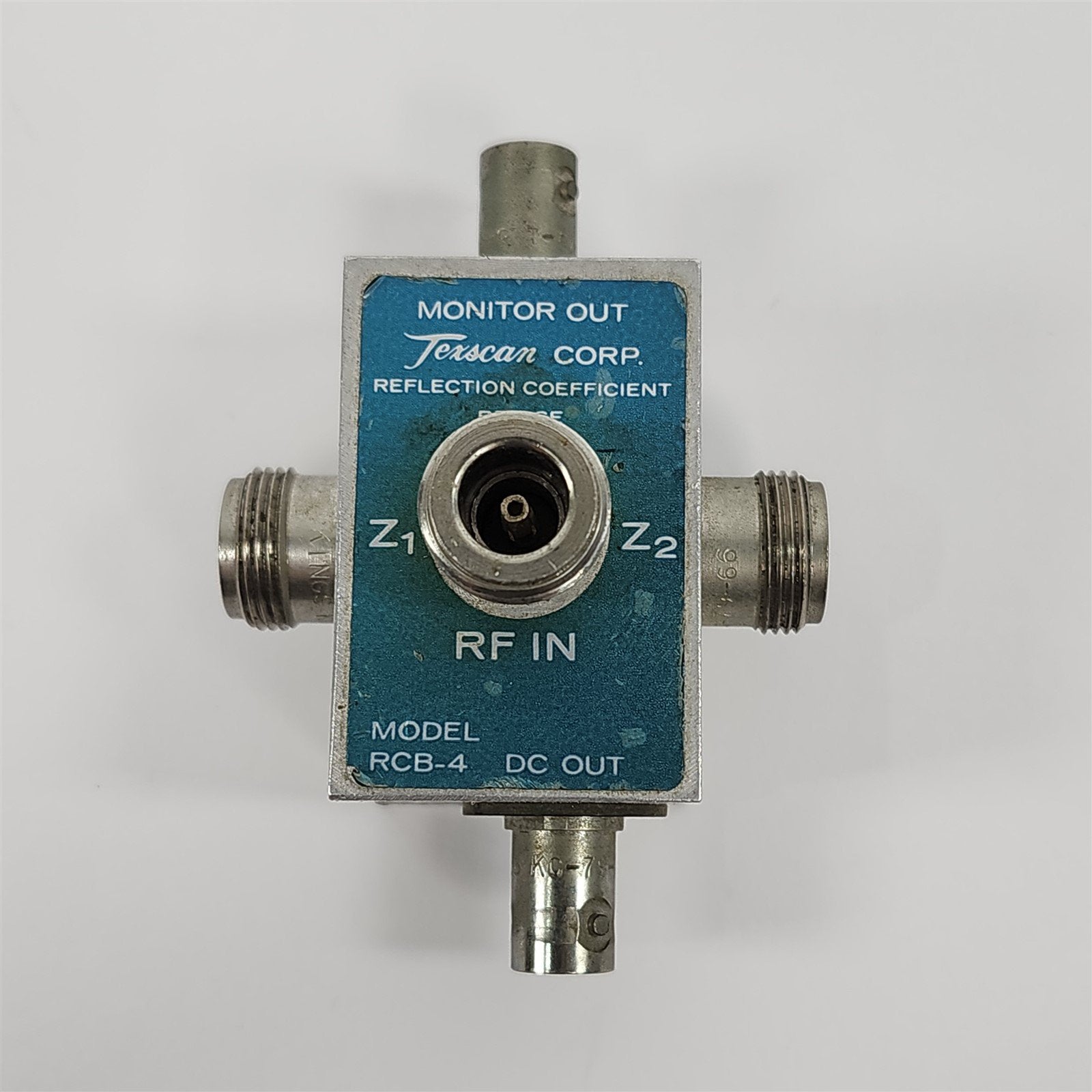

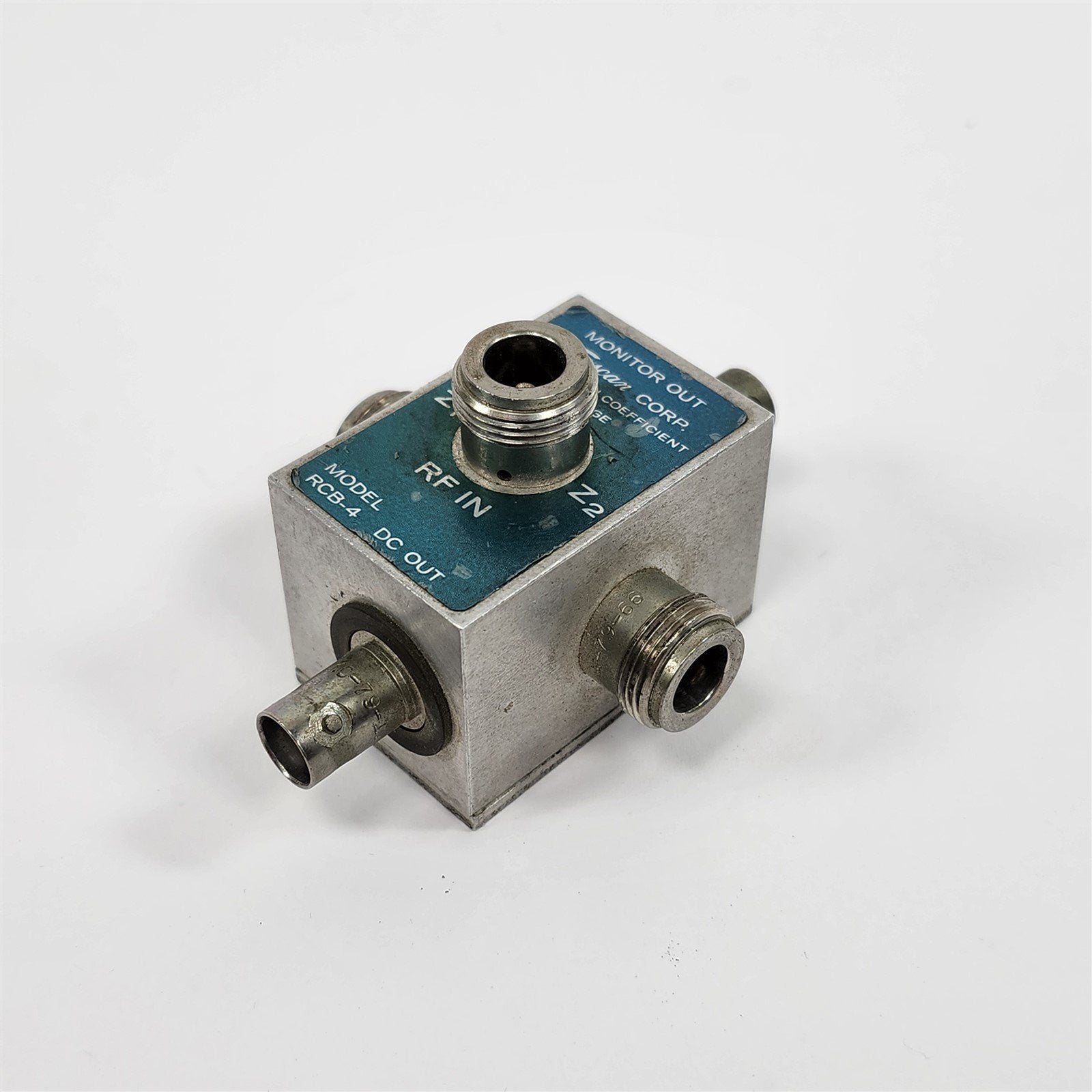

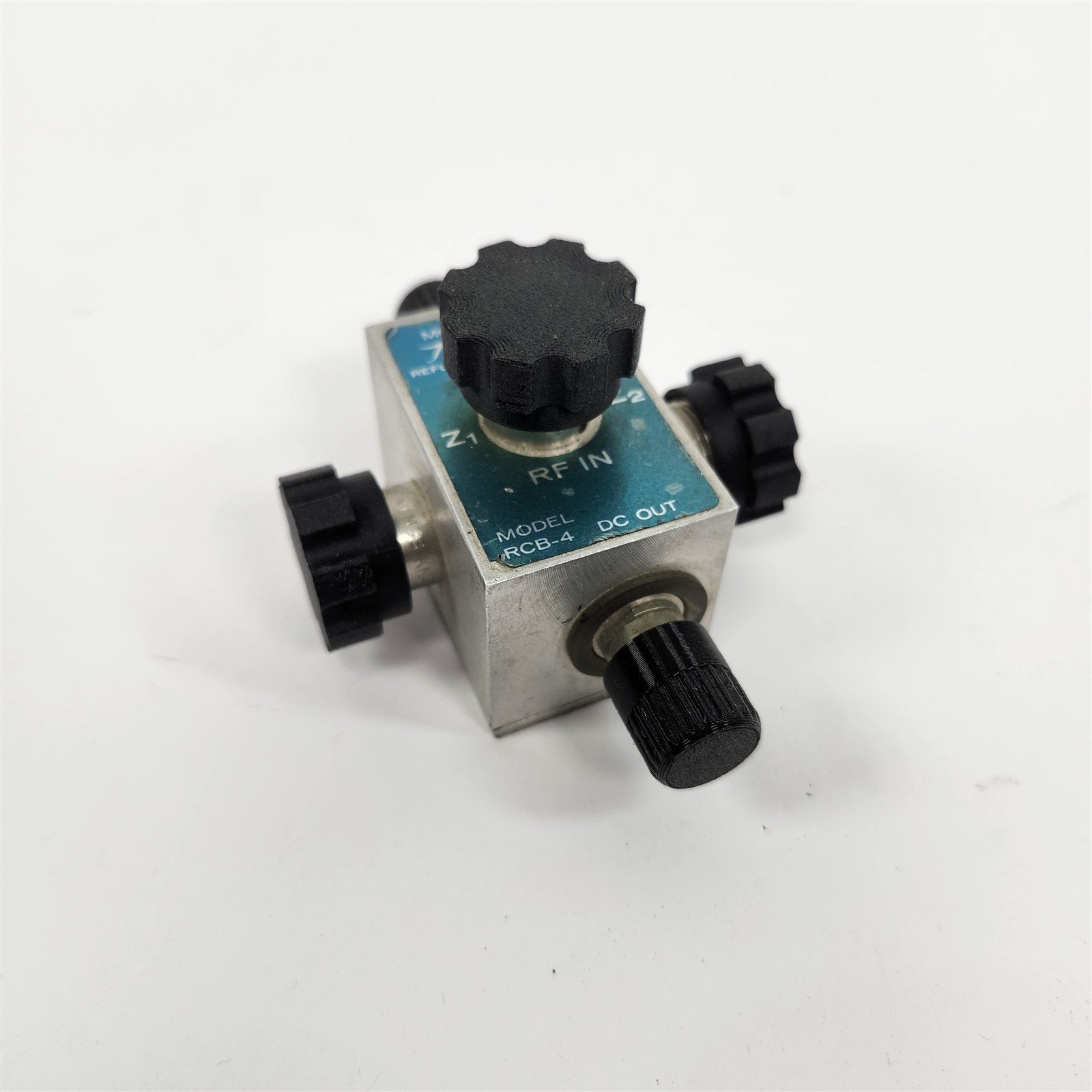

Texscan RCB-4 Reflection Coefficient Bridge (50 Ohm) The Texscan RCB-4 is a passive Reflection Coefficient Bridge (also known as a Return Loss Bridge) used for testing Radio Frequency (RF) equipment. It is designed to measure how well an antenna, cable, or filter is matched to a 50 Ohm impedance. Function: It separates incident (forward) signals from reflected (reverse) signals. When used with a Signal Generator and a Spectrum Analyzer (or Oscilloscope), it allows you to visualize the "return loss" or VSWR (Voltage Standing Wave Ratio) of a device. Frequency Range: Typically broadband, covering approximately 0.5 MHz to 1000 MHz (1 GHz). Impedance: 50 Ohm. Connectors: RF IN, Z1, Z2: Type-N[f]; Monitor Out, DC Out: BNC.

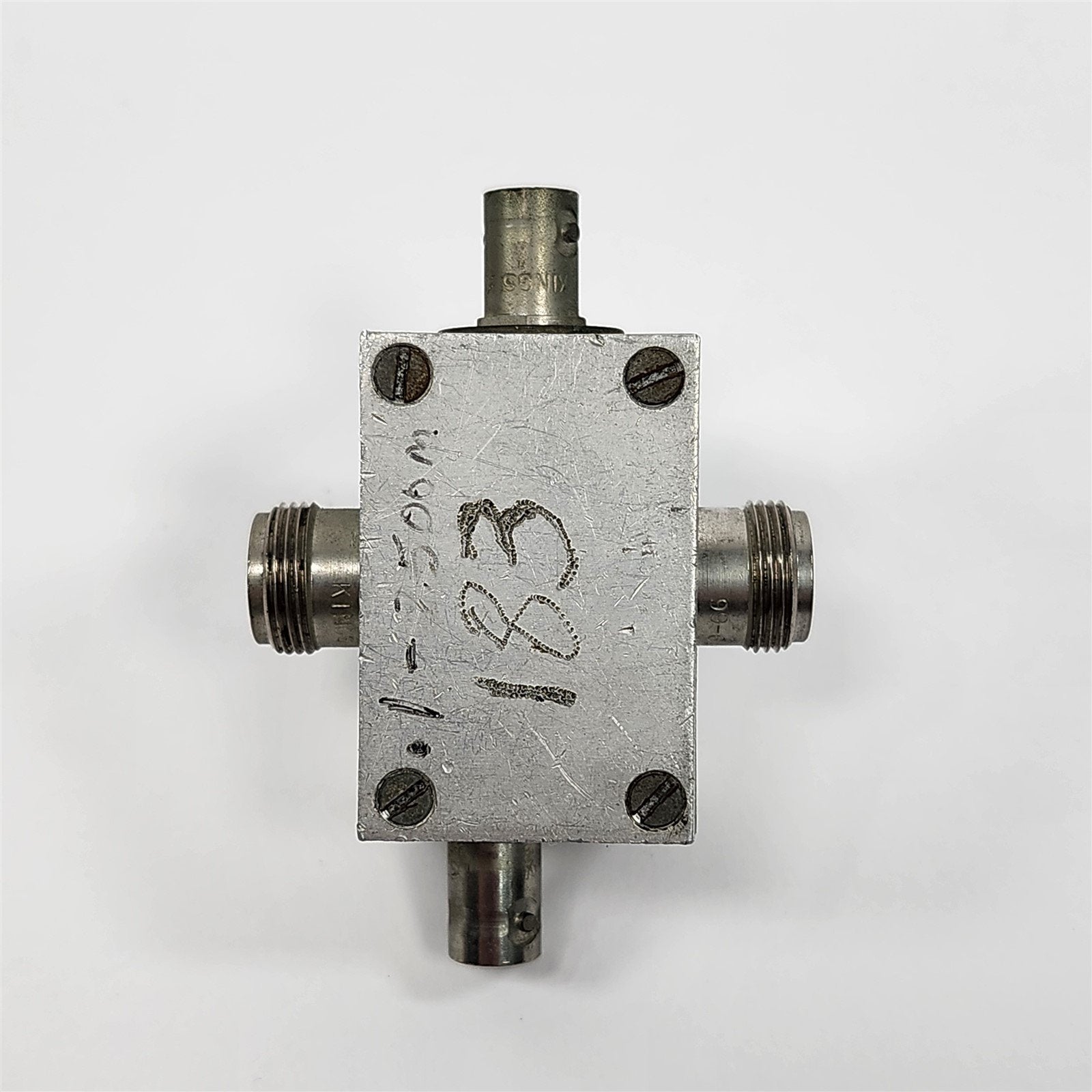

Previously used condition. Some engraving on the back.
