Vintage Gould 2150SDAQL66 Thermal Time Delay Relay 120V 0.6-60 Sec Slow Drop Out

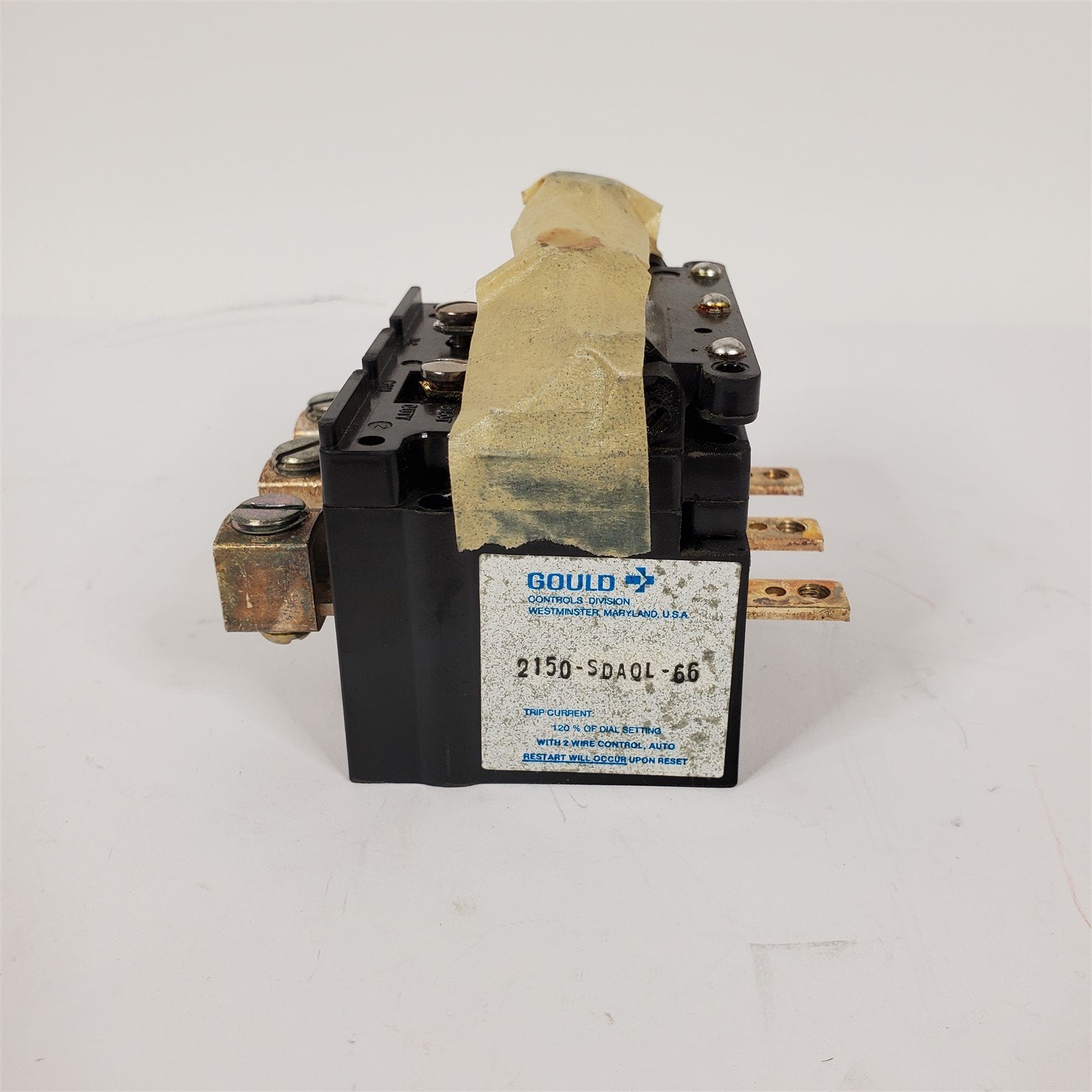

Up for sale is a vintage industrial thermal time delay relay, model 2150SDAQL66, from Gould (later ITE / Siemens). The original packaging identifies this as a "Thermal Relay."

This is a high-quality, heavy-duty component designed for industrial control applications. It uses a robust thermal mechanism (a heating element and bimetallic strip) to achieve a consistent and adjustable time delay. This specific model is a "Slow-Drop-Out" (SDA) type, meaning it is designed to keep the contacts energized for a set duration after the coil power has been removed.

Excellent previously used condition.

Key Specifications:

  • Manufacturer: Gould / ITE
  • Model Number: 2150SDAQL66
  • Type: Type 215 Thermal Time Delay Relay
  • Mechanism: Thermal (Heating Element & Bimetallic Strip)
  • Function: SDA (Slow-Drop-Out / Delay on De-energization)
  • Coil Voltage: 120V
  • Timing Range: Adjustable from 0.6 to 60 Seconds
  • Contact Configuration: 3PST-NO (Three Pole, Single Throw, Normally Open).
  • Mounting: Panel / Flange Mount

Potential Applications:

This type of thermal timing relay is used in industrial automation and machine control circuits where a process needs to continue for a short time after a stop signal, such as:

  • Motor braking circuits
  • Conveyor sequencing
  • Lubrication or cooling cycles after machine shutdown
  • General industrial control logic
