Vtg RF Power Meter from AGM-86B Cruise Missile System DMIL-A 6625-00-525-3559
Regular price
$400.00
Sale price
$400.00
Sale
Unit price
/per
Only 1 left in stock.
Adding product to your cart
This is a Rare collectible from the AGM-86B Air Launched Cruise Missile (ALCM) System.
We are not sure if this is from a missile or support equipment. Please note this has a DMIL classification of "A", which is "No-USML/Non-CCLI – No DEMIL or DoD TSC required"

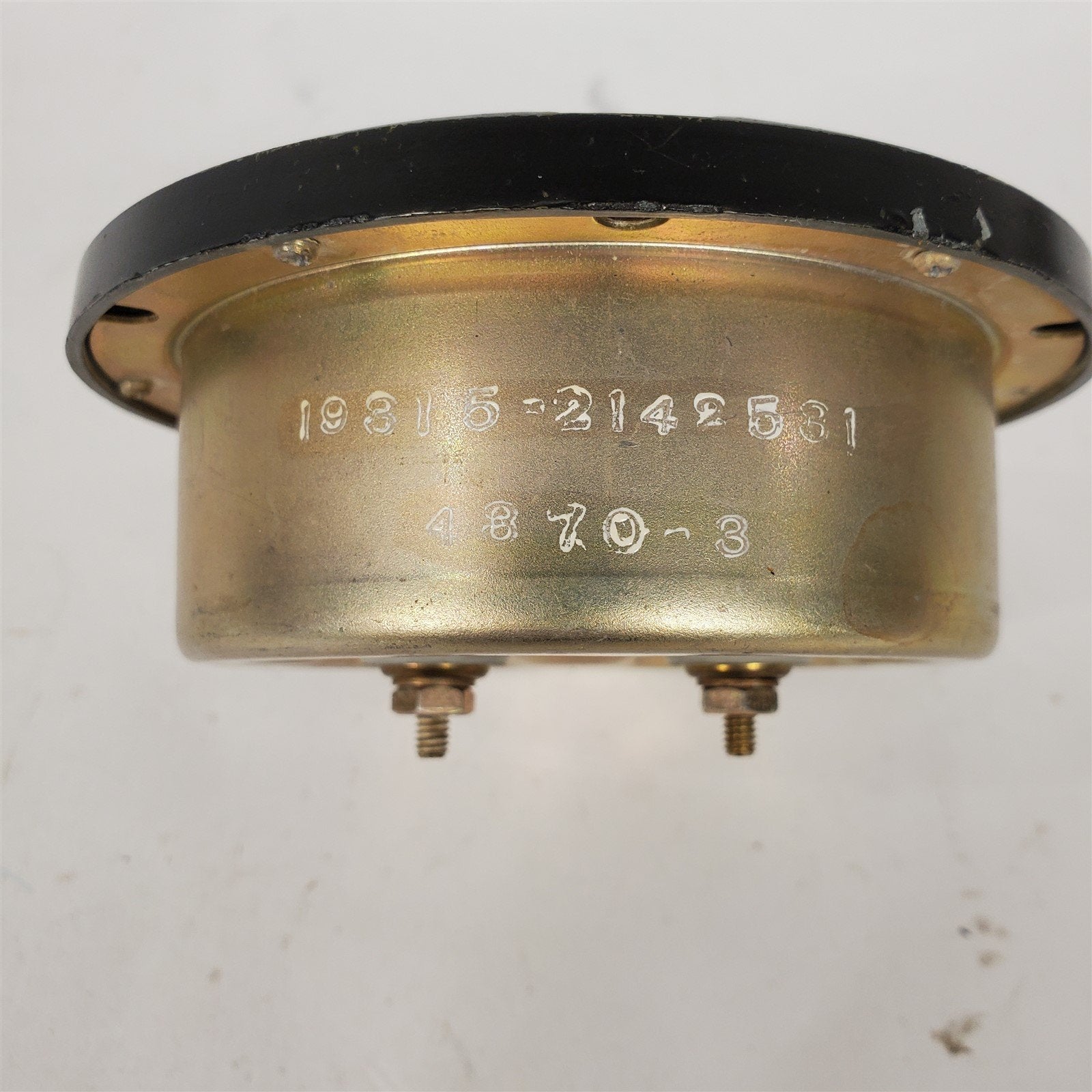

NSIN: 6625-00-525-3559 Manufacturer: Honeywell International Defense Avionics Part number stamped on part: 19315-2142531 Cage code: 19315 (Honeywell international Defense Avionics) Part number on record:2142531-1
Possible Date Code: 7741 Possible Date Code 9 77
Previously used condition with scuffs and scratches from use, storage and handling.
Specifications from NSIN records:
Circuit Current for Which Designed: DC
Dielectric Withstanding Voltage in Volts: 3000
Overall Length: 2.850 inches maximum
Mounting Stud Length: 0.500 inches nominal
Overall Diameter 4.600 inches maximum
Environmental Protection: Shock resistant and vibration resistant and watertight
Mounting Bolt Circle Diameter: 4.125 inches nominal

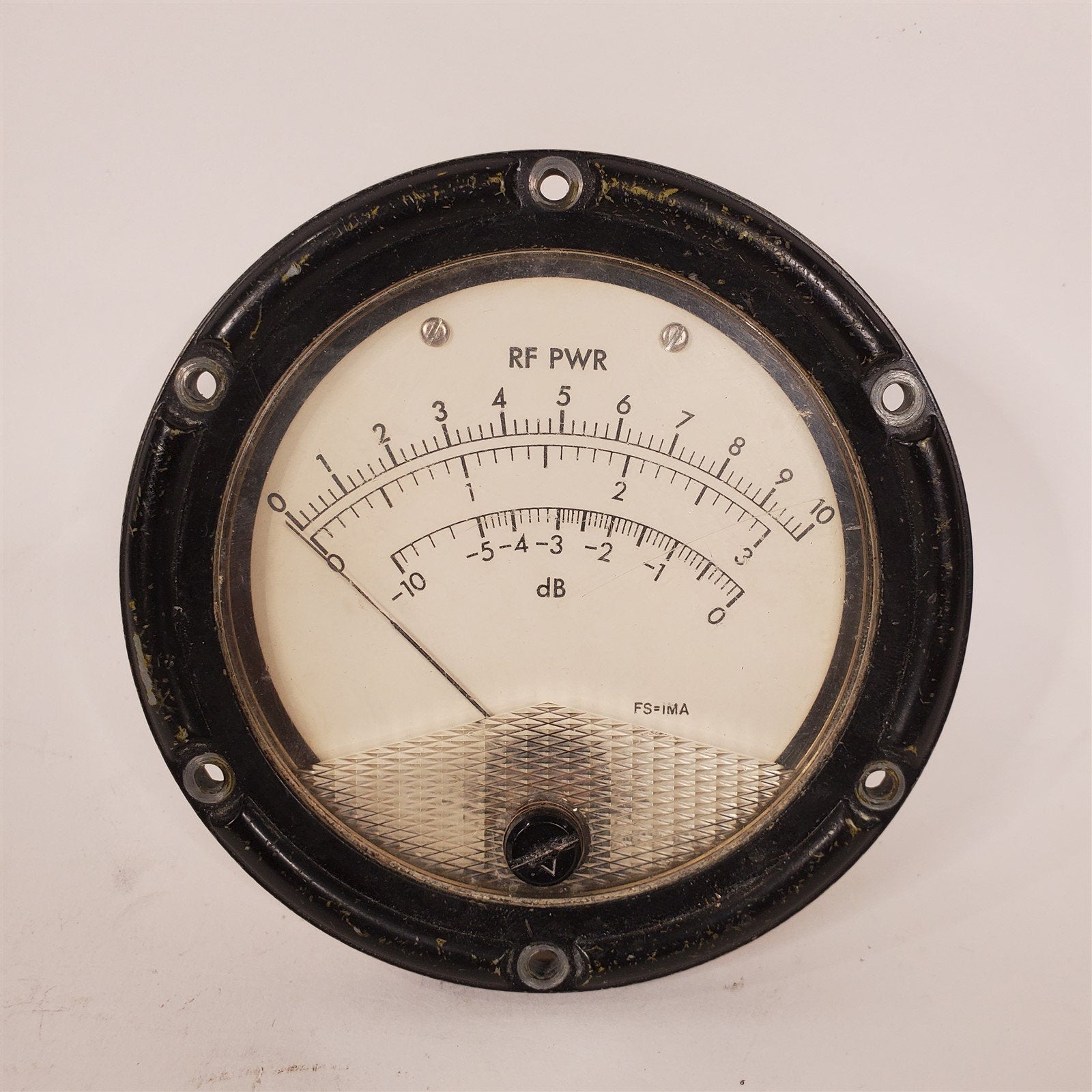

Indicator Type: Dial W/pointer
Installation Design: Panel
Mounting Arrangement Style: Six hole/stud bolt circle
Dial Scale Marking Color: Black single indicator all ranges
Accuracy in Percent: -2.0 to 2.0 at full scale single indicator all ranges
Meter Depth Behind Mounting Flange: 2.450 inches maximum
Meter Body Diameter Behind Mounting Flange: 3.760 inches maximum
Movement Type: Moving coil, permanent magnet
Background Color: White single indicator all ranges
Pointer Color: Black single indicator all ranges
Power Source: External
Measurement Range: +0.0 to 10.0 watts single indicator 3RD range
Measurement Range: +0.0 to 3.0 watts single indicator 2ND range
Measurement Range: -10.0 to 0.0 decibels single indicator 1ST range
Mounting Stud Diameter 0.138 inches nominal
Scale Selection Method: Terminal
Features Provided: Zero adjuster
Movement Suspension Method: Jewel pivot base
Circuit Attachment Method and Quantity: 2 solder lug and 2 threaded stud
Special Features: Ruggedized
Special Markings: Watts scales marked rf power
Material: Steel
Nuclear Hardness Critical Feature: Nonhardened
Surface Treatment: Enamel semigloss
Style Designator: Round flush mtg
FSC Application Data: Test set, elect. equip.
We typically ship within one business day! International buyers are responsible for any customs/duty fees.
Most of the parts we sell are vintage New Old Stock parts.
We use high quality shipping supplies and biodegradable peanuts to make sure your parts arrive safely.
NOS (New Old Stock) parts are Genuine Factory Original parts. NORS (New Old Replacement Stock) parts are original vintage aftermarket parts. NOS and NORS does not necessarily mean the parts are perfect. Manufacturing technology was not the same as it is today so imperfections should be expected. Also, these parts may have been in storage for 40-80 years and could be dusty, greasy or have surface rust, spider webs, etc.
