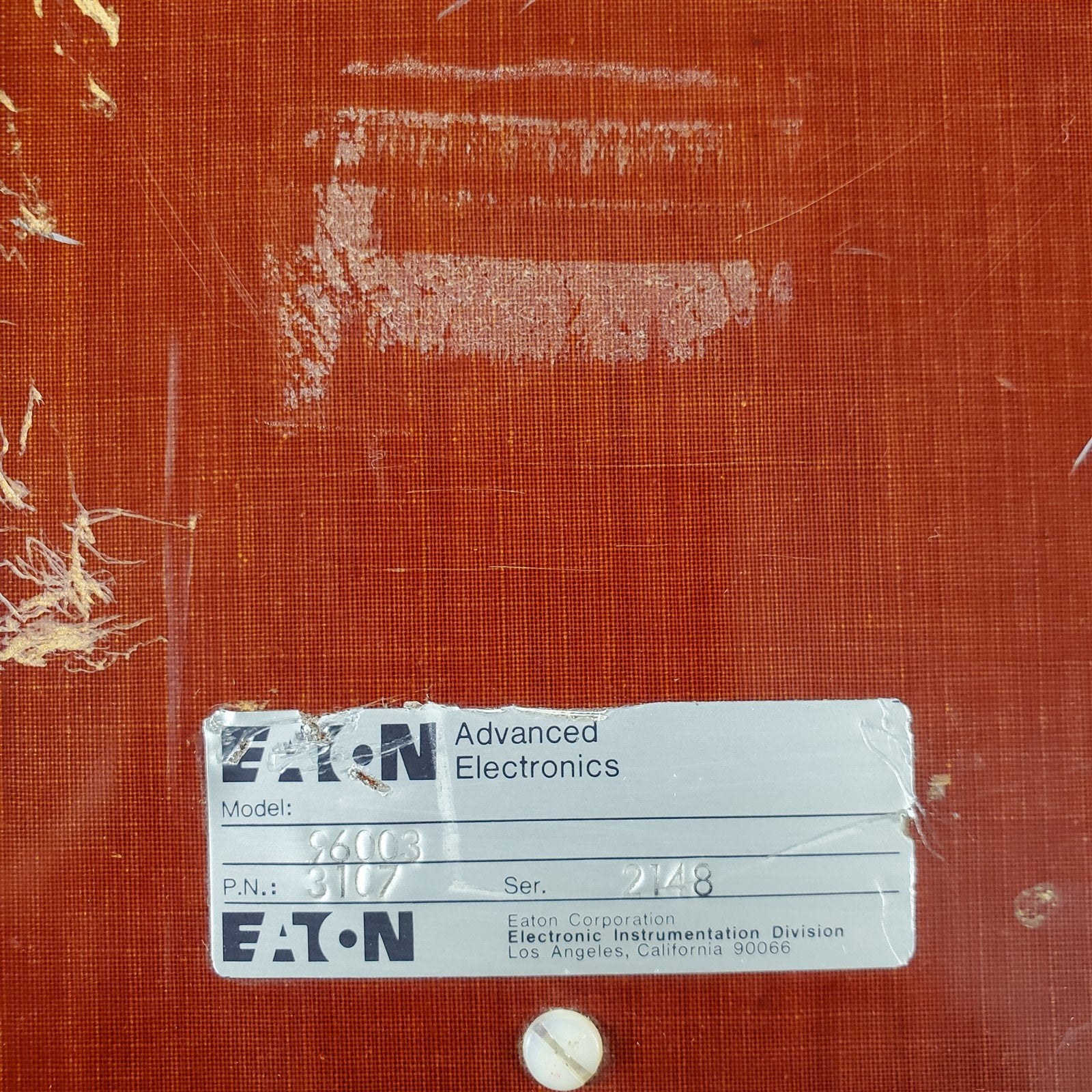

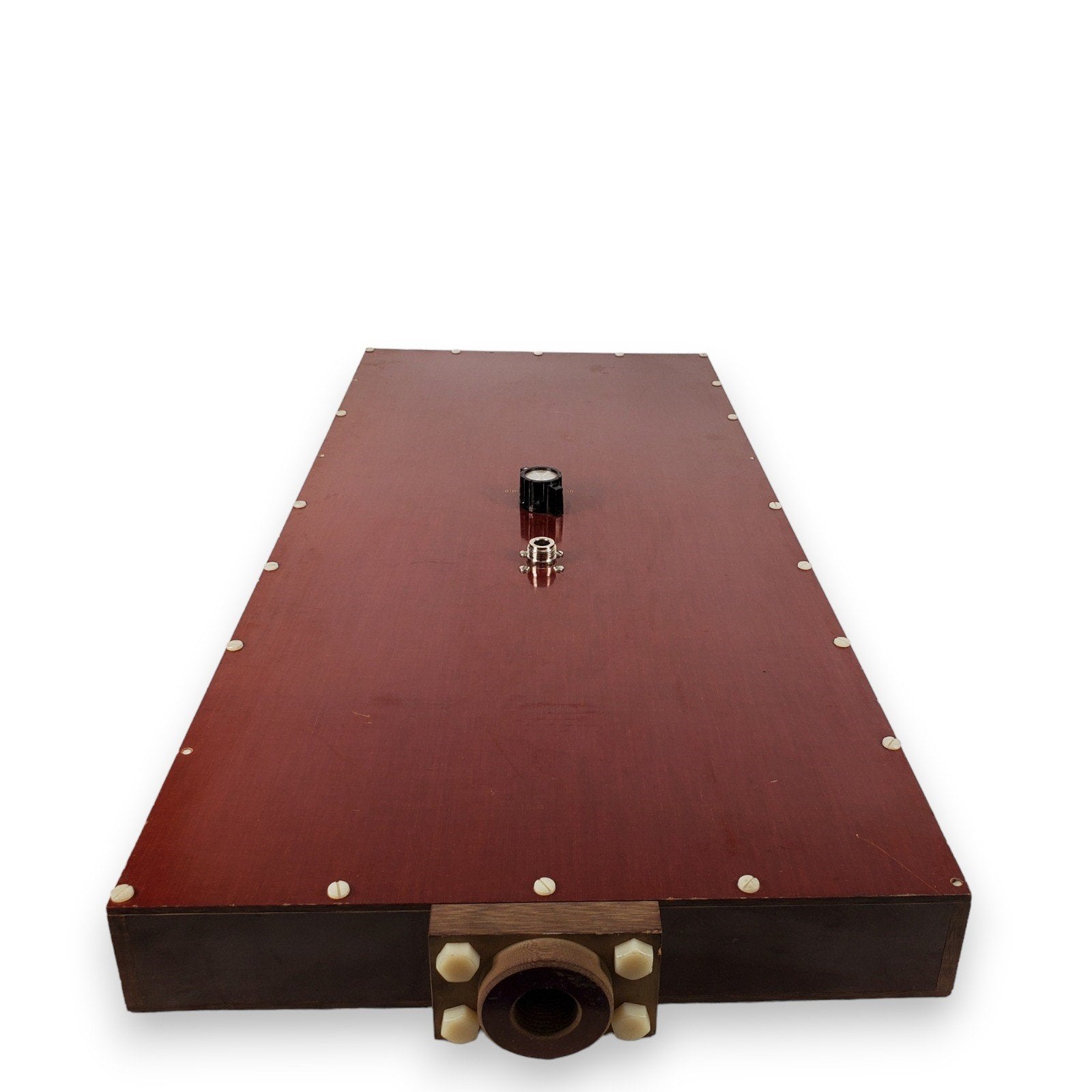

This listing is for a Rare and Hard to Find Eaton 96003 Parallel Element Antenna - We believe this is the Mil-std version of the EMCO 3107B. Electrical Band One 10kHz-5MHz Band Two 5MHz-30MHz Input Impedance 50 Ohms Maximum Power 500 Watts Connector Type N (f) Mechanical Length 184cm (72.5") Height 5cm (2") Width Element Separation 61cm (24") Weight 5kg (12lbs) Case Dimensions 68cm x 40cm x 38cm Case Weight 24.5kg
"The Eaton Model 96003 Antenna is a broadband, parallel element antenna designed to generate large electric fields over the frequency range 10 KHz to 30 MHz for susceptibility testing in accordance with Military and DoD specifications. It is ideally suited for qualification susceptibility testing to MIL-STD-462 (RS03 and RS04) requirements. Excellent wideband design allows operation over the entire 10 KHz to 30 MHz frequency in two bands. The electric field intensity between the elements is approximately 200 volts/meter when the inputs are 67 volts for the 10 KHz to 1 MHz range and 45 volts for the 1 MHz to 30 MHz range. The Model 96003 is constructed of lightweight materials for ease of handling. Clear plastic insulation on the antenna elements (Not Included) protects personnel from accidental burn or shock during operation at high intensity levels.
Previous owners notes:

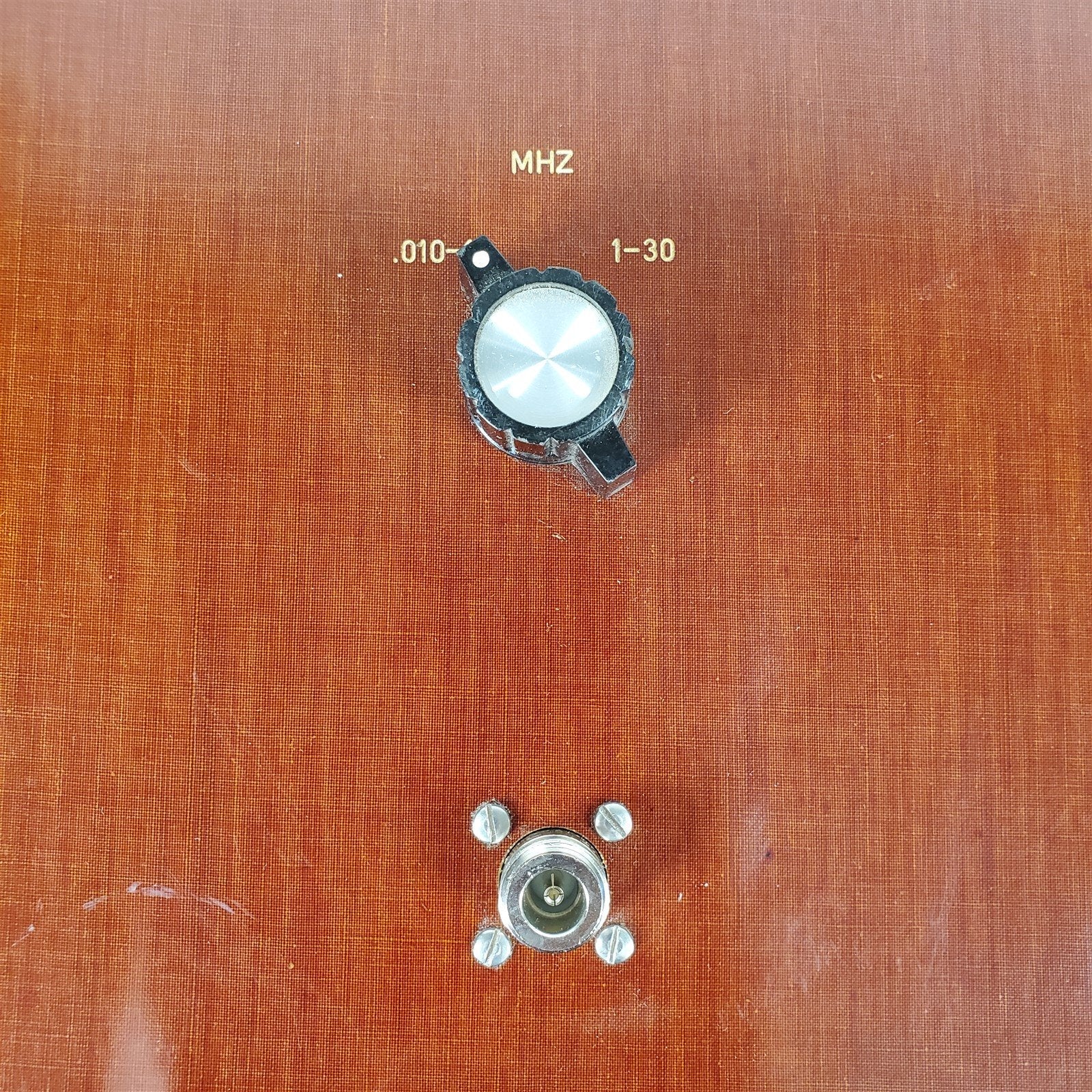

EATON ANTENNA 10KHZ-1MHZ/1-30MHZ SWITCHABLE
TAKES 500 WATTS, THE SAME AS EMCO 3107, ELEMENTS ARE MISSING BUT
EASY TO MAKE. LOOKED INSIDE, NO BURNT PARTS.
This unit comes from the estate of a Ham Radio operator who collected many various HF Radios and est Equipment over the years.
We have thousands of items to sell from this recently purchased estate - many were acquired from EG&G and the Nevada Test Site, years ago.
Previously used condition - Scuffs and scratches from many years of use and handling. Does not have the elements, but the previous owner notes they should be easy to make. Some of the Mylar screws are broken off.
